Più R alto
surface shiny chrome
lighting effect S 100
small flat lens + soft edge + cone glass

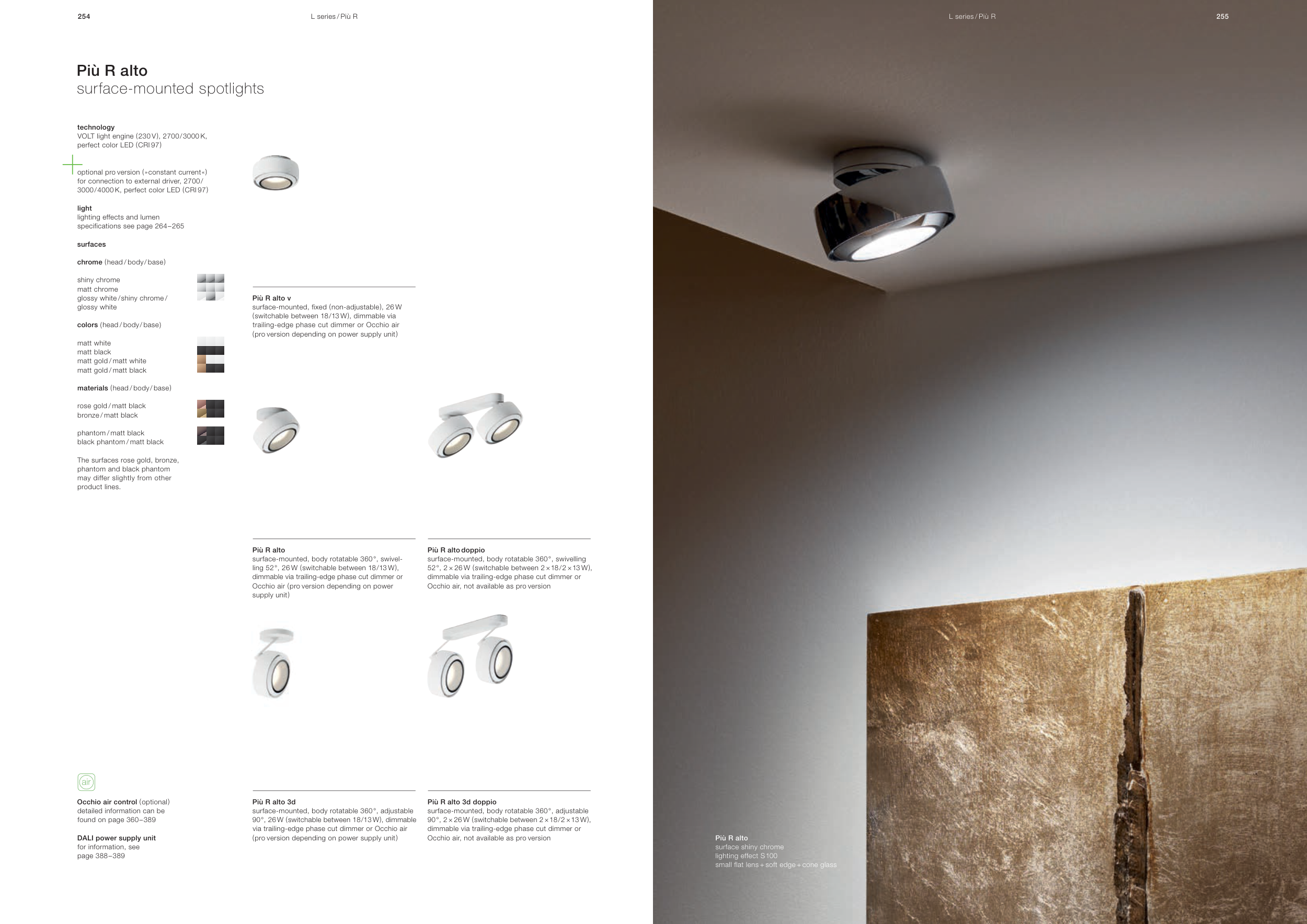

Più R alto
surface-mounted spotlights
Più R alto v
surface-mounted, fixed ( non-adjustable ), 26 W
( switchable between 18 /13 W ), dimmable via
trailing-edge phase cut dimmer or Occhio air
( pro version depending on power supply unit )
Più R alto
surface-mounted, body rotatable 360 °, swivel-
ling 52 °, 26 W ( switchable between 18 /13 W ),
dimmable via trailing-edge phase cut dimmer or
Occhio air ( pro version depending on power
supply unit )
Più R alto 3d
surface-mounted, body rotatable 360 °, adjustable
90 °, 26 W ( switchable between 18 /13 W ), dimmable
via trailing-edge phase cut dimmer or Occhio air
( pro version depending on power supply unit )
Più R alto 3d doppio
surface-mounted, body rotatable 360 °, adjustable
90 °, 2 × 26 W ( switchable between 2 × 18 / 2 × 13 W ),
dimmable via trailing-edge phase cut dimmer or
Occhio air, not available as pro version
Più R alto doppio
surface-mounted, body rotatable 360 °, swivelling
52 °, 2 × 26 W ( switchable between 2 × 18 / 2 × 13 W ),
dimmable via trailing-edge phase cut dimmer or
Occhio air, not available as pro version
technology
VOLT light engine ( 230 V ), 2700 / 3000 K,
perfect color LED ( CRI 97 )
optional pro version ( » constant current « )
for connection to external driver, 2700 /
3000 / 4000 K, perfect color LED ( CRI 97 )
light
lighting effects and lumen
specifications see page 264 – 265
surfaces
chrome ( head / body / base )
shiny chrome
matt chrome
glossy white / shiny chrome /
glossy white
colors ( head / body / base )
matt white
matt black
matt gold / matt white
matt gold / matt black
materials ( head / body / base )
rose gold / matt black
bronze / matt black
phantom / matt black
black phantom / matt black
The surfaces rose gold, bronze,
phantom and black phantom
may differ slightly from other
product lines.
Occhio air control ( optional )
detailed information can be
found on page 360 – 389
DALI power supply unit
for information, see
page 388 – 389
L series / Più R
255
L series / Più R
254
