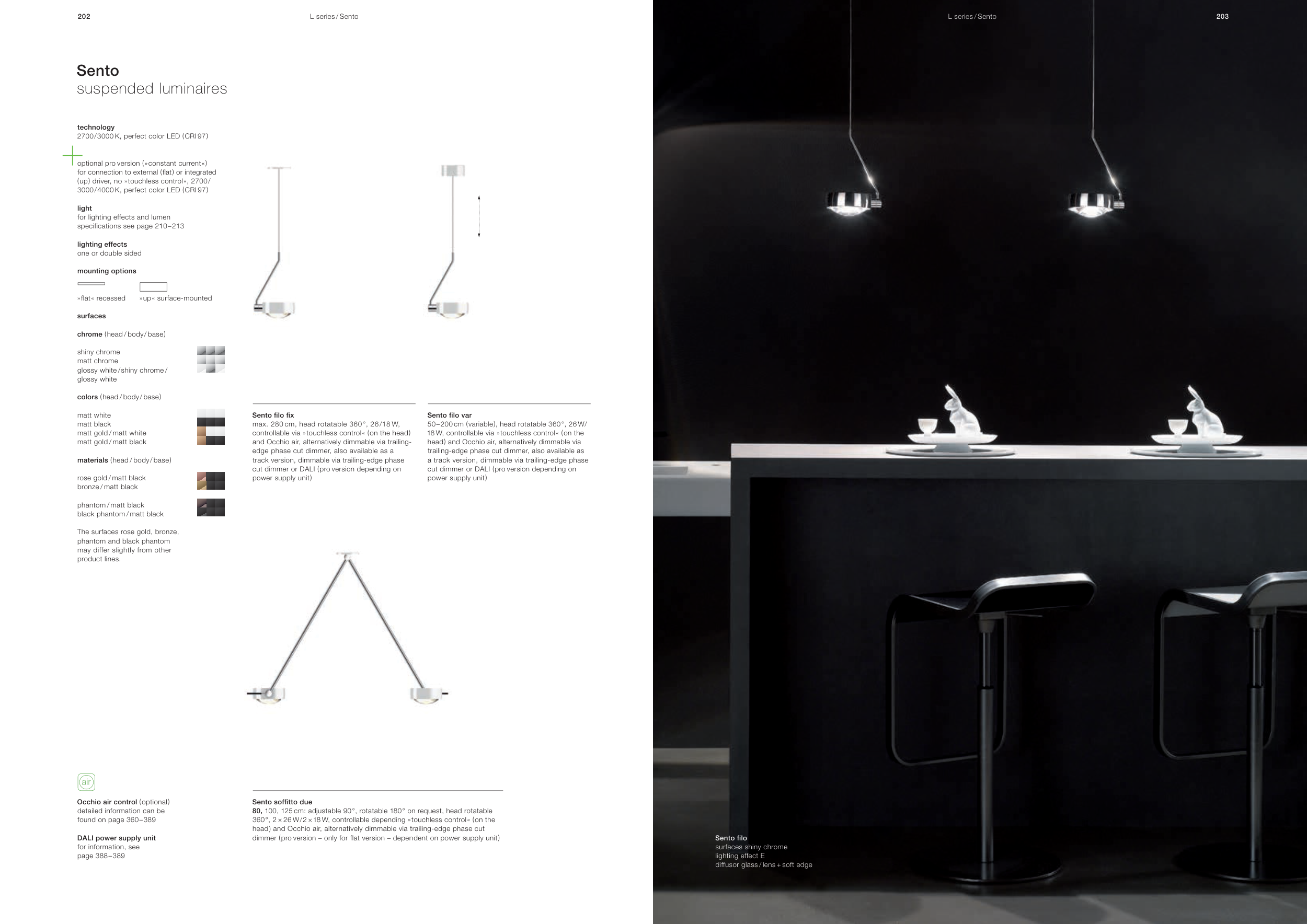

Sento
suspended luminaires
Sento filo fix
max. 280 cm, head rotatable 360 °, 26 /18 W,
controllable via » touchless control « ( on the head )
and Occhio air, alternatively dimmable via trailing-
edge phase cut dimmer, also available as a
track version, dimmable via trailing-edge phase
cut dimmer or DALI ( pro version depending on
power supply unit )
Sento filo var
50 – 200 cm ( variable ), head rotatable 360 °, 26 W/
18 W, controllable via » touchless control « ( on the
head ) and Occhio air, alternatively dimmable via
trailing-edge phase cut dimmer, also available as
a track version, dimmable via trailing-edge phase
cut dimmer or DALI ( pro version depending on
power supply unit )
Sento soffitto due
80, 100, 125 cm: adjustable 90 °, rotatable 180 ° on request, head rotatable
360 °, 2 × 26 W / 2 × 18 W, controllable depending » touchless control « ( on the
head ) and Occhio air, alternatively dimmable via trailing-edge phase cut
dimmer ( pro version – only for flat version – depen dent on power supply unit )
Sento filo
surfaces shiny chrome
lighting effect E
diffusor glass / lens + soft edge
technology
2700 / 3000 K, perfect color LED ( CRI 97 )
optional pro version ( » constant current « )
for connection to external ( flat ) or integrated
( up ) driver, no » touchless control «, 2700 /
3000 / 4000 K, perfect color LED ( CRI 97 )
light
for lighting effects and lumen
specifications see page 210 – 213
lighting effects
one or double sided
mounting options
» flat « recessed
» up « surface-mounted
surfaces
chrome ( head / body / base )
shiny chrome
matt chrome
glossy white / shiny chrome /
glossy white
colors ( head / body / base )
matt white
matt black
matt gold / matt white
matt gold / matt black
materials ( head / body / base )
rose gold / matt black
bronze / matt black
phantom / matt black
black phantom / matt black
The surfaces rose gold, bronze,
phantom and black phantom
may differ slightly from other
product lines.
DALI power supply unit
for information, see
page 388 – 389
Occhio air control ( optional )
detailed information can be
found on page 360 – 389
L series / Sento
203
L series / Sento
202
