technology
2700 / 3000 K, perfect color LED ( CRI 97 )
optional pro version ( » constant current « )
for connection to external ( flat ) or integrated
( up ) driver, no » touchless control «, 2700 /
3000 / 4000 K, perfect color LED ( CRI 97 )
light
for lighting effects and lumen
specifications see page 210 – 213
lighting effects
one or double sided
mounting options
» flat « recessed
» up « surface-mounted
surfaces
chrome ( head / body / base )
shiny chrome
matt chrome
glossy white / shiny chrome /
glossy white
colors ( head / body / base )
matt white
matt black
matt gold / matt white
matt gold / matt black
materials ( head / body / base )
rose gold / matt black
bronze / matt black
phantom / matt black
black phantom / matt black
The surfaces rose gold, bronze,
phantom and black phantom
may differ slightly from other
product lines.

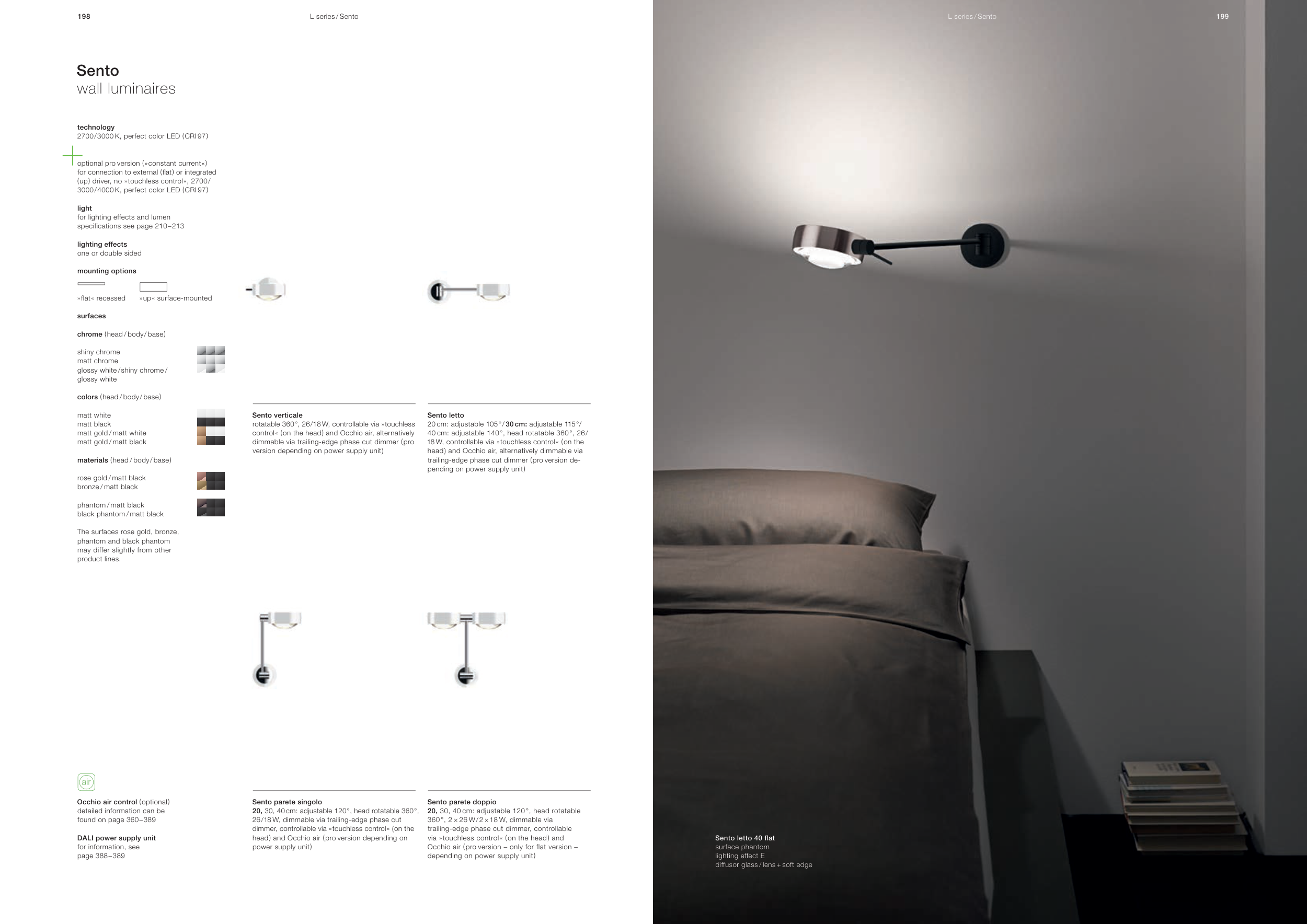

Sento letto 40 flat
surface phantom
lighting effect E
diffusor glass / lens + soft edge
DALI power supply unit
for information, see
page 388 – 389
Sento
wall luminaires
Sento verticale
rotatable 360 °, 26 /18 W, controllable via » touchless
control « ( on the head ) and Occhio air, alternatively
dimmable via trailing-edge phase cut dimmer ( pro
version depending on power supply unit )
Sento letto
20 cm: adjustable 105 ° / 30 cm: adjustable 115 °/
40 cm: adjustable 140 °, head rotatable 360 °, 26 /
18 W, controllable via » touchless control « ( on the
head ) and Occhio air, alternatively dimmable via
trailing-edge phase cut dimmer ( pro version de-
pending on power supply unit )
Sento parete singolo
20, 30, 40 cm: adjustable 120 °, head rotatable 360 °,
26 /18 W, dimmable via trailing-edge phase cut
dimmer, controllable via » touchless control « ( on the
head ) and Occhio air ( pro version depending on
power supply unit )
Sento parete doppio
20, 30, 40 cm: adjustable 120 °, head rotatable
360 °, 2 × 26 W / 2 × 18 W, dimmable via
trailing-edge phase cut dimmer, controllable
via » touchless control « ( on the head ) and
Occhio air ( pro version – only for flat version –
depending on power supply unit )
Occhio air control ( optional )
detailed information can be
found on page 360 – 389
L series / Sento
199
L series / Sento
198
