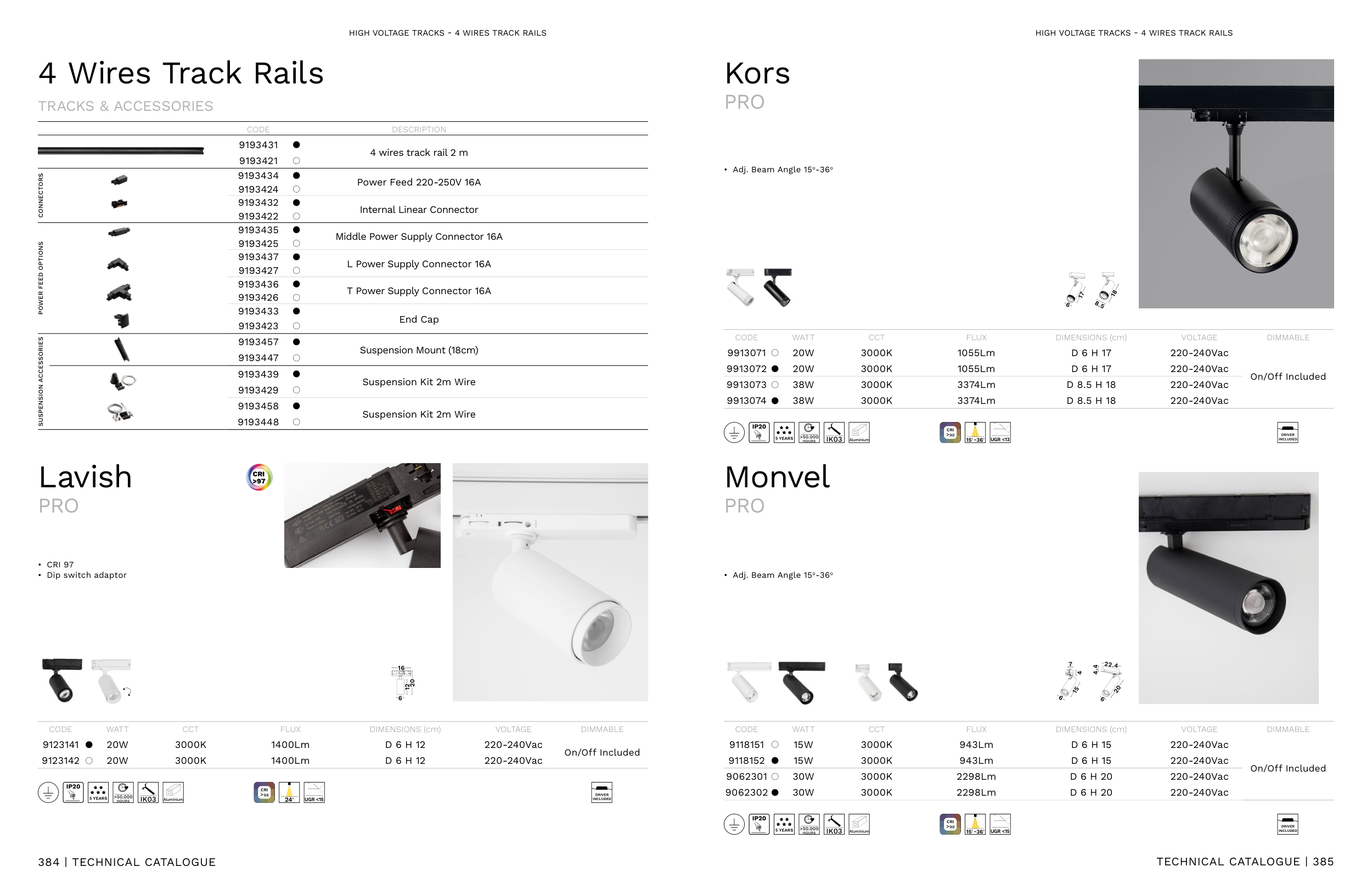

HIGH VOLTAGE TRACKS - 4 WIRES TRACK RAILS
TECHNICAL CATALOGUE | 385
384 | TECHNICAL CATALOGUE
HIGH VOLTAGE TRACKS - 4 WIRES TRACK RAILS
POWER FEED OPTIONS
4 Wires Track Rails
CODE
DESCRIPTION
9193431
4 wires track rail 2 m
9193421
9193434
Power Feed 220-250V 16A
9193424
9193432
Internal Linear Connector
9193422
9193435
Middle Power Supply Connector 16A
9193425
9193437
L Power Supply Connector 16A
9193427
9193436
T Power Supply Connector 16A
9193426
9193433
End Cap
9193423
9193457
Suspension Mount (18cm)
9193447
9193439
Suspension Kit 2m Wire
9193429
9193458
Suspension Kit 2m Wire
9193448
TRACKS & ACCESSORIES
CONNECTORS
SUSPENSION ACCESSORIES
18
8.5
6
17
Kors
PRO
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9913071
20W
3000K
1055Lm
D 6 H 17
220-240Vac
On/Off Included
9913072
20W
3000K
1055Lm
D 6 H 17
220-240Vac
9913073
38W
3000K
3374Lm
D 8.5 H 18
220-240Vac
9913074
38W
3000K
3374Lm
D 8.5 H 18
220-240Vac
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>90 15
O -36
O UGR <13
DRIVER
INCLUDED
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9118151
15W
3000K
943Lm
D 6 H 15
220-240Vac
On/Off Included
9118152
15W
3000K
943Lm
D 6 H 15
220-240Vac
9062301
30W
3000K
2298Lm
D 6 H 20
220-240Vac
9062302
30W
3000K
2298Lm
D 6 H 20
220-240Vac
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>90 15
O -36
O UGR <15
DRIVER
INCLUDED
Monvel
PRO
7
6
15
4
22.4
6
20
4.4
• Adj. Beam Angle 15o-36o
• Adj. Beam Angle 15o-36o
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9123141
20W
3000K
1400Lm
D 6 H 12
220-240Vac
On/Off Included
9123142
20W
3000K
1400Lm
D 6 H 12
220-240Vac
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>98
24
O UGR <15
DRIVER
INCLUDED
Lavish
PRO
16
20
6
12
CRI
>97
• CRI 97
• Dip switch adaptor
