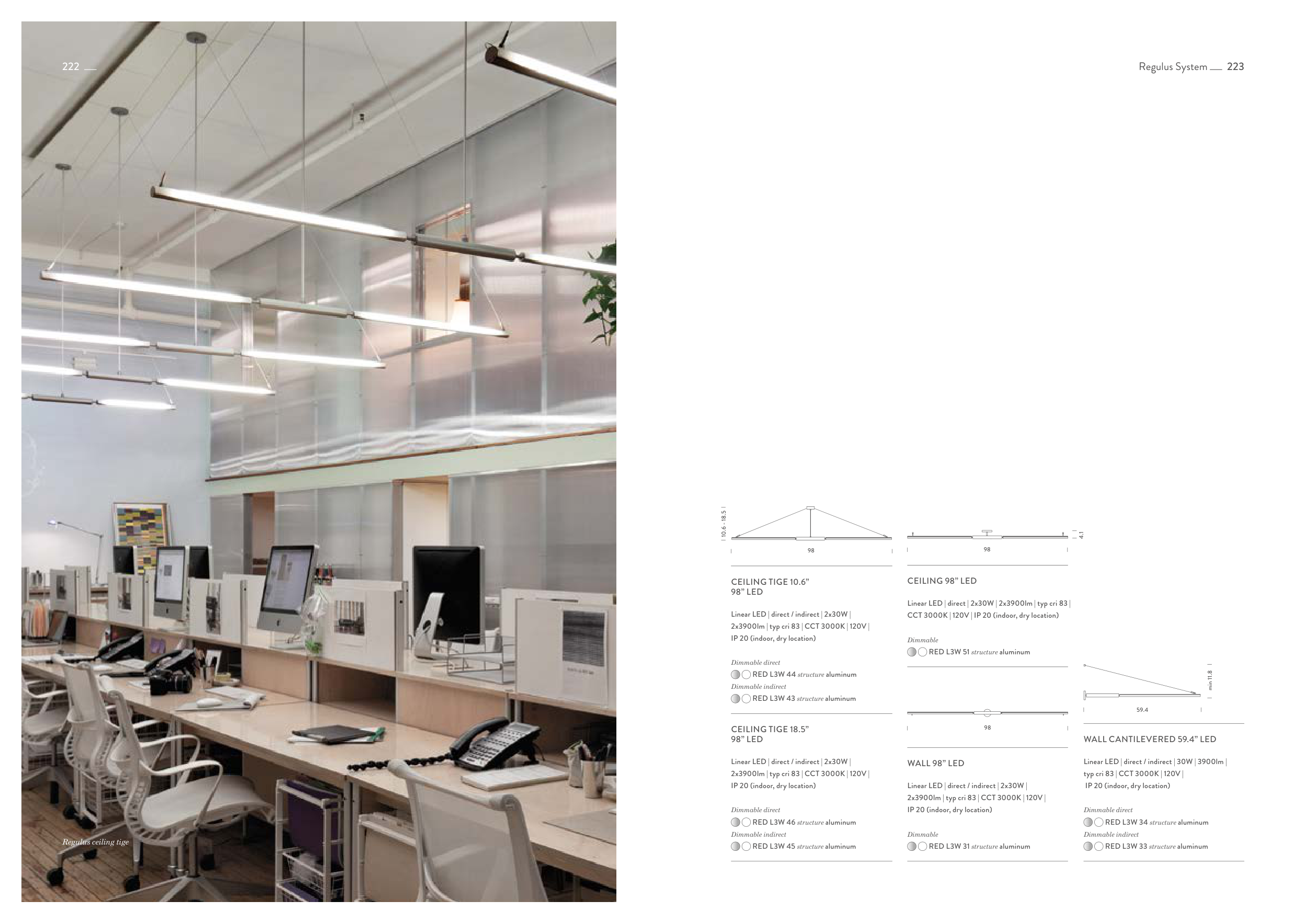

Regulus ceiling tige
Regulus System
CEILING TIGE 18.5”
98” LED
Linear LED | direct / indirect | 2x30W |
2x3900lm | typ cri 83 | CCT 3000K | 120V |
IP 20 (indoor, dry location)
Dimmable direct
RED L3W 46 structure aluminum
Dimmable indirect
RED L3W 45 structure aluminum
CEILING TIGE 10.6”
98” LED
Linear LED | direct / indirect | 2x30W |
2x3900lm | typ cri 83 | CCT 3000K | 120V |
IP 20 (indoor, dry location)
Dimmable direct
RED L3W 44 structure aluminum
Dimmable indirect
RED L3W 43 structure aluminum
10.6 - 18.5
98
WALL CANTILEVERED 59.4” LED
Linear LED | direct / indirect | 30W | 3900lm |
typ cri 83 | CCT 3000K | 120V |
IP 20 (indoor, dry location)
Dimmable direct
RED L3W 34 structure aluminum
Dimmable indirect
RED L3W 33 structure aluminum
98
59.4
min 11.8
WALL 98” LED
Linear LED | direct / indirect | 2x30W |
2x3900lm | typ cri 83 | CCT 3000K | 120V |
IP 20 (indoor, dry location)
Dimmable
RED L3W 31 structure aluminum
CEILING 98” LED
Linear LED | direct | 2x30W | 2x3900lm | typ cri 83 |
CCT 3000K | 120V | IP 20 (indoor, dry location)
Dimmable
RED L3W 51 structure aluminum
4.1
98
223
222
