076

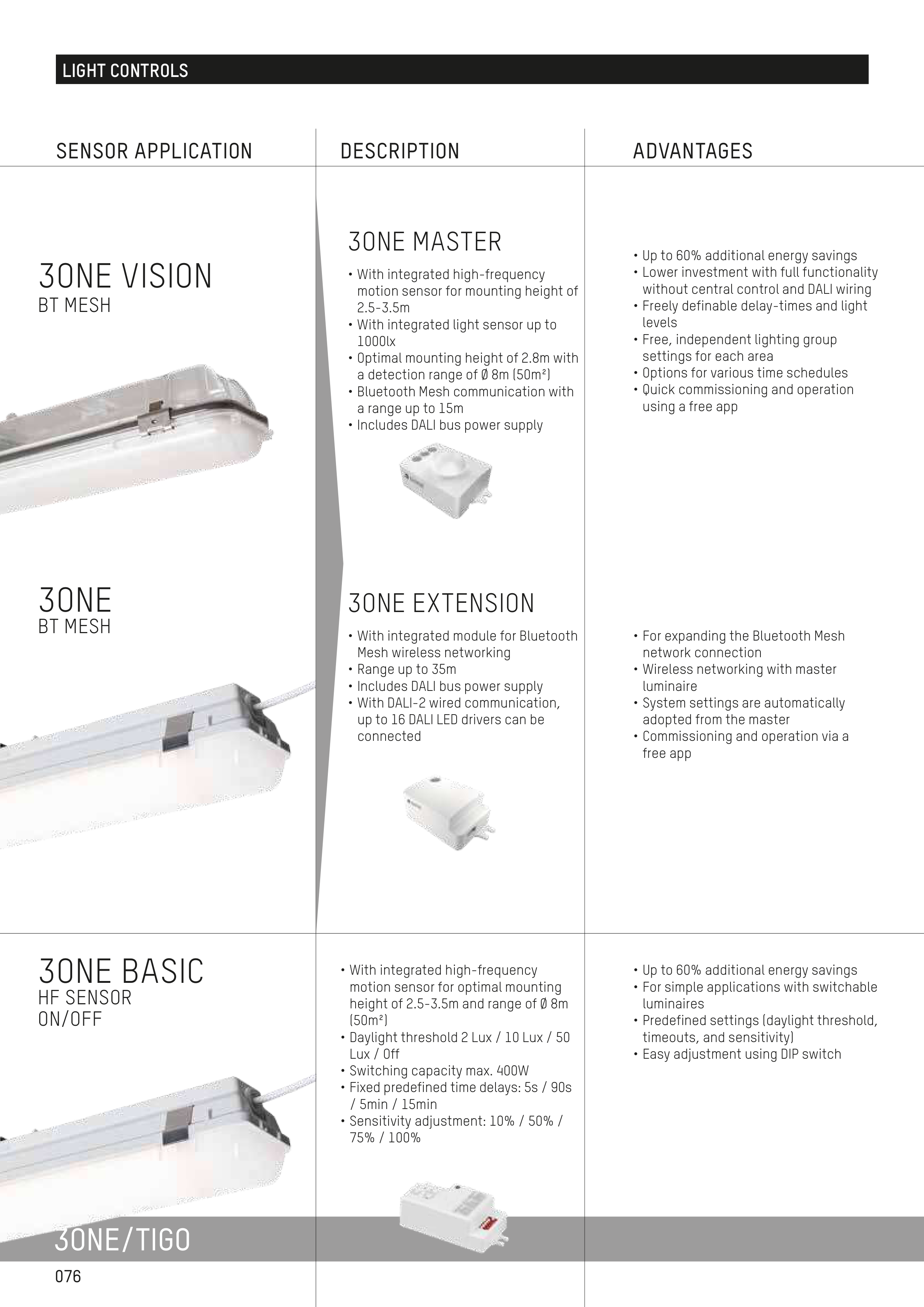

3ONE/TIGO
• With integrated high-frequency
motion sensor for mounting height of
2.5-3.5m
• With integrated light sensor up to
1000lx
• Optimal mounting height of 2.8m with
a detection range of Ø 8m (50m²)
• Bluetooth Mesh communication with
a range up to 15m
• Includes DALI bus power supply
• Up to 60% additional energy savings
• Lower investment with full functionality
without central control and DALI wiring
• Freely definable delay-times and light
levels
• Free, independent lighting group
settings for each area
• Options for various time schedules
• Quick commissioning and operation
using a free app
• With integrated module for Bluetooth
Mesh wireless networking
• Range up to 35m
• Includes DALI bus power supply
• With DALI-2 wired communication,
up to 16 DALI LED drivers can be
connected
• With integrated high-frequency
motion sensor for optimal mounting
height of 2.5-3.5m and range of Ø 8m
(50m²)
• Daylight threshold 2 Lux / 10 Lux / 50
Lux / Off
• Switching capacity max. 400W
• Fixed predefined time delays: 5s / 90s
/ 5min / 15min
• Sensitivity adjustment: 10% / 50% /
75% / 100%
• For expanding the Bluetooth Mesh
network connection
• Wireless networking with master
luminaire
• System settings are automatically
adopted from the master
• Commissioning and operation via a
free app
• Up to 60% additional energy savings
• For simple applications with switchable
luminaires
• Predefined settings (daylight threshold,
timeouts, and sensitivity)
• Easy adjustment using DIP switch
3ONE MASTER
3ONE EXTENSION
LIGHT CONTROLS
3ONE VISION
BT MESH
3ONE
BT MESH
3ONE BASIC
HF SENSOR
ON/OFF
DESCRIPTION
ADVANTAGES
SENSOR APPLICATION
INDEX
