071

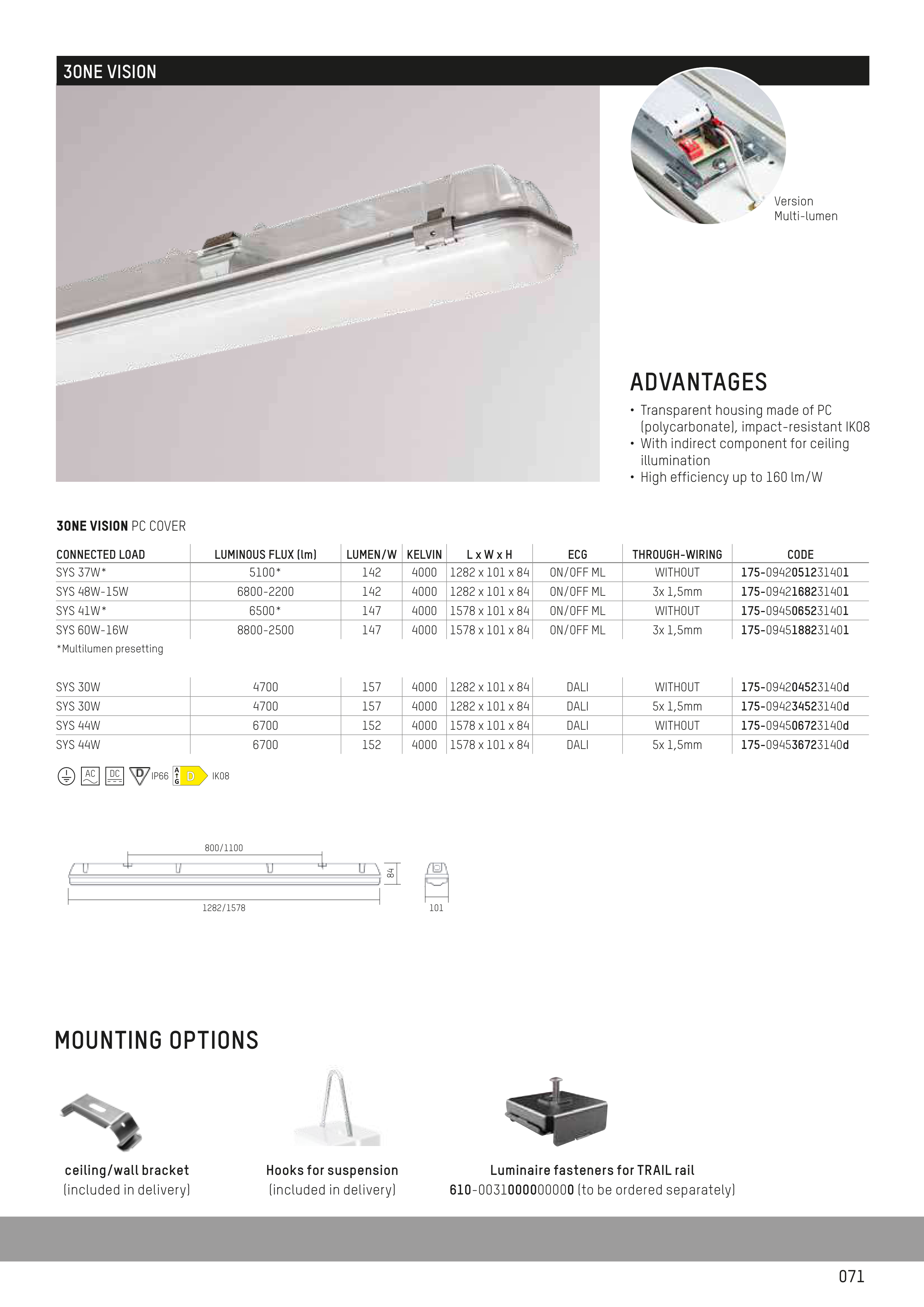

3ONE VISION
DC
AC
IP66
IK08
D
A
G
1282/1578
800/1100
101
84
ceiling/wall bracket
(included in delivery)
Hooks for suspension
(included in delivery)
Luminaire fasteners for TRAIL rail
610-0031000000000 (to be ordered separately)
ADVANTAGES
• Transparent housing made of PC
(polycarbonate), impact-resistant IK08
• With indirect component for ceiling
illumination
• High efficiency up to 160 lm/W
MOUNTING OPTIONS
3ONE VISION PC COVER
CONNECTED LOAD
LUMINOUS FLUX (lm)
LUMEN/W KELVIN
L x W x H
ECG
THROUGH-WIRING
CODE
SYS 37W*
5100*
142
4000
1282 x 101 x 84
ON/OFF ML
WITHOUT
175-0942051231401
SYS 48W-15W
6800-2200
142
4000
1282 x 101 x 84
ON/OFF ML
3x 1,5mm
175-0942168231401
SYS 41W*
6500*
147
4000
1578 x 101 x 84
ON/OFF ML
WITHOUT
175-0945065231401
SYS 60W-16W
8800-2500
147
4000
1578 x 101 x 84
ON/OFF ML
3x 1,5mm
175-0945188231401
*Multilumen presetting
SYS 30W
4700
157
4000
1282 x 101 x 84
DALI
WITHOUT
175-094204523140d
SYS 30W
4700
157
4000
1282 x 101 x 84
DALI
5x 1,5mm
175-094234523140d
SYS 44W
6700
152
4000
1578 x 101 x 84
DALI
WITHOUT
175-094506723140d
SYS 44W
6700
152
4000
1578 x 101 x 84
DALI
5x 1,5mm
175-094536723140d
Version
Multi-lumen
