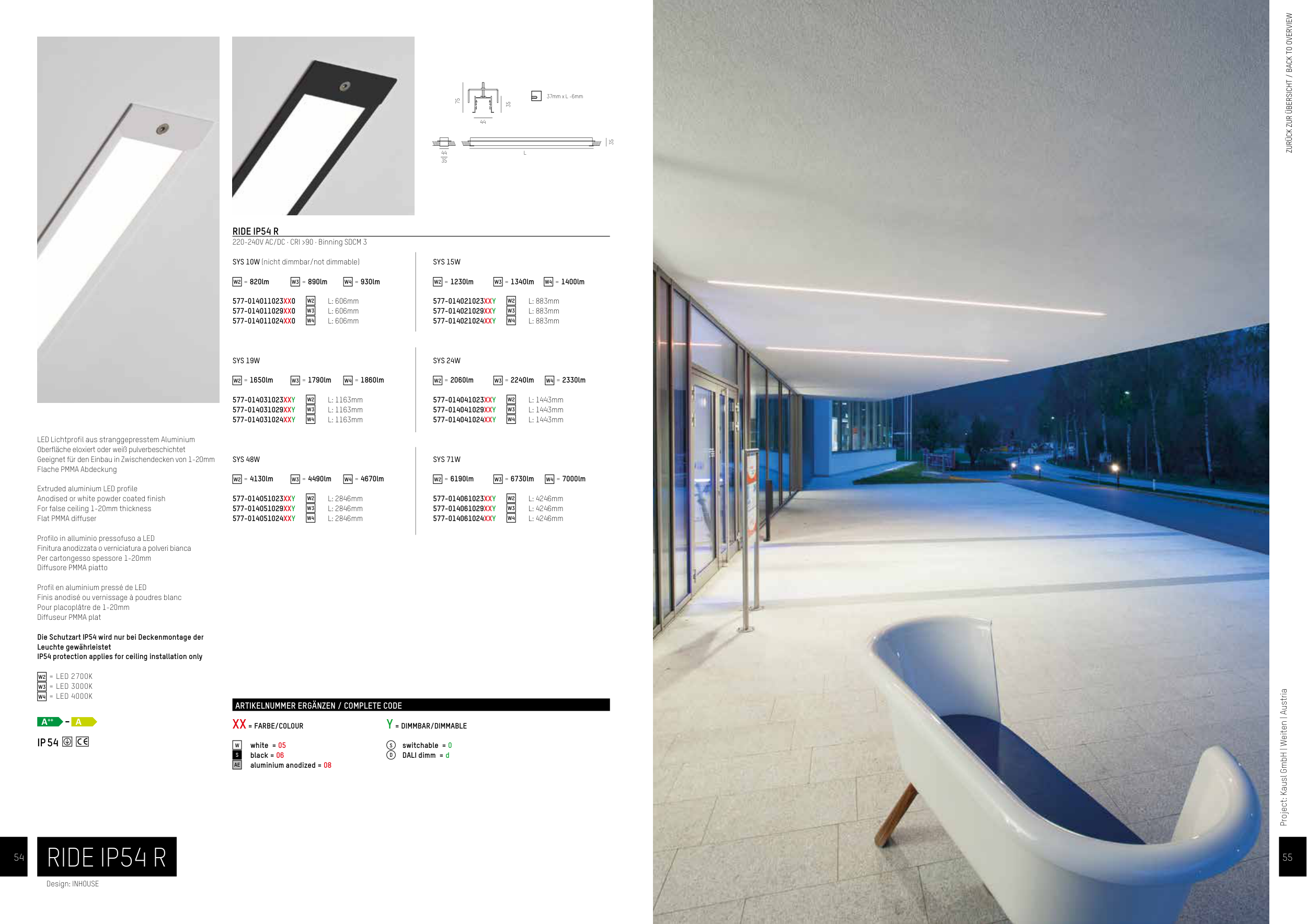

LED Lichtprofil aus stranggepresstem Aluminium
Oberfläche eloxiert oder weiß pulverbeschichtet
Geeignet für den Einbau in Zwischendecken von 1-20mm
Flache PMMA Abdeckung
Extruded aluminium LED profile
Anodised or white powder coated finish
For false ceiling 1-20mm thickness
Flat PMMA diffuser
Profilo in alluminio pressofuso a LED
Finitura anodizzata o verniciatura a polveri bianca
Per cartongesso spessore 1-20mm
Diffusore PMMA piatto
Profil en aluminium pressé de LED
Finis anodisé ou vernissage à poudres blanc
Pour placoplâtre de 1-20mm
Diffuseur PMMA plat
Die Schutzart IP54 wird nur bei Deckenmontage der
Leuchte gewährleistet
IP54 protection applies for ceiling installation only
W2 = LED 2700K
W3 = LED 3000K
W4 = LED 4000K
A
A++
IP 54
RIDE IP54 R
Design: INHOUSE
44
35
L
44
35
35
75
37mm x L -6mm
RIDE IP54 R
220-240V AC/DC · CRI >90 · Binning SDCM 3
SYS 10W (nicht dimmbar/not dimmable)
W2 = 820lm
W3 = 890lm
W4 = 930lm
577-014011023XX0
W2
L: 606mm
577-014011029XX0
W3
L: 606mm
577-014011024XX0
W4
L: 606mm
SYS 19W
W2 = 1650lm
W3 = 1790lm
W4 = 1860lm
577-014031023XXY
W2
L: 1163mm
577-014031029XXY
W3
L: 1163mm
577-014031024XXY
W4
L: 1163mm
SYS 48W
W2 = 4130lm
W3 = 4490lm
W4 = 4670lm
577-014051023XXY
W2
L: 2846mm
577-014051029XXY
W3
L: 2846mm
577-014051024XXY
W4
L: 2846mm
SYS 15W
W2 = 1230lm
W3 = 1340lm
W4 = 1400lm
577-014021023XXY
W2
L: 883mm
577-014021029XXY
W3
L: 883mm
577-014021024XXY
W4
L: 883mm
SYS 24W
W2 = 2060lm
W3 = 2240lm
W4 = 2330lm
577-014041023XXY
W2
L: 1443mm
577-014041029XXY
W3
L: 1443mm
577-014041024XXY
W4
L: 1443mm
SYS 71W
W2 = 6190lm
W3 = 6730lm
W4 = 7000lm
577-014061023XXY
W2
L: 4246mm
577-014061029XXY
W3
L: 4246mm
577-014061024XXY
W4
L: 4246mm
XX = FARBE/COLOUR
W white = 05
S black = 06
AE aluminium anodized = 08
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
Y = DIMMBAR/DIMMABLE
S switchable = 0
D DALI dimm = d
Foto: www.haasmoebel.at
Project: Kausl GmbH | Weiten | Austria
55
54
55
54
