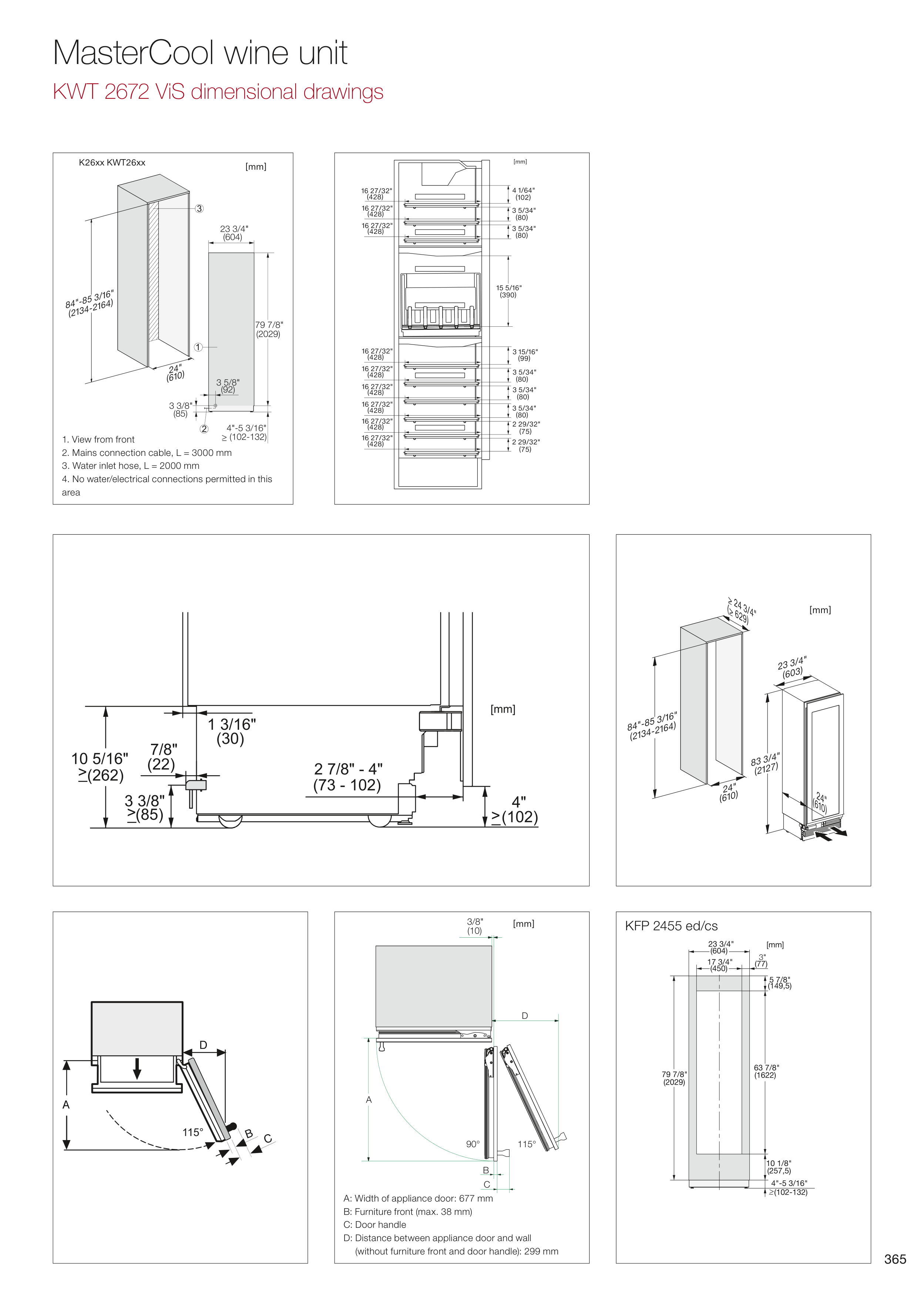

MasterCool wine unit
KWT 2672 ViS dimensional drawings
KFP 2455 ed/cs
A: Width of appliance door: 677 mm
B: Furniture front (max. 38 mm)
C: Door handle
D: Distance between appliance door and wall
(without furniture front and door handle): 299 mm
1. View from front
2. Mains connection cable, L = 3000 mm
3. Water inlet hose, L = 2000 mm
4. No water/electrical connections permitted in this
area
