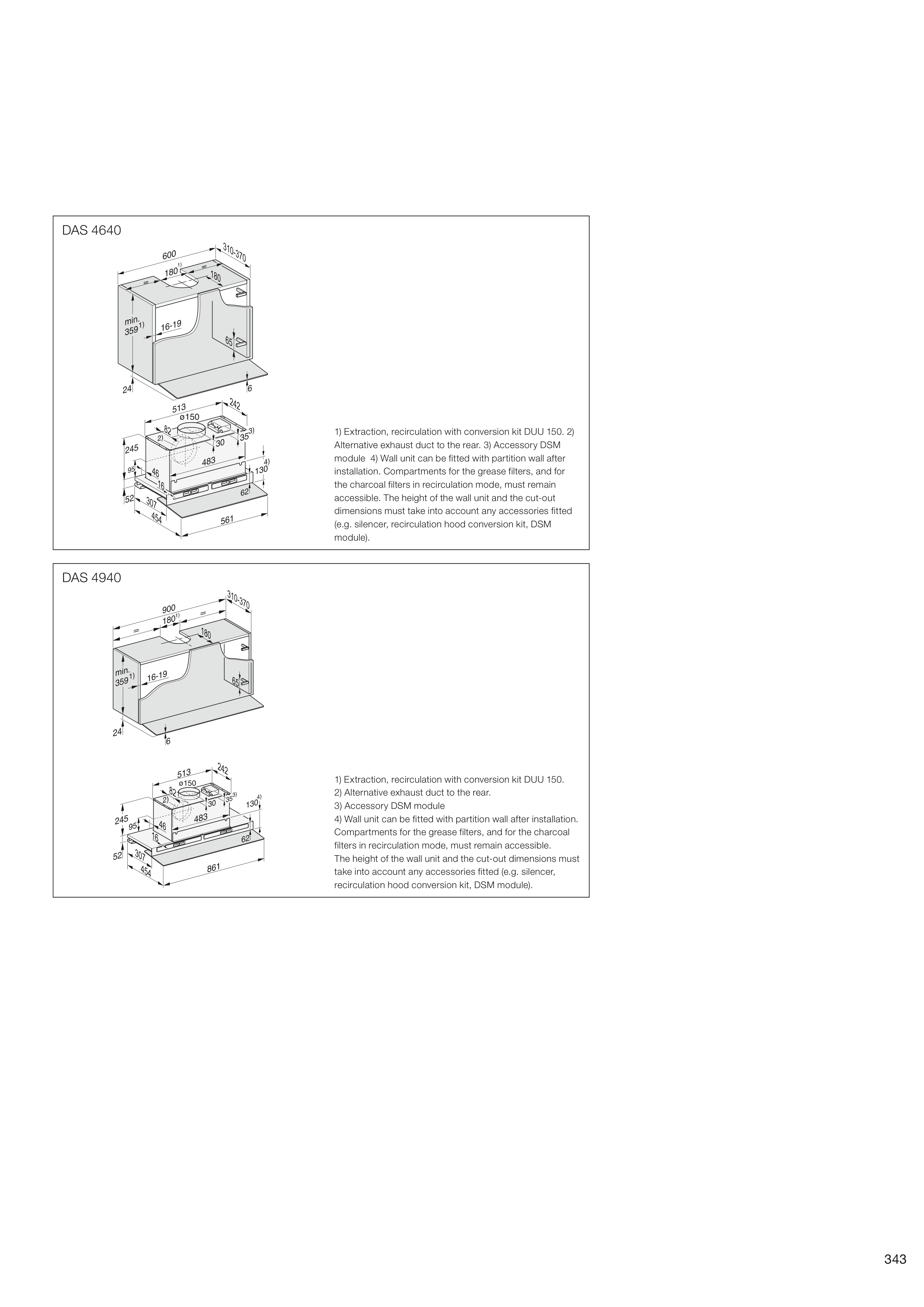

DAS 4640
1) Extraction, recirculation with conversion kit DUU 150. 2)
Alternative exhaust duct to the rear. 3) Accessory DSM
module 4) Wall unit can be fitted with partition wall after
installation. Compartments for the grease filters, and for
the charcoal filters in recirculation mode, must remain
accessible. The height of the wall unit and the cut-out
dimensions must take into account any accessories fitted
(e.g. silencer, recirculation hood conversion kit, DSM
module).
DAS 4940
1) Extraction, recirculation with conversion kit DUU 150.
2) Alternative exhaust duct to the rear.
3) Accessory DSM module
4) Wall unit can be fitted with partition wall after installation.
Compartments for the grease filters, and for the charcoal
filters in recirculation mode, must remain accessible.
The height of the wall unit and the cut-out dimensions must
take into account any accessories fitted (e.g. silencer,
recirculation hood conversion kit, DSM module).
