342
Slimline cooker hoods
DAS 2620 / DAS 2620 EXTA / DAS 4620
1) The front section of the wall unit must be fitted with a
base panel to secure the cooker hood. If the appliance is
fitted further back, e.g. to accommodate a front panel, then
the shelf depth should be deeper accordingly.
2) If a partition wall is to be provided in the unit, it must be
removable.
3) Extraction, recirculation with conversion kit DUU 150.
* In this installation situation, the deflector plate is flush with
the front edge of the housing unit.
If you wish to position the cooker hood further forward or
further back (e.g. because it has a front panel), dimensions
have to be adapted accordingly.
The height of the wall unit and the cut-out dimensions must
take into account any accessories fitted, (e.g. silencer,
recirculation hood conversion kit).
DAS 2920 / DAS 2920 EXTA / DAS 4920
1) The front section of the wall unit must be fitted with a
base panel to secure the cooker hood. If the appliance is
fitted further back, e.g. to accommodate a front panel, then
the shelf depth should be deeper accordingly.
2) If a partition wall is to be provided in the unit, it must be
removable.
3) Extraction, recirculation with conversion kit DUU 150.
4) Installation is also possible in a 600 mm wide cabinet.
* In this installation situation, the deflector plate is flush with
the front edge of the housing unit.
If you wish to position the cooker hood further forward or
further back (e.g. because it has a front panel), dimensions
have to be adapted accordingly.
The height of the wall unit and the cut-out dimensions must
take into account any accessories fitted, (e.g. silencer,
recirculation hood conversion kit).

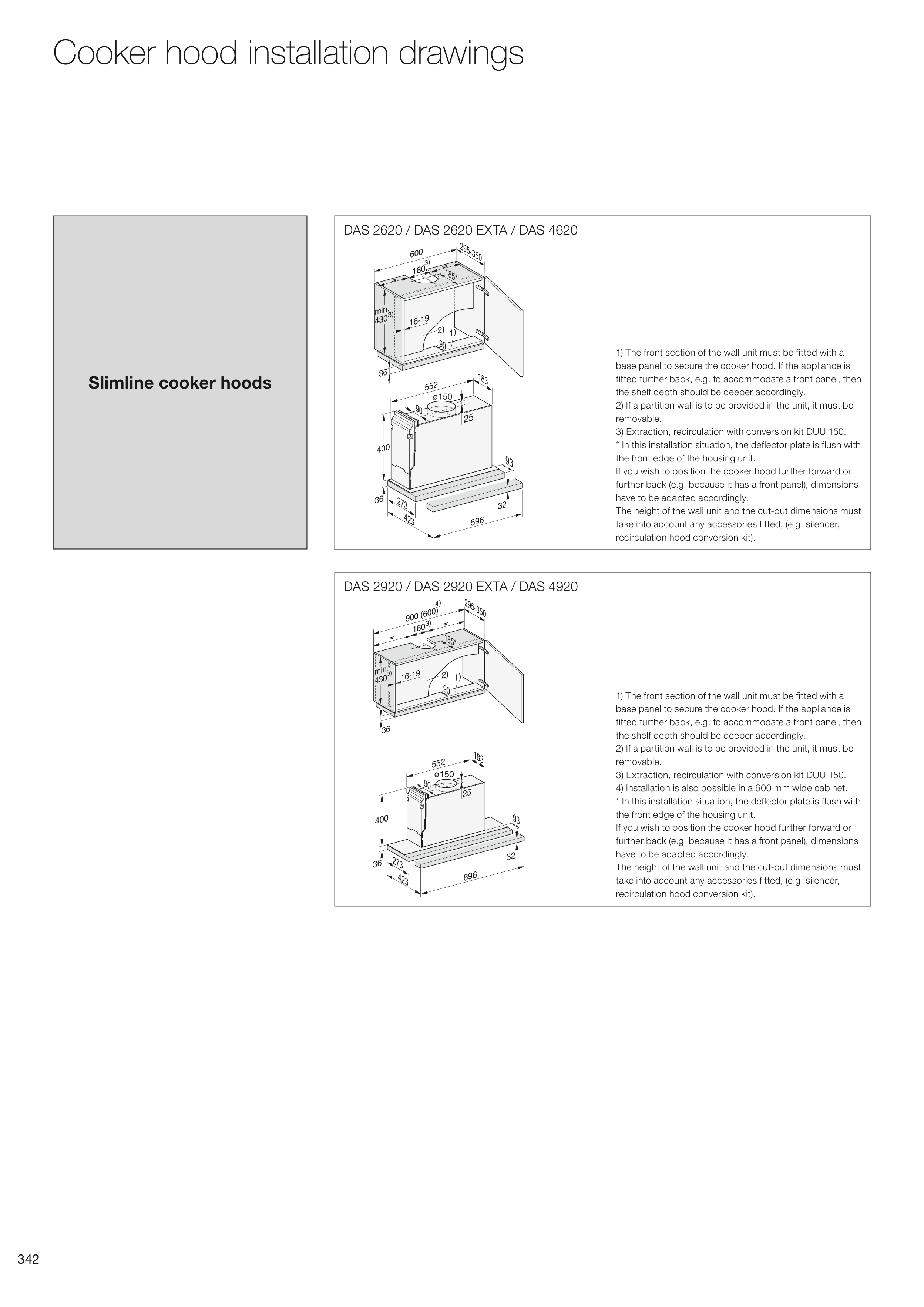

Cooker hood installation drawings
