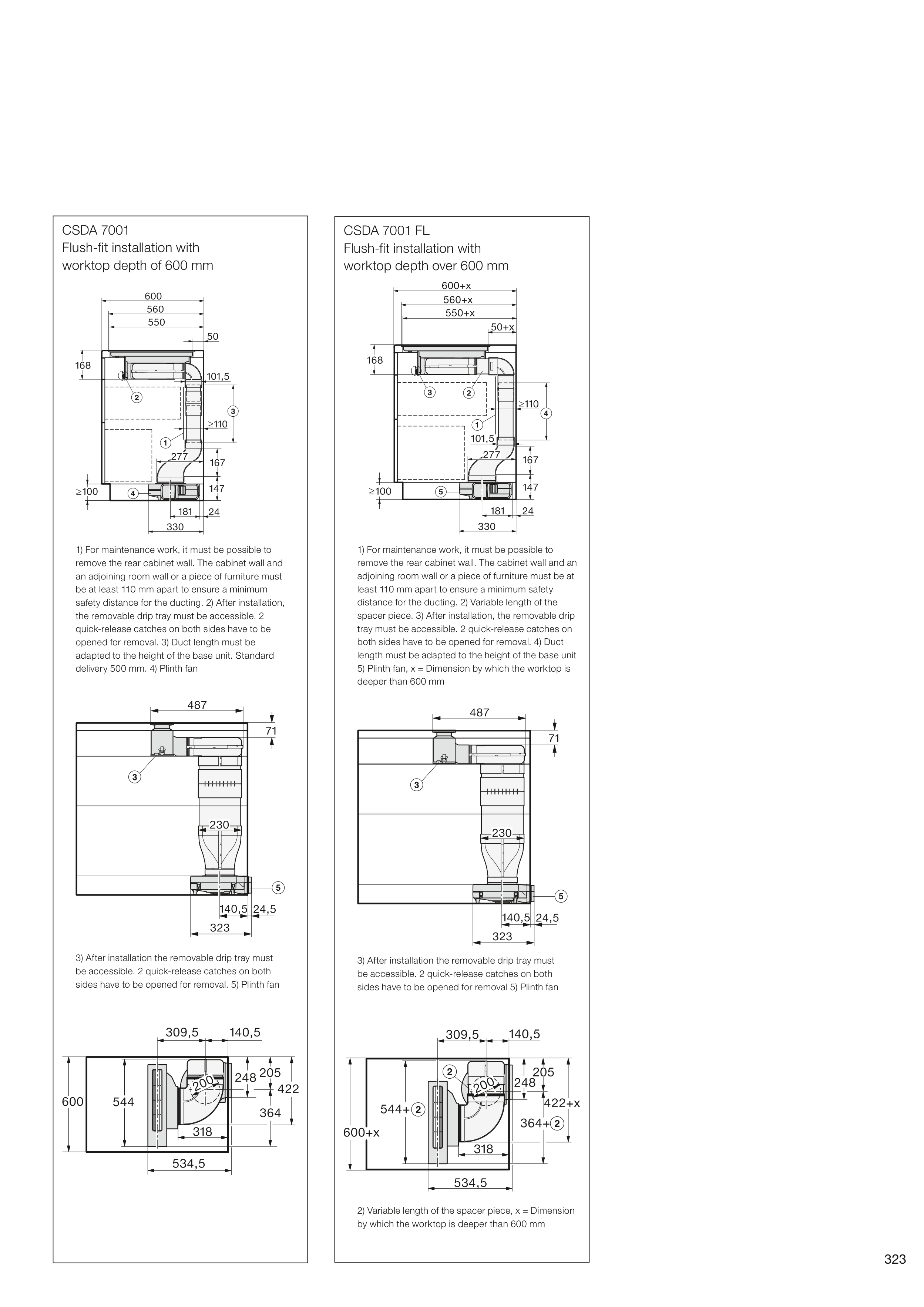

CSDA 7001
Flush-fit installation with
worktop depth of 600 mm
1) For maintenance work, it must be possible to
remove the rear cabinet wall. The cabinet wall and
an adjoining room wall or a piece of furniture must
be at least 110 mm apart to ensure a minimum
safety distance for the ducting. 2) After installation,
the removable drip tray must be accessible. 2
quick-release catches on both sides have to be
opened for removal. 3) Duct length must be
adapted to the height of the base unit. Standard
delivery 500 mm. 4) Plinth fan
3) After installation the removable drip tray must
be accessible. 2 quick-release catches on both
sides have to be opened for removal. 5) Plinth fan
CSDA 7001 FL
Flush-fit installation with
worktop depth over 600 mm
1) For maintenance work, it must be possible to
remove the rear cabinet wall. The cabinet wall and an
adjoining room wall or a piece of furniture must be at
least 110 mm apart to ensure a minimum safety
distance for the ducting. 2) Variable length of the
spacer piece. 3) After installation, the removable drip
tray must be accessible. 2 quick-release catches on
both sides have to be opened for removal. 4) Duct
length must be adapted to the height of the base unit
5) Plinth fan, x = Dimension by which the worktop is
deeper than 600 mm
3) After installation the removable drip tray must
be accessible. 2 quick-release catches on both
sides have to be opened for removal 5) Plinth fan
2) Variable length of the spacer piece, x = Dimension
by which the worktop is deeper than 600 mm
