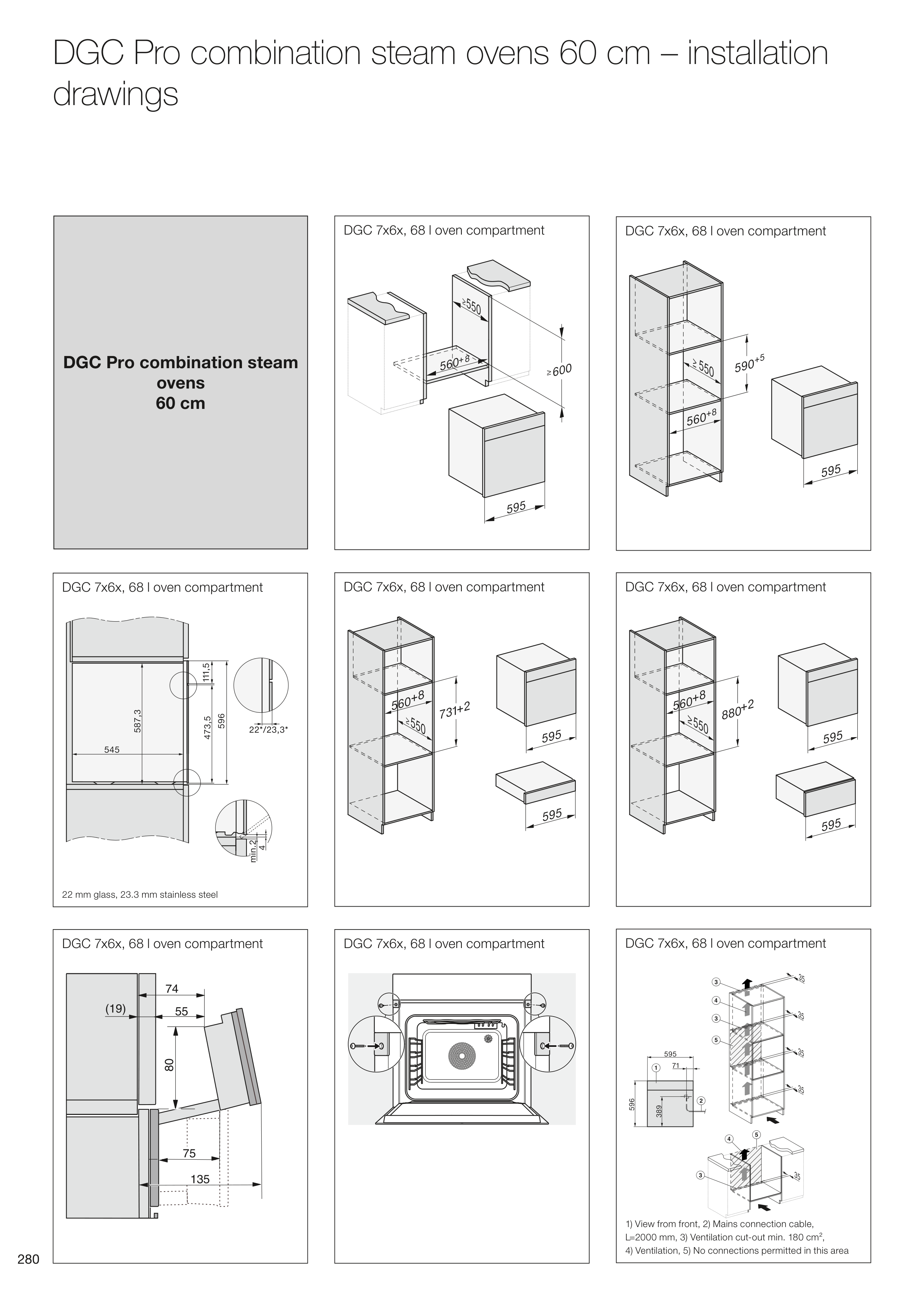

DGC Pro combination steam ovens 60 cm – installation
drawings
DGC 7x6x, 68 l oven compartment
DGC 7x6x, 68 l oven compartment
DGC 7x6x, 68 l oven compartment
22 mm glass, 23.3 mm stainless steel
DGC Pro combination steam
ovens
60 cm
DGC 7x6x, 68 l oven compartment
DGC 7x6x, 68 l oven compartment
DGC 7x6x, 68 l oven compartment
DGC 7x6x, 68 l oven compartment
DGC 7x6x, 68 l oven compartment
1) View from front, 2) Mains connection cable,
L=2000 mm, 3) Ventilation cut-out min. 180 cm²,
4) Ventilation, 5) No connections permitted in this area
