Miele cooker hoods

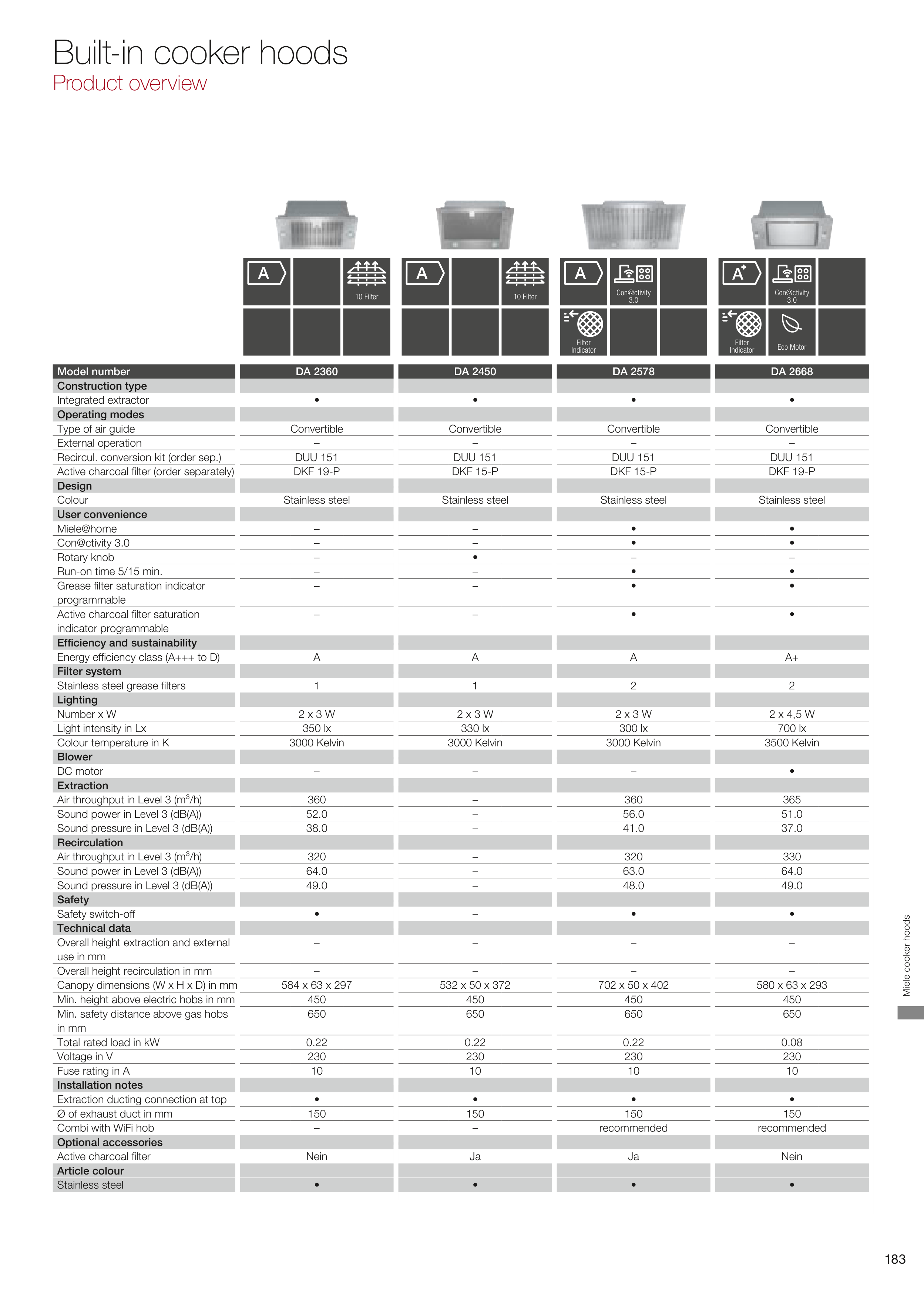

Built-in cooker hoods
Product overview
10 Filter
10 Filter
Con@ctivity
3.0
Con@ctivity
3.0
Filter
Indicator
Filter
Indicator
Eco Motor
Model number
DA 2360
DA 2450
DA 2578
DA 2668
Construction type
Integrated extractor
•
•
•
•
Operating modes
Type of air guide
Convertible
Convertible
Convertible
Convertible
External operation
–
–
–
–
Recircul. conversion kit (order sep.)
DUU 151
DUU 151
DUU 151
DUU 151
Active charcoal filter (order separately)
DKF 19-P
DKF 15-P
DKF 15-P
DKF 19-P
Design
Colour
Stainless steel
Stainless steel
Stainless steel
Stainless steel
User convenience
Miele@home
–
–
•
•
Con@ctivity 3.0
–
–
•
•
Rotary knob
–
•
–
–
Run-on time 5/15 min.
–
–
•
•
Grease filter saturation indicator
programmable
–
–
•
•
Active charcoal filter saturation
indicator programmable
–
–
•
•
Efficiency and sustainability
Energy efficiency class (A+++ to D)
A
A
A
A+
Filter system
Stainless steel grease filters
1
1
2
2
Lighting
Number x W
2 x 3 W
2 x 3 W
2 x 3 W
2 x 4,5 W
Light intensity in Lx
350 lx
330 lx
300 lx
700 lx
Colour temperature in K
3000 Kelvin
3000 Kelvin
3000 Kelvin
3500 Kelvin
Blower
DC motor
–
–
–
•
Extraction
Air throughput in Level 3 (m³/h)
360
–
360
365
Sound power in Level 3 (dB(A))
52.0
–
56.0
51.0
Sound pressure in Level 3 (dB(A))
38.0
–
41.0
37.0
Recirculation
Air throughput in Level 3 (m³/h)
320
–
320
330
Sound power in Level 3 (dB(A))
64.0
–
63.0
64.0
Sound pressure in Level 3 (dB(A))
49.0
–
48.0
49.0
Safety
Safety switch-off
•
–
•
•
Technical data
Overall height extraction and external
use in mm
–
–
–
–
Overall height recirculation in mm
–
–
–
–
Canopy dimensions (W x H x D) in mm
584 x 63 x 297
532 x 50 x 372
702 x 50 x 402
580 x 63 x 293
Min. height above electric hobs in mm
450
450
450
450
Min. safety distance above gas hobs
in mm
650
650
650
650
Total rated load in kW
0.22
0.22
0.22
0.08
Voltage in V
230
230
230
230
Fuse rating in A
10
10
10
10
Installation notes
Extraction ducting connection at top
•
•
•
•
Ø of exhaust duct in mm
150
150
150
150
Combi with WiFi hob
–
–
recommended
recommended
Optional accessories
Active charcoal filter
Nein
Ja
Ja
Nein
Article colour
Stainless steel
•
•
•
•
