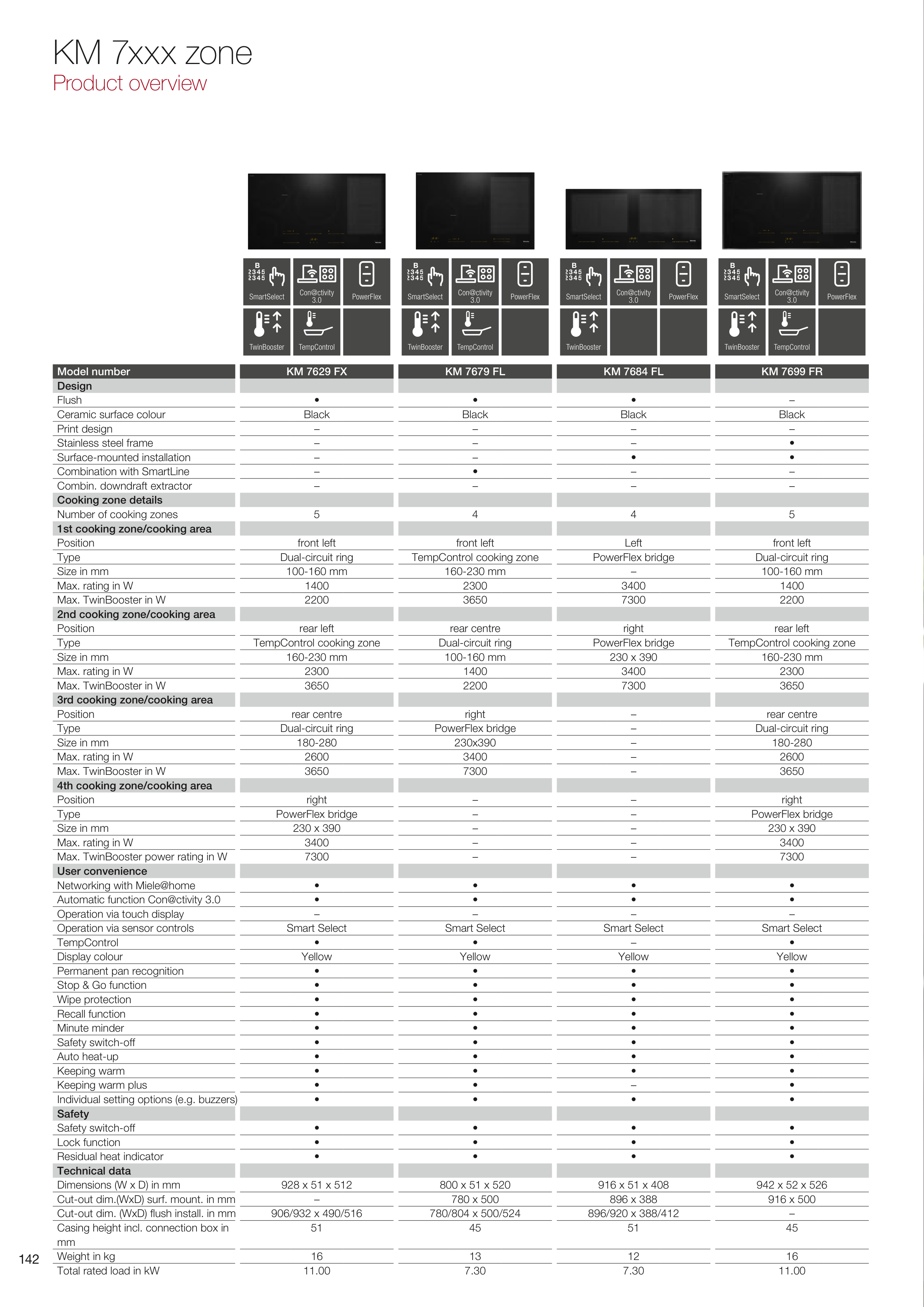

KM 7xxx zone
Product overview
SmartSelect
2345
2345
Con@ctivity
3.0
PowerFlex
SmartSelect
2345
2345
Con@ctivity
3.0
PowerFlex
SmartSelect
2345
2345
Con@ctivity
3.0
PowerFlex
SmartSelect
2345
2345
Con@ctivity
3.0
PowerFlex
TwinBooster
TempControl
TwinBooster
TempControl
TwinBooster
TwinBooster
TempControl
Model number
KM 7629 FX
KM 7679 FL
KM 7684 FL
KM 7699 FR
Design
Flush
•
•
•
–
Ceramic surface colour
Black
Black
Black
Black
Print design
–
–
–
–
Stainless steel frame
–
–
–
•
Surface-mounted installation
–
–
•
•
Combination with SmartLine
–
•
–
–
Combin. downdraft extractor
–
–
–
–
Cooking zone details
Number of cooking zones
5
4
4
5
1st cooking zone/cooking area
Position
front left
front left
Left
front left
Type
Dual-circuit ring
TempControl cooking zone
PowerFlex bridge
Dual-circuit ring
Size in mm
100-160 mm
160-230 mm
–
100-160 mm
Max. rating in W
1400
2300
3400
1400
Max. TwinBooster in W
2200
3650
7300
2200
2nd cooking zone/cooking area
Position
rear left
rear centre
right
rear left
Type
TempControl cooking zone
Dual-circuit ring
PowerFlex bridge
TempControl cooking zone
Size in mm
160-230 mm
100-160 mm
230 x 390
160-230 mm
Max. rating in W
2300
1400
3400
2300
Max. TwinBooster in W
3650
2200
7300
3650
3rd cooking zone/cooking area
Position
rear centre
right
–
rear centre
Type
Dual-circuit ring
PowerFlex bridge
–
Dual-circuit ring
Size in mm
180-280
230x390
–
180-280
Max. rating in W
2600
3400
–
2600
Max. TwinBooster in W
3650
7300
–
3650
4th cooking zone/cooking area
Position
right
–
–
right
Type
PowerFlex bridge
–
–
PowerFlex bridge
Size in mm
230 x 390
–
–
230 x 390
Max. rating in W
3400
–
–
3400
Max. TwinBooster power rating in W
7300
–
–
7300
User convenience
Networking with Miele@home
•
•
•
•
Automatic function Con@ctivity 3.0
•
•
•
•
Operation via touch display
–
–
–
–
Operation via sensor controls
Smart Select
Smart Select
Smart Select
Smart Select
TempControl
•
•
–
•
Display colour
Yellow
Yellow
Yellow
Yellow
Permanent pan recognition
•
•
•
•
Stop & Go function
•
•
•
•
Wipe protection
•
•
•
•
Recall function
•
•
•
•
Minute minder
•
•
•
•
Safety switch-off
•
•
•
•
Auto heat-up
•
•
•
•
Keeping warm
•
•
•
•
Keeping warm plus
•
•
–
•
Individual setting options (e.g. buzzers)
•
•
•
•
Safety
Safety switch-off
•
•
•
•
Lock function
•
•
•
•
Residual heat indicator
•
•
•
•
Technical data
Dimensions (W x D) in mm
928 x 51 x 512
800 x 51 x 520
916 x 51 x 408
942 x 52 x 526
Cut-out dim.(WxD) surf. mount. in mm
–
780 x 500
896 x 388
916 x 500
Cut-out dim. (WxD) flush install. in mm
906/932 x 490/516
780/804 x 500/524
896/920 x 388/412
–
Casing height incl. connection box in
mm
51
45
51
45
Weight in kg
16
13
12
16
Total rated load in kW
11.00
7.30
7.30
11.00
