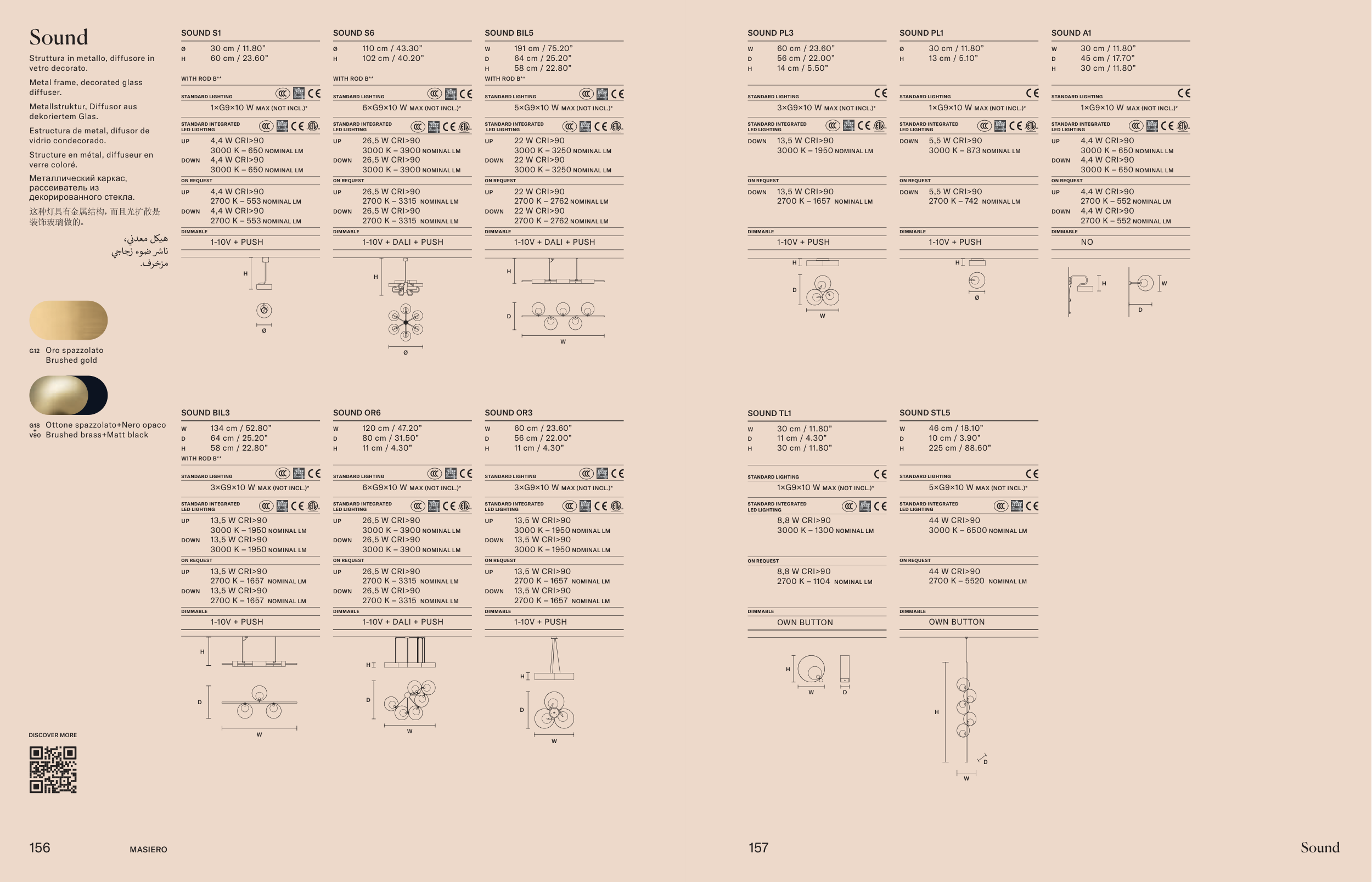

MASIERO
156
157
Sound
Struttura in metallo, diffusore in
vetro decorato.
Metal frame, decorated glass
diffuser.
Metallstruktur, Diffusor aus
dekoriertem Glas.
Estructura de metal, difusor de
vidrio condecorado.
Structure en métal, diffuseur en
verre coloré.
Металлический каркас,
рассеиватель из
декорированного стекла.
这种灯具有金属结构，而且光扩散是
装饰玻璃做的。
،ي�نيدعم لكيه
ي�جياجز ءوض رشران
.فرخزم
G12 Oro spazzolato
Brushed gold
G18 Ottone spazzolato+Nero opaco
V90 Brushed brass+Matt black
H
Ø
H
D
W
W
D
H
H
D
W
SOUND BIL5
W
191 cm / 75.20”
D
64 cm / 25.20”
H
58 cm / 22.80”
WITH ROD B**
STANDARD LIGHTING
5×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
UP
22 W CRI>90
3000 K – 3250 NOMINAL LM
DOWN
22 W CRI>90
3000 K – 3250 NOMINAL LM
ON REQUEST
UP
22 W CRI>90
2700 K – 2762 NOMINAL LM
DOWN
22 W CRI>90
2700 K – 2762 NOMINAL LM
DIMMABLE
1-10V + DALI + PUSH
SOUND OR3
W
60 cm / 23.60”
D
56 cm / 22.00”
H
11 cm / 4.30”
STANDARD LIGHTING
3×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
UP
13,5 W CRI>90
3000 K – 1950 NOMINAL LM
DOWN
13,5 W CRI>90
3000 K – 1950 NOMINAL LM
ON REQUEST
UP
13,5 W CRI>90
2700 K – 1657 NOMINAL LM
DOWN
13,5 W CRI>90
2700 K – 1657 NOMINAL LM
DIMMABLE
1-10V + PUSH
SOUND OR6
W
120 cm / 47.20”
D
80 cm / 31.50”
H
11 cm / 4.30”
STANDARD LIGHTING
6×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
UP
26,5 W CRI>90
3000 K – 3900 NOMINAL LM
DOWN
26,5 W CRI>90
3000 K – 3900 NOMINAL LM
ON REQUEST
UP
26,5 W CRI>90
2700 K – 3315 NOMINAL LM
DOWN
26,5 W CRI>90
2700 K – 3315 NOMINAL LM
DIMMABLE
1-10V + DALI + PUSH
SOUND BIL3
W
134 cm / 52.80”
D
64 cm / 25.20”
H
58 cm / 22.80”
WITH ROD B**
STANDARD LIGHTING
3×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
UP
13,5 W CRI>90
3000 K – 1950 NOMINAL LM
DOWN
13,5 W CRI>90
3000 K – 1950 NOMINAL LM
ON REQUEST
UP
13,5 W CRI>90
2700 K – 1657 NOMINAL LM
DOWN
13,5 W CRI>90
2700 K – 1657 NOMINAL LM
DIMMABLE
1-10V + PUSH
SOUND S6
Ø
110 cm / 43.30”
H
102 cm / 40.20”
WITH ROD B**
STANDARD LIGHTING
6×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
UP
26,5 W CRI>90
3000 K – 3900 NOMINAL LM
DOWN
26,5 W CRI>90
3000 K – 3900 NOMINAL LM
ON REQUEST
UP
26,5 W CRI>90
2700 K – 3315 NOMINAL LM
DOWN
26,5 W CRI>90
2700 K – 3315 NOMINAL LM
DIMMABLE
1-10V + DALI + PUSH
H
Ø
SOUND S1
Ø
30 cm / 11.80”
H
60 cm / 23.60”
WITH ROD B**
STANDARD LIGHTING
1×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
UP
4,4 W CRI>90
3000 K – 650 NOMINAL LM
DOWN
4,4 W CRI>90
3000 K – 650 NOMINAL LM
ON REQUEST
UP
4,4 W CRI>90
2700 K – 553 NOMINAL LM
DOWN
4,4 W CRI>90
2700 K – 553 NOMINAL LM
DIMMABLE
1-10V + PUSH
H
D
W
SOUND PL3
W
D
H
STANDARD LIGHTING
STANDARD INTEGRATED
LED LIGHTING
DOWN
ON REQUEST
DOWN
DIMMABLE
SOUND TL1
W
D
H
STANDARD LIGHTING
STANDARD INTEGRATED
LED LIGHTING
ON REQUEST
DIMMABLE
DISCOVER MORE
386627_Masiero_Catalogo-Dimore2025_MONDO201224.indd 156
386627_Masiero_Catalogo-Dimore2025_MONDO201224.indd 156
13/01/25 12:18
13/01/25 12:18
157
Sound
SOUND A1
W
30 cm / 11.80”
D
45 cm / 17.70”
H
30 cm / 11.80”
STANDARD LIGHTING
1×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
UP
4,4 W CRI>90
3000 K – 650 NOMINAL LM
DOWN
4,4 W CRI>90
3000 K – 650 NOMINAL LM
ON REQUEST
UP
4,4 W CRI>90
2700 K – 552 NOMINAL LM
DOWN
4,4 W CRI>90
2700 K – 552 NOMINAL LM
DIMMABLE
NO
SOUND PL1
Ø
30 cm / 11.80”
H
13 cm / 5.10”
STANDARD LIGHTING
1×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
DOWN
5,5 W CRI>90
3000 K – 873 NOMINAL LM
ON REQUEST
DOWN
5,5 W CRI>90
2700 K – 742 NOMINAL LM
DIMMABLE
1-10V + PUSH
SOUND PL3
W
60 cm / 23.60”
D
56 cm / 22.00”
H
14 cm / 5.50”
STANDARD LIGHTING
3×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
DOWN
13,5 W CRI>90
3000 K – 1950 NOMINAL LM
ON REQUEST
DOWN
13,5 W CRI>90
2700 K – 1657 NOMINAL LM
DIMMABLE
1-10V + PUSH
H
D
W
H
Ø
H
D
W
SOUND TL1
W
30 cm / 11.80”
D
11 cm / 4.30”
H
30 cm / 11.80”
STANDARD LIGHTING
1×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
8,8 W CRI>90
3000 K – 1300 NOMINAL LM
ON REQUEST
8,8 W CRI>90
2700 K – 1104 NOMINAL LM
DIMMABLE
OWN BUTTON
H
W
D
SOUND STL5
W
46 cm / 18.10”
D
10 cm / 3.90”
H
225 cm / 88.60”
STANDARD LIGHTING
5×G9×10 W MAX (NOT INCL.)*
STANDARD INTEGRATED
LED LIGHTING
44 W CRI>90
3000 K – 6500 NOMINAL LM
ON REQUEST
44 W CRI>90
2700 K – 5520 NOMINAL LM
DIMMABLE
OWN BUTTON
H
W
D
