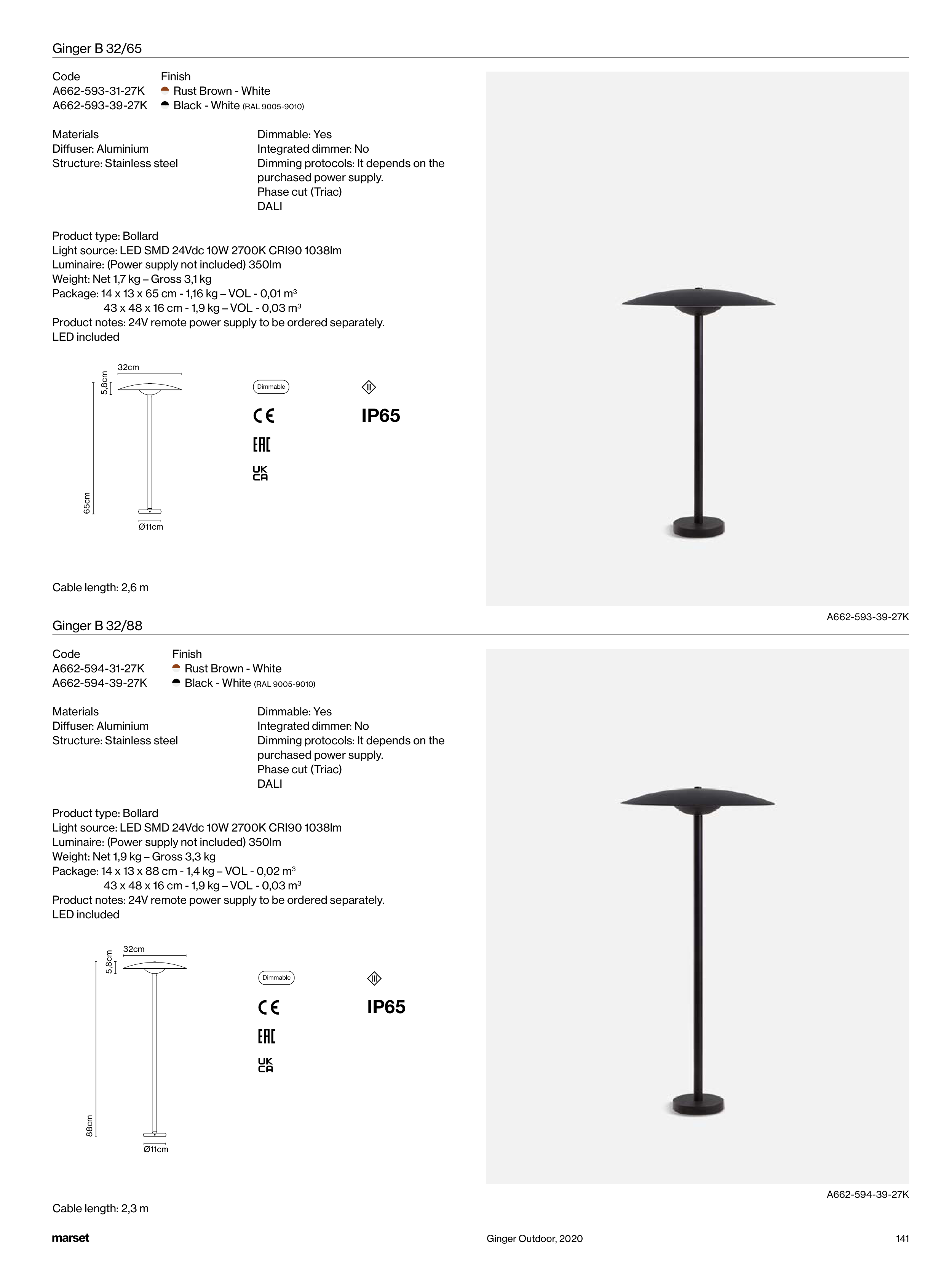

Ginger B 32/65
Finish
Product type: Bollard
Light source: LED SMD 24Vdc 10W 2700K CRI90 1038lm
Luminaire: (Power supply not included) 350lm
Weight: Net 1,7 kg – Gross 3,1 kg
Package: 14 x 13 x 65 cm - 1,16 kg – VOL - 0,01 m3
43 x 48 x 16 cm - 1,9 kg – VOL - 0,03 m3
Product notes: 24V remote power supply to be ordered separately.
LED included
Cable length: 2,6 m
Materials
Diffuser: Aluminium
Structure: Stainless steel
Dimmable: Yes
Integrated dimmer: No
Dimming protocols: It depends on the
purchased power supply.
Phase cut (Triac)
DALI
Ginger B 32/88
Finish
Product type: Bollard
Light source: LED SMD 24Vdc 10W 2700K CRI90 1038lm
Luminaire: (Power supply not included) 350lm
Weight: Net 1,9 kg – Gross 3,3 kg
Package: 14 x 13 x 88 cm - 1,4 kg – VOL - 0,02 m3
43 x 48 x 16 cm - 1,9 kg – VOL - 0,03 m3
Product notes: 24V remote power supply to be ordered separately.
LED included
Cable length: 2,3 m
Materials
Diffuser: Aluminium
Structure: Stainless steel
Dimmable: Yes
Integrated dimmer: No
Dimming protocols: It depends on the
purchased power supply.
Phase cut (Triac)
DALI
Rust Brown - White
Black - White (RAL 9005-9010)
Rust Brown - White
Black - White (RAL 9005-9010)
Code
Code
Dimmable
IP65
Dimmable
IP65
Ø11cm
Ø11cm
A662-593-39-27K
A662-594-39-27K
A662-593-31-27K
A662-593-39-27K
A662-594-31-27K
A662-594-39-27K
5,8cm
88cm
32cm
65cm
5,8cm
32cm
141
Ginger Outdoor, 2020
