ROLL TO ROLL 24V
Potencia
Power
Lumens
Lumens
IP Leds/m
Led
IRC
CRI
Medidas
Size
Color temp. (Kelvin)
Colour (Kelvin)
ROLL TO ROLL 10W - (corte cada / cut every 50mm)
-
-
-
+24V
+24V
+24V
10W/m
1096lm/m
IP20
120
SMD2835
>80
50000x8x1.2mm
COB ROLL TO ROLL - (corte cada / cut every 50mm)
+12V
+12V
+12V
-
-
-
11W/m
975lm/m
IP20
450
COB
>90
50000x8x1.5mm
COB RGB ROLL TO ROLL - (corte cada / cut every 31.2mm)
+24V
+24V
G
G
R
R
B
B
14W/m
420lm/m
IP20
576
COB
>90
50000x10x2mm
ROLL TO ROLL 15W - (corte cada / cut every 50mm)
-
-
-
+24V
+24V
+24V
15W/m
2243lm/m
IP20
160
SMD2835
>80
50000x10x1.2mm
ROLL TO ROLL 20W - (corte cada / cut every 25mm)
-
-
-
-
-
+24V
+24V
+24V
+24V
+24V
20W/m
2262lm/m
IP20
240
SMD2835
>80
50000x10x1.2mm
Materias primas
Raw materials
Máquina de serigrafía
Screen printing machine
Impresión de soldadura
Solder printing
Máquina SMT
SMT machine
Soldadura por refusión
Reflow welding
Tira de led
Led strip

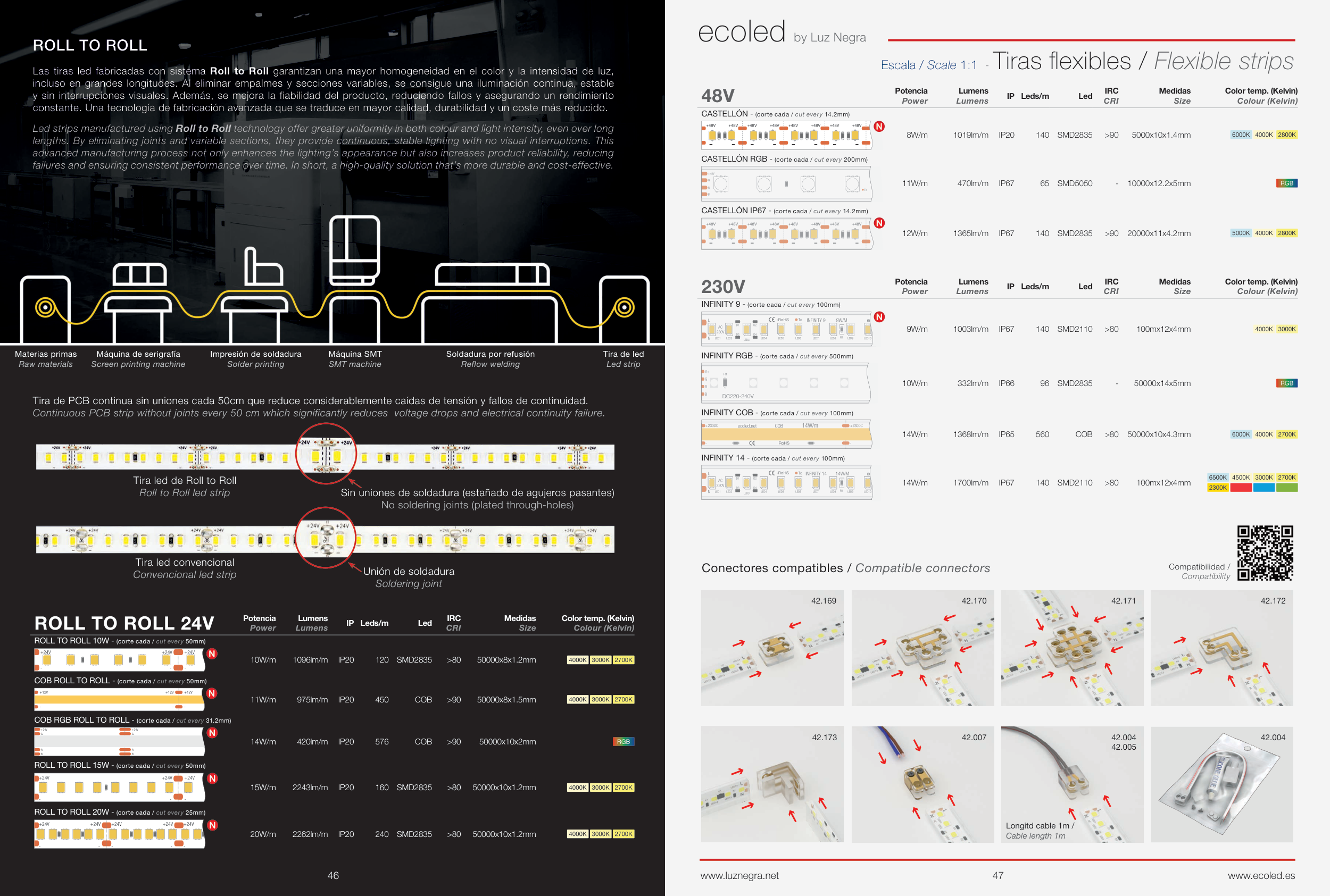

ROLL TO ROLL
Las tiras led fabricadas con sistema Roll to Roll garantizan una mayor homogeneidad en el color y la intensidad de luz,
incluso en grandes longitudes. Al eliminar empalmes y secciones variables, se consigue una iluminación continua, estable
y sin interrupciones visuales. Además, se mejora la fiabilidad del producto, reduciendo fallos y asegurando un rendimiento
constante. Una tecnología de fabricación avanzada que se traduce en mayor calidad, durabilidad y un coste más reducido.
Led strips manufactured using Roll to Roll technology offer greater uniformity in both colour and light intensity, even over long
lengths. By eliminating joints and variable sections, they provide continuous, stable lighting with no visual interruptions. This
advanced manufacturing process not only enhances the lighting’s appearance but also increases product reliability, reducing
failures and ensuring consistent performance over time. In short, a high-quality solution that’s more durable and cost-effective.
Tira de PCB continua sin uniones cada 50cm que reduce considerablemente caídas de tensión y fallos de continuidad.
Continuous PCB strip without joints every 50 cm which significantly reduces voltage drops and electrical continuity failure.
Tira led de Roll to Roll
Roll to Roll led strip
Sin uniones de soldadura (estañado de agujeros pasantes)
No soldering joints (plated through-holes)
Tira led convencional
Convencional led strip
Unión de soldadura
Soldering joint
48V
Potencia
Power
Lumens
Lumens
IP Leds/m
Led
IRC
CRI
Medidas
Size
Color temp. (Kelvin)
Colour (Kelvin)
CASTELLÓN - (corte cada / cut every 14.2mm)
+48V
+48V
+48V
+48V
+48V
+48V
+48V
+48V
8W/m
1019lm/m
IP20
140
SMD2835
>90
5000x10x1.4mm
CASTELLÓN RGB - (corte cada / cut every 200mm)
+48V
G
R
B
Tc
11W/m
470lm/m
IP67
65
SMD5050
-
10000x12.2x5mm
CASTELLÓN IP67 - (corte cada / cut every 14.2mm)
+48V
+48V
+48V
+48V
+48V
+48V
+48V
+48V
12W/m
1365lm/m
IP67
140
SMD2835
>90
20000x11x4.2mm
230V
Potencia
Power
Lumens
Lumens
IP Leds/m
Led
IRC
CRI
Medidas
Size
Color temp. (Kelvin)
Colour (Kelvin)
INFINITY 9 - (corte cada / cut every 100mm)
-RoHS
9W/m
1003lm/m
IP67
140
SMD2110
>80
100mx12x4mm
INFINITY RGB - (corte cada / cut every 500mm)
B
G
V+
R
10W/m
332lm/m
IP66
96
SMD2835
-
50000x14x5mm
INFINITY COB - (corte cada / cut every 100mm)
14W/m
14W/m
1368lm/m
IP65
560
COB
>80
50000x10x4.3mm
INFINITY 14 - (corte cada / cut every 100mm)
-RoHS
14W/m
1700lm/m
IP67
140
SMD2110
>80
100mx12x4mm
Escala / Scale 1:1 - Tiras flexibles / Flexible strips
42.169
42.173
42.170
42.007
42.171
42.004
42.005
42.004
Longitd cable 1m /
Cable length 1m
42.172
Conectores compatibles / Compatible connectors
Compatibilidad /
Compatibility
