Led COB: no marca punto ni en perfiles de poca
profundidad.
COB led: dot-free even in shallow profiles.
• 100 lm/W
• CRI 90
Corte cada 1cm, lo que implica prácticamente Free Cut. Aunque cortemos por
otro lugar, la zona no iluminada será inferior a 1cm, por lo que no se aprecia
zona oscura una vez coloquemos el difusor.
Can be cut every 1cm, which practically implies Free Cut. Even if we cut in
another place, the area not illuminated will be less than 1cm, meaning no dark
areas will be visible once we place the cover.
Pad contínuo que facilita
la soldadura y la conexión en el
sistema Cut&Connect, alargando
su vida útil y minimizando la caída de
tensión.
continuous pad that makes soldering
and connections much easier in the Cut&Connect
system, extending its useful life and minimising voltage
drop.
5mm
IP20
10W
10mm
IP20
5W
10W
15W
20W
11mm
IP67
15W

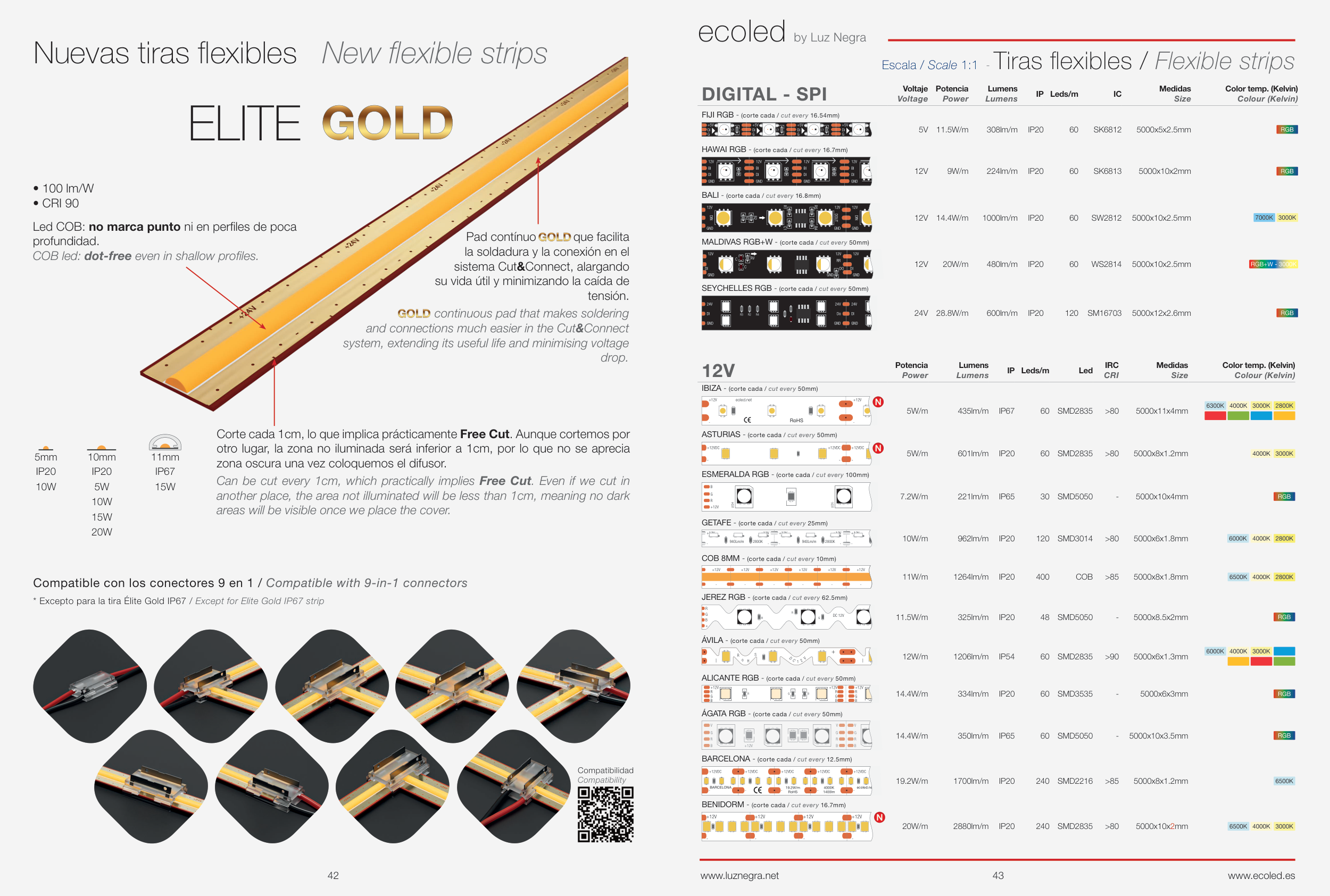

Nuevas tiras flexibles New flexible strips
ELITE
Compatible con los conectores 9 en 1 / Compatible with 9-in-1 connectors
* Excepto para la tira Élite Gold IP67 / Except for Elite Gold IP67 strip
Compatibilidad
Compatibility
www.ecoled.es
www.luznegra.net
ecoled by Luz Negra
12V
Potencia
Power
Lumens
Lumens
IP Leds/m
Led
IRC
CRI
Medidas
Size
Color temp. (Kelvin)
Colour (Kelvin)
IBIZA - (corte cada / cut every 50mm)
+12V
+12V
-
-
RoHS
eoled.net
5W/m
435lm/m
IP67
60
SMD2835
>80
5000x11x4mm
ASTURIAS - (corte cada / cut every 50mm)
-
-
-
+12VDC
+12VDC
+12VDC
5W/m
601lm/m
IP20
60
SMD2835
>80
5000x8x1.2mm
ESMERALDA RGB - (corte cada / cut every 100mm)
B
G
R
+12V
LED4
LED5
7.2W/m
221lm/m
IP65
30
SMD5050
-
5000x10x4mm
GETAFE - (corte cada / cut every 25mm)
+12V
+12V
+12V
+12V
+12V
-
-
-
-
-
940Lm/m
940Lm/m
2800K
2800K
10W/m
962lm/m
IP20
120
SMD3014
>80
5000x6x1.8mm
COB 8MM - (corte cada / cut every 10mm)
+12V
+12V
+12V
+12V
+12V
+12V
-
-
-
-
-
-
11W/m
1264lm/m
IP20
400
COB
>85
5000x8x1.8mm
JEREZ RGB - (corte cada / cut every 62.5mm)
R
DC 12V
G
B
+
B
G
R
11.5W/m
325lm/m
IP20
48
SMD5050
-
5000x8.5x2mm
ÁVILA - (corte cada / cut every 50mm)
R
+
o
H
S
D C
1
2 V
12W/m
1206lm/m
IP54
60
SMD2835
>90
5000x6x1.3mm
ALICANTE RGB - (corte cada / cut every 50mm)
+12V
R
G
B
+12V
R
G
B
+12V
R
G
B
R
G
B
14.4W/m
334lm/m
IP20
60
SMD3535
-
5000x6x3mm
ÁGATA RGB - (corte cada / cut every 50mm)
B
B
B
G
G
G
V
V
V
R
R
R
+12V
14.4W/m
350lm/m
IP65
60
SMD5050
-
5000x10x3.5mm
BARCELONA - (corte cada / cut every 12.5mm)
-
-
-
-
-
-
-
-
BARCELONA
19.2W/m
RoHS
4000K
1400lm
ecoled.net
+12VDC
+12VDC
+12VDC
+12VDC
+12VDC
19.2W/m
1700lm/m
IP20
240
SMD2216
>85
5000x8x1.2mm
BENIDORM - (corte cada / cut every 16.7mm)
-
-
-
-
+12V
+12V
+12V
+12V
20W/m
2880lm/m
IP20
240
SMD2835
>80
5000x10x2mm
DIGITAL - SPI
Voltaje
Voltage
Potencia
Power
Lumens
Lumens
IP Leds/m
IC
Medidas
Size
Color temp. (Kelvin)
Colour (Kelvin)
FIJI RGB - (corte cada / cut every 16.54mm)
+5V
+5V
+5V
+5V
Di
Di
Di
Di
C1
C1
C1
C1
G
G
G
G
5V
11.5W/m
308lm/m
IP20
60
SK6812
5000x5x2.5mm
HAWAI RGB - (corte cada / cut every 16.7mm)
GND
GND
GND
GND
BI
BI
BI
BI
DI
DI
DI
DI
12V
12V
12V
12V
12V
9W/m
224lm/m
IP20
60
SK6813
5000x10x2mm
BALI - (corte cada / cut every 16.8mm)
GND
GND
GND
DIN
DIN
DOUT
R3
R2
R1
R5
C1
R4
12V
12V
12V
12V
14.4W/m
1000lm/m
IP20
60
SW2812
5000x10x2.5mm
MALDIVAS RGB+W - (corte cada / cut every 50mm)
GND
GND
GND
DI
DI
DO
C
C
RV
12V
12V
12V
RR
12V
20W/m
480lm/m
IP20
60
WS2814
5000x10x2.5mm
SEYCHELLES RGB - (corte cada / cut every 50mm)
R3
R2
R4
24V
24V
24V
GND
GND
GND
DI
DI
Do
24V
28.8W/m
600lm/m
IP20
120
SM16703
5000x12x2.6mm
Escala / Scale 1:1 - Tiras flexibles / Flexible strips
