90
VERSIONI DISPONIBILI / AVAILABLE VERSION
KELVIN
27
2700K
30
3000K
35
3500K
40
4000K
KELVIN
27
2700K
30
3000K
35
3500K
40
4000K
TW Tunable White Dali
CODE
F1000.8
/ ##
COMPOSIZIONE CODICE: xxx.x
/ ##
HOW TO CREATE THE CODE:
kelvin
base code
beam
finishing
F1000.827S / 01
Per i gradi vedere in tabella -
For degrees check the table
01
Ø 75
mm
Ø 90
mm
Ø 130
mm
Ø 160
mm
49
36
02
VERSIONI / VERSIONS
/ ## FINITURA | FINISHING
/ 01 bianco | white
/ 02 nero | black
/ 36 oro | gold
/ 49 bronzo | bronze
/ ## FINITURA PREMIUM / PREMIUM FINISHING
/ 81 oro rosa / rose gold
/ 82 bronzo anticato|antique bronze
/ 83 ottone brunito spazzolato|brushed burnished brass

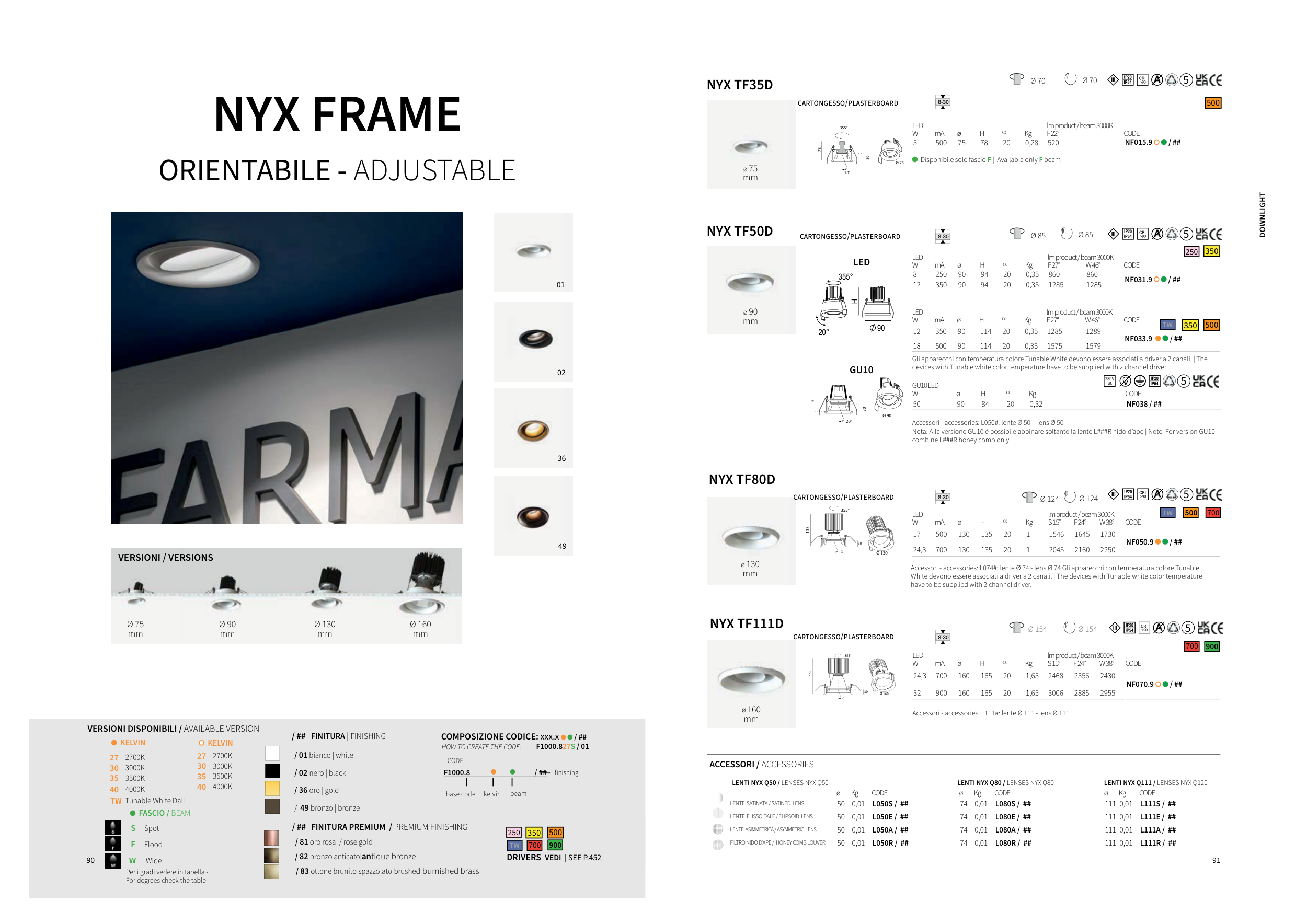

NYX FRAME
ORIENTABILE - ADJUSTABLE
500
350
250
TW
700
900
DRIVERS VEDI | SEE P.452
90
FASCIO / BEAM
S Spot
F Flood
W Wide
91
DOWNLIGHT
Ø 75
78
30
20°
355°
Ø 70
Ø 70
500
NYX TF35D
NYX TF50D
NYX TF111D
CARTONGESSO/PLASTERBOARD
8-30
LED
lm product / beam 3000K
W
mA
ø
H
α
Kg
F 22°
CODE
5
500
75
78
20
0,28
520
NF015.9
/ ##
CRI
>90
5
90
H
20°
355°
LED
lm product / beam 3000K
W
mA
ø
H
α
Kg
F 27°
W 46°
CODE
8
250
90
94
20
0,35
860
860
NF031.9
/ ##
12
350
90
94
20
0,35
1285
1285
LED
lm product / beam 3000K
W
mA
ø
H
α
Kg
F 27°
W 46°
CODE
12
350
90
114
20
0,35
1285
1289
NF033.9
/ ##
18
500
90
114
20
0,35
1575
1579
Gli apparecchi con temperatura colore Tunable White devono essere associati a driver a 2 canali. | The
devices with Tunable white color temperature have to be supplied with 2 channel driver.
GU10 LED
W
ø
H
α
Kg
CODE
50
90
84
20
0,32
NF038 / ##
Accessori - accessories: L050#: lente Ø 50 - lens Ø 50
Nota: Alla versione GU10 è possibile abbinare soltanto la lente L###R nido d’ape | Note: For version GU10
combine L###R honey comb only.
Ø 85
Ø 85
350
350
500
CRI
>90
5
CARTONGESSO/PLASTERBOARD
8-30
CARTONGESSO/PLASTERBOARD
8-30
Ø 160
165
30
355°
α
LED
lm product / beam 3000K
W
mA
ø
H
α
Kg
S 15°
F 24°
W 38°
CODE
24,3
700
160
165
20
1,65
2468
2356
2430
NF070.9
/ ##
32
900
160
165
20
1,65
3006
2885
2955
Accessori - accessories: L111#: lente Ø 111 - lens Ø 111
Ø 154
Ø 154
700
900
CRI
>90
5
ACCESSORI / ACCESSORIES
ø
Kg
CODE
LENTE SATINATA / SATINED LENS 50
0,01
L050S / ##
LENTE ELISSOIDALE / ELIPSOID LENS 50
0,01
L050E / ##
LENTE ASIMMETRICA / ASYMMETRIC LENS 50
0,01
L050A / ##
FILTRO NIDO D’APE / HONEY COMB LOUVER 50
0,01
L050R / ##
LENTI NYX Q50 / LENSES NYX Q50
LENTI NYX Q80 / LENSES NYX Q80
LENTI NYX Q111 / LENSES NYX Q120
ø
Kg
CODE
74
0,01
L080S / ##
74
0,01
L080E / ##
74
0,01
L080A / ##
74
0,01
L080R / ##
ø
Kg
CODE
111 0,01
L111S / ##
111 0,01
L111E / ##
111 0,01
L111A / ##
111 0,01
L111R / ##
TW
Disponibile solo fascio F | Available only F beam
NYX TF80D
Ø 130
135
30
355°
α
LED
lm product / beam 3000K
W
mA
ø
H
α
Kg
S 15°
F 24°
W 38°
CODE
17
500
130
135
20
1
1546
1645
1730
NF050.9
/ ##
24,3
700
130
135
20
1
2045
2160
2250
Ø 124
Ø 124
Accessori - accessories: L074#: lente Ø 74 - lens Ø 74 Gli apparecchi con temperatura colore Tunable
White devono essere associati a driver a 2 canali. | The devices with Tunable white color temperature
have to be supplied with 2 channel driver.
700
500
CRI
>90
5
CARTONGESSO/PLASTERBOARD
8-30
TW
ø 130
mm
ø 160
mm
ø 75
mm
ø 90
mm
Ø 90
H
30
20°
GU10
LED
250
230V
ac
5
