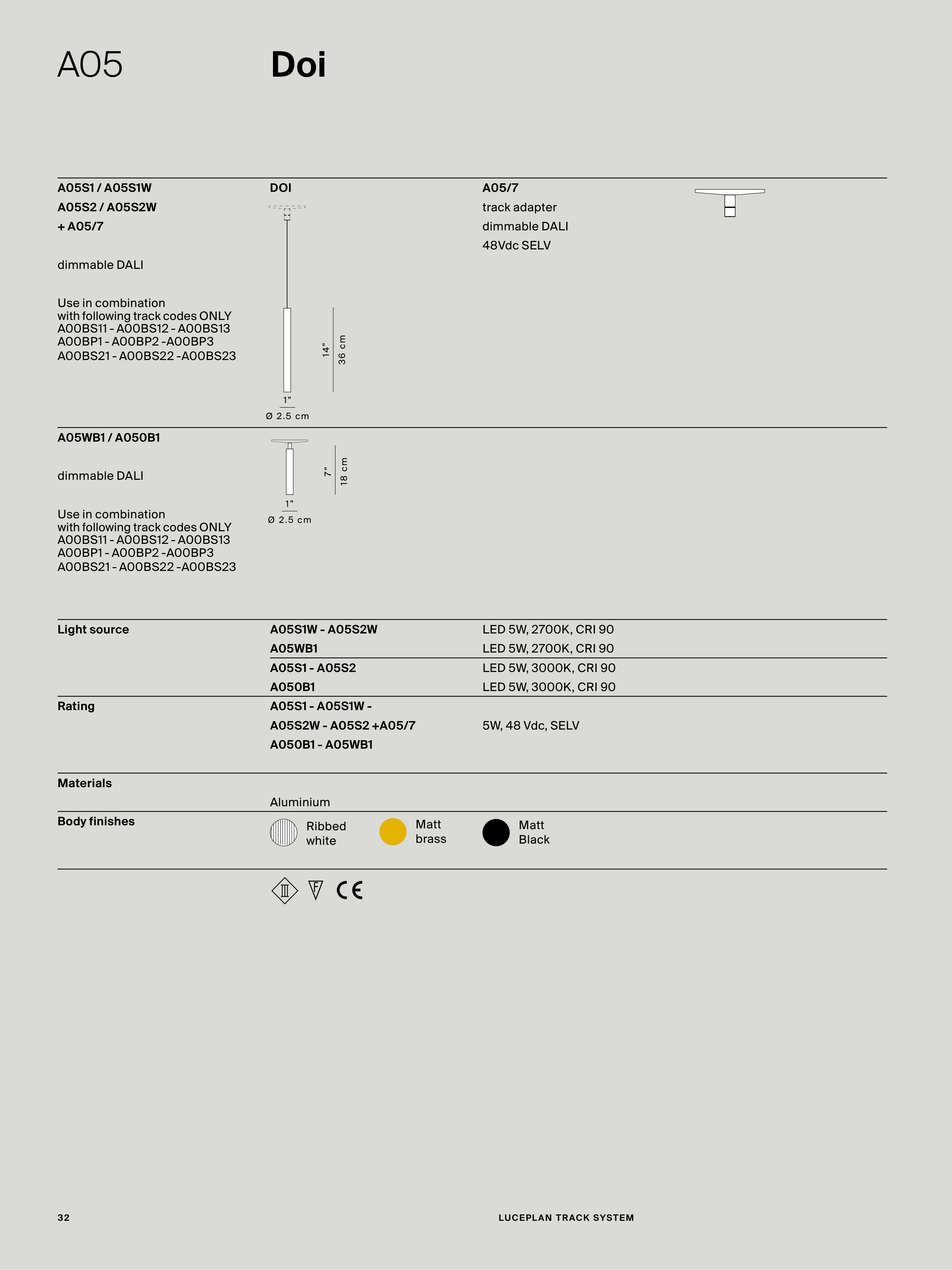

LUCEPLAN TRACK SYSTEM
A05
Doi
A05S1 / A05S1W
A05S2 / A05S2W
+ A05/7
dimmable DALI
Use in combination
with following track codes ONLY
A00BS11 - A00BS12 - A00BS13
A00BP1 - A00BP2 -A00BP3
A00BS21 - A00BS22 -A00BS23
DOI
A05/7
track adapter
dimmable DALI
48Vdc SELV
Light source
Rating
Materials
Body finishes
A05S1W - A05S2W
A05WB1
A05S1 - A05S2
A050B1
A05S1 - A05S1W -
A05S2W - A05S2 +A05/7
A050B1 - A05WB1
LED 5W, 2700K, CRI 90
LED 5W, 2700K, CRI 90
LED 5W, 3000K, CRI 90
LED 5W, 3000K, CRI 90
5W, 48 Vdc, SELV
Aluminium
Matt
Black
Matt
brass
Ribbed
white
A05WB1 / A050B1
dimmable DALI
Use in combination
with following track codes ONLY
A00BS11 - A00BS12 - A00BS13
A00BP1 - A00BP2 -A00BP3
A00BS21 - A00BS22 -A00BS23
14”
36 cm
7”
18 cm
1”
Ø 2.5 cm
1”
Ø 2.5 cm
32
