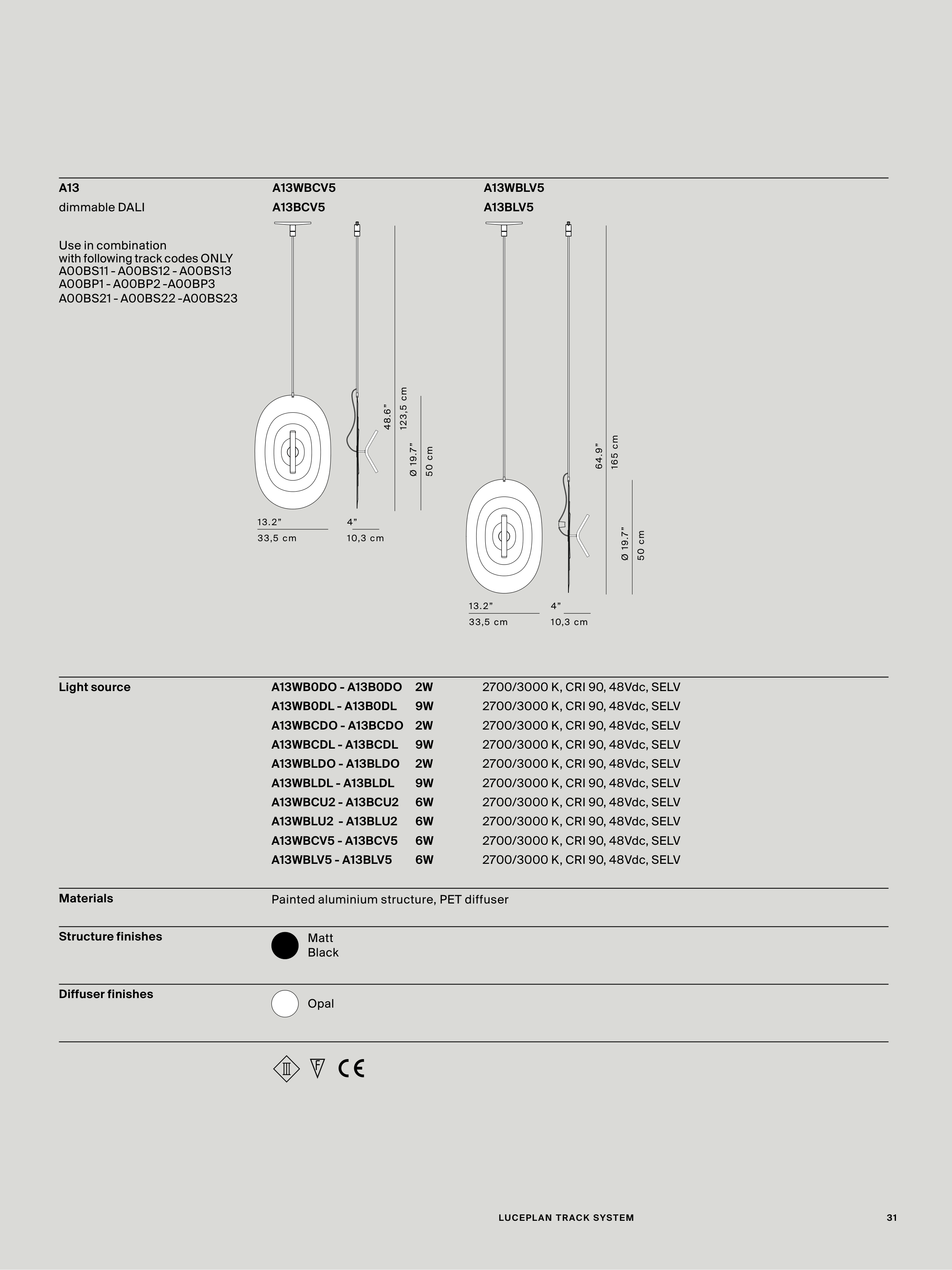

LUCEPLAN TRACK SYSTEM
A13
dimmable DALI
Use in combination
with following track codes ONLY
A00BS11 - A00BS12 - A00BS13
A00BP1 - A00BP2 -A00BP3
A00BS21 - A00BS22 -A00BS23
Light source
Materials
Structure finishes
Diffuser finishes
Painted aluminium structure, PET diffuser
Opal
Matt
Black
A13WB0DO - A13B0DO 2W
A13WB0DL - A13B0DL
9W
A13WBCDO - A13BCDO 2W
A13WBCDL - A13BCDL
9W
A13WBLDO - A13BLDO
2W
A13WBLDL - A13BLDL
9W
A13WBCU2 - A13BCU2
6W
A13WBLU2 - A13BLU2
6W
A13WBCV5 - A13BCV5
6W
A13WBLV5 - A13BLV5
6W
48.6”
123,5 cm
A13WBCV5
A13BCV5
A13WBLV5
A13BLV5
Ø 19.7”
50 cm
13.2”
33,5 cm
4”
10,3 cm
64.9”
165 cm
Ø 19.7”
50 cm
13.2”
33,5 cm
4”
10,3 cm
2700/3000 K, CRI 90, 48Vdc, SELV
2700/3000 K, CRI 90, 48Vdc, SELV
2700/3000 K, CRI 90, 48Vdc, SELV
2700/3000 K, CRI 90, 48Vdc, SELV
2700/3000 K, CRI 90, 48Vdc, SELV
2700/3000 K, CRI 90, 48Vdc, SELV
2700/3000 K, CRI 90, 48Vdc, SELV
2700/3000 K, CRI 90, 48Vdc, SELV
2700/3000 K, CRI 90, 48Vdc, SELV
2700/3000 K, CRI 90, 48Vdc, SELV
