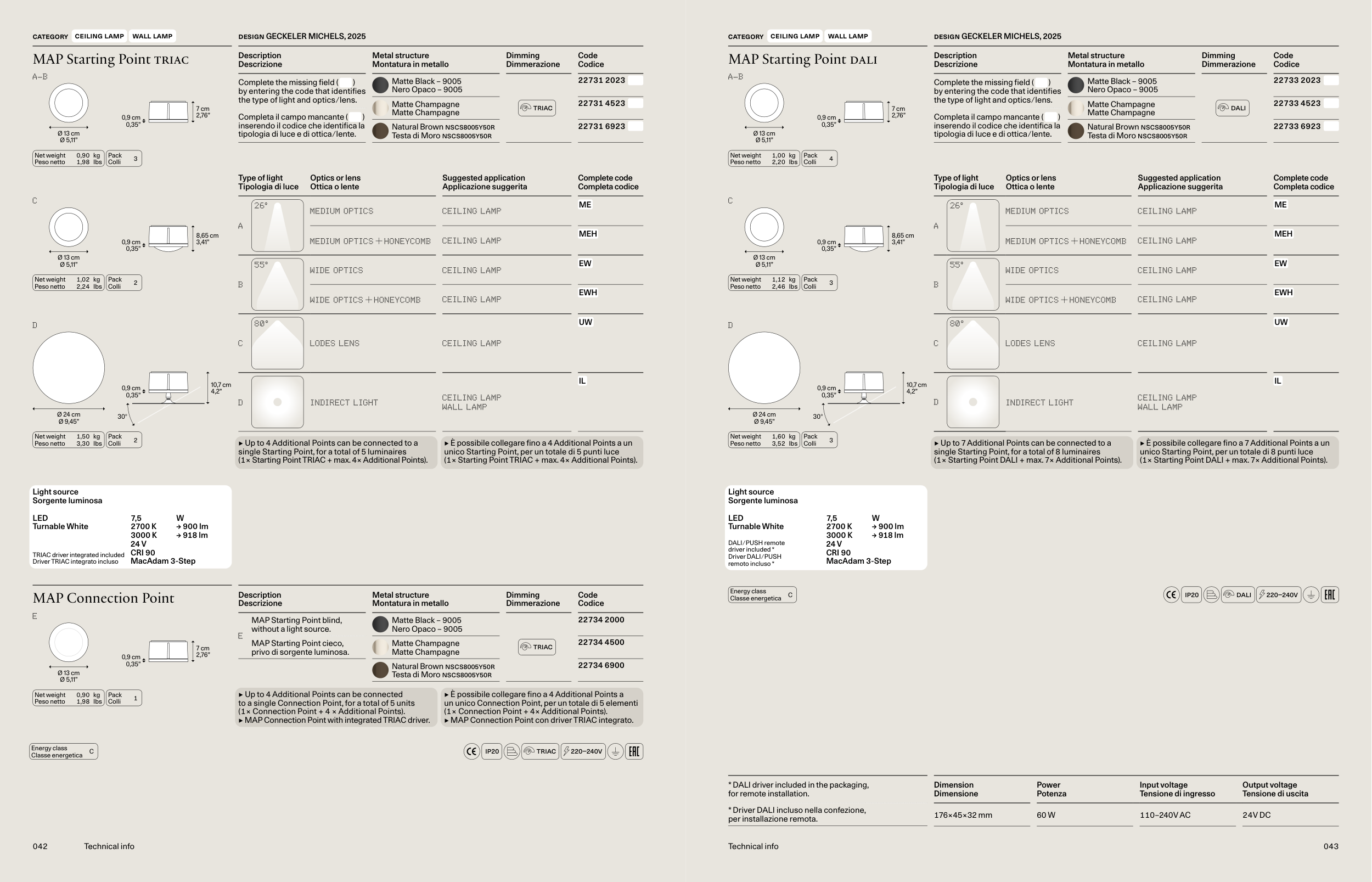

MAP Starting Point dali
design GECKELER MICHELS, 2025
LED
Turnable White
DALI ⁄ PUSH remote
driver included *
Driver DALI ⁄ PUSH
remoto incluso *
7,5
W
2700 K
→ 900 lm
3000 K
→ 918 lm
24 V
CRI 90
MacAdam 3-Step
Light source
Sorgente luminosa
Complete the missing field ( )
by entering the code that identifies
the type of light and optics ⁄ lens.
Completa il campo mancante ( )
inserendo il codice che identifica la
tipologia di luce e di ottica ⁄ lente.
Dimming
Dimmerazione
Metal structure
Montatura in metallo
Description
Descrizione
dali
Matte Black – 9005
Nero Opaco – 9005
Matte Champagne
Matte Champagne
Natural Brown nscs8005y50r
Testa di Moro nscs8005y50r
Code
Codice
category
ceiling lamp
wall lamp
Energy class
Classe energetica
C
ip20
220–240V
dali
22733 2023
22733 4523
22733 6923
A
26°
MEDIUM OPTICS
MEDIUM OPTICS
HONEYCOMB
B
55°
WIDE OPTICS
WIDE OPTICS
HONEYCOMB
C
80°
LODES LENS
D
INDIRECT LIGHT
CEILING LAMP
CEILING LAMP
CEILING LAMP
CEILING LAMP
CEILING LAMP
CEILING LAMP
WALL LAMP
Suggested application
Applicazione suggerita
ME
MEH
EW
EWH
UW
IL
Complete code
Completa codice
MAP Starting Point triac
design GECKELER MICHELS, 2025
LED
Turnable White
TRIAC driver integrated included
Driver TRIAC integrato incluso
7,5
W
2700 K
→ 900 lm
3000 K
→ 918 lm
24 V
CRI 90
MacAdam 3-Step
Light source
Sorgente luminosa
Energy class
Classe energetica
C
triac
ip20
220–240V
Dimming
Dimmerazione
Metal structure
Montatura in metallo
Description
Descrizione
triac
Matte Black – 9005
Nero Opaco – 9005
Matte Champagne
Matte Champagne
Natural Brown nscs8005y50r
Testa di Moro nscs8005y50r
Code
Codice
22731 2023
22731 4523
22731 6923
A
26°
MEDIUM OPTICS
MEDIUM OPTICS
HONEYCOMB
B
55°
WIDE OPTICS
WIDE OPTICS
HONEYCOMB
C
80°
LODES LENS
D
INDIRECT LIGHT
CEILING LAMP
CEILING LAMP
CEILING LAMP
CEILING LAMP
CEILING LAMP
CEILING LAMP
WALL LAMP
Suggested application
Applicazione suggerita
ME
MEH
EW
EWH
UW
IL
Complete code
Completa codice
Complete the missing field ( )
by entering the code that identifies
the type of light and optics ⁄ lens.
Completa il campo mancante ( )
inserendo il codice che identifica la
tipologia di luce e di ottica ⁄ lente.
C
Ø 13 cm
Ø 5,11”
8,65 cm
3,41”
0,9 cm
0,35”
C
Ø 13 cm
Ø 5,11”
8,65 cm
3,41”
0,9 cm
0,35”
Pack
Colli
3
Net weight
Peso netto
0,90
1,98
kg
Ibs
A-B
7 cm
2,76”
0,9 cm
0,35”
Ø 13 cm
Ø 5,11”
A-B
7 cm
2,76”
0,9 cm
0,35”
Ø 13 cm
Ø 5,11”
category
ceiling lamp
wall lamp
D
30°
10,7 cm
4,2”
0,9 cm
0,35”
Ø 24 cm
Ø 9,45”
D
30°
10,7 cm
4,2”
0,9 cm
0,35”
Ø 24 cm
Ø 9,45”
▲ Up to 4 Additional Points can be connected to a
single Starting Point, for a total of 5 luminaires
(1× Starting Point TRIAC + max. 4× Additional Points).
▲ È possibile collegare fino a 4 Additional Points a un
unico Starting Point, per un totale di 5 punti luce
(1× Starting Point TRIAC + max. 4× Additional Points).
▲ Up to 7 Additional Points can be connected to a
single Starting Point, for a total of 8 luminaires
(1× Starting Point DALI + max. 7× Additional Points).
▲ È possibile collegare fino a 7 Additional Points a un
unico Starting Point, per un totale di 8 punti luce
(1× Starting Point DALI + max. 7× Additional Points).
MAP Connection Point
Dimming
Dimmerazione
triac
Metal structure
Montatura in metallo
Description
Descrizione
Matte Black – 9005
Nero Opaco – 9005
Matte Champagne
Matte Champagne
Natural Brown nscs8005y50r
Testa di Moro nscs8005y50r
Code
Codice
22734 2000
22734 4500
22734 6900
E
MAP Starting Point blind,
without a light source.
MAP Starting Point cieco,
privo di sorgente luminosa.
Pack
Colli
1
Net weight
Peso netto
0,90
1,98
kg
Ibs
E
7 cm
2,76”
0,9 cm
0,35”
Ø 13 cm
Ø 5,11”
▲ Up to 4 Additional Points can be connected
to a single Connection Point, for a total of 5 units
(1× Connection Point + 4 × Additional Points).
▲ MAP Connection Point with integrated TRIAC driver.
▲ È possibile collegare fino a 4 Additional Points a
un unico Connection Point, per un totale di 5 elementi
(1× Connection Point + 4× Additional Points).
▲ MAP Connection Point con driver TRIAC integrato.
Type of light
Tipologia di luce
Optics or lens
Ottica o lente
Type of light
Tipologia di luce
Optics or lens
Ottica o lente
176×45×32 mm
60 W
110–240V AC
24V DC
* DALI driver included in the packaging,
for remote installation.
* Driver DALI incluso nella confezione,
per installazione remota.
Dimension
Dimensione
Power
Potenza
Input voltage
Tensione di ingresso
Output voltage
Tensione di uscita
Pack
Colli
2
Net weight
Peso netto
1,02
2,24
kg
Ibs
Pack
Colli
2
Net weight
Peso netto
1,50
3,30
kg
Ibs
Pack
Colli
4
Net weight
Peso netto
1,00
2,20
kg
Ibs
Pack
Colli
3
Net weight
Peso netto
1,12
2,46
kg
Ibs
Pack
Colli
3
Net weight
Peso netto
1,60
3,52
kg
Ibs
