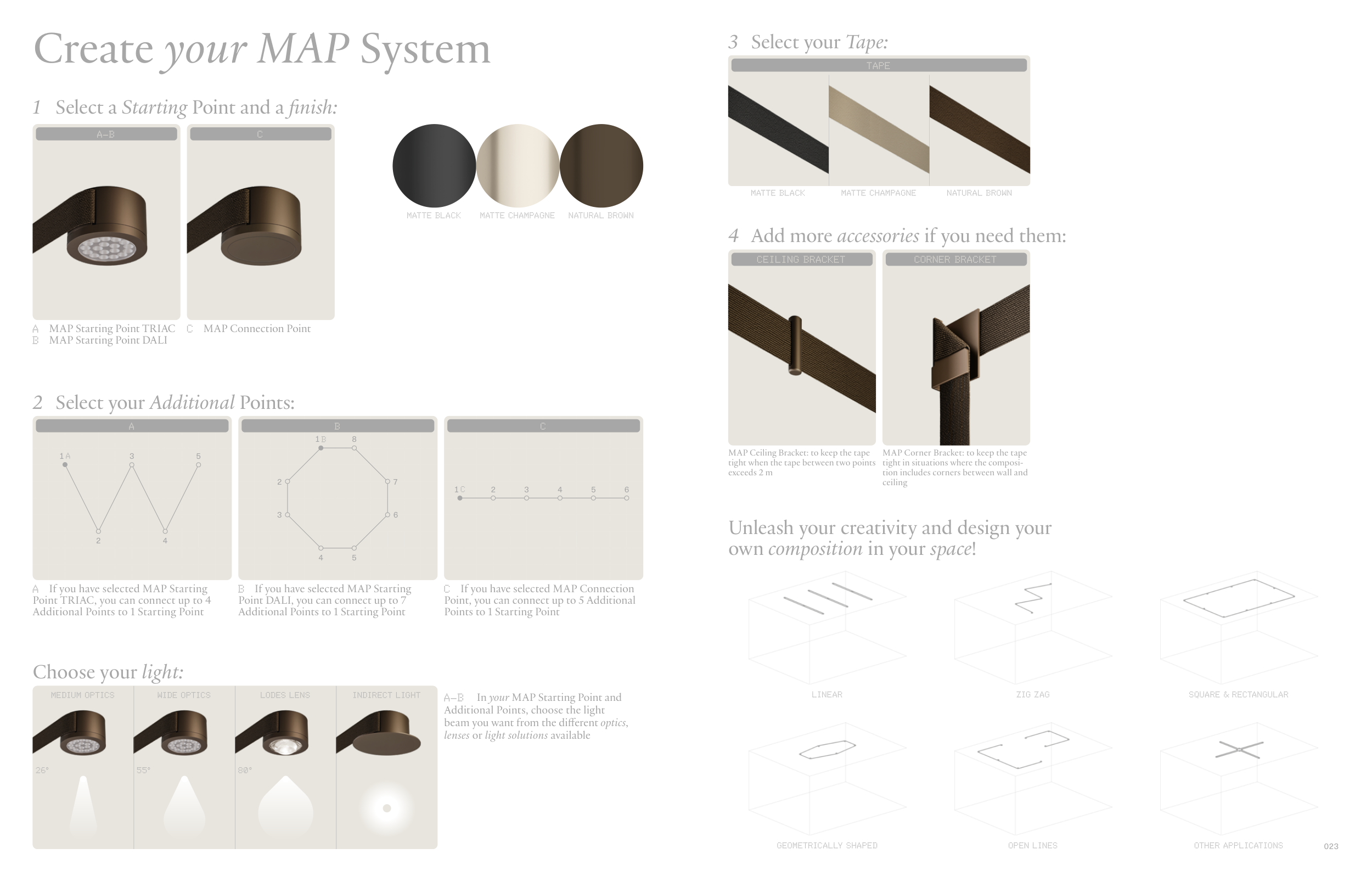

Create your MAP System
LINEAR
GEOMETRICALLY SHAPED
ZIG ZAG
OPEN LINES
SQUARE & RECTANGULAR
OTHER APPLICATIONS
023
A MAP Starting Point TRIAC
B MAP Starting Point DALI
C
A-B
C MAP Connection Point
1 Select a Starting Point and a finish:
MATTE CHAMPAGNE
MATTE BLACK
NATURAL BROWN
A If you have selected MAP Starting
Point TRIAC, you can connect up to 4
Additional Points to 1 Starting Point
B If you have selected MAP Starting
Point DALI, you can connect up to 7
Additional Points to 1 Starting Point
C If you have selected MAP Connection
Point, you can connect up to 5 Additional
Points to 1 Starting Point
2 Select your Additional Points:
1 B
8
7
6
2
3
4
5
1 C
2
3
4
5
6
1 A
3
5
2
4
A
B
C
3 Select your Tape:
MATTE BLACK
MATTE CHAMPAGNE
NATURAL BROWN
TAPE
4 Add more accessories if you need them:
MAP Ceiling Bracket: to keep the tape
tight when the tape between two points
exceeds 2 m
MAP Corner Bracket: to keep the tape
tight in situations where the composi-
tion includes corners between wall and
ceiling
CEILING BRACKET
CORNER BRACKET
Unleash your creativity and design your
own composition in your space!
26°
MEDIUM OPTICS
55°
WIDE OPTICS
80°
LODES LENS
INDIRECT LIGHT
A-B In your MAP Starting Point and
Additional Points, choose the light
beam you want from the different optics,
lenses or light solutions available
Choose your light:
