1200 lx
1000 lx
900 lx
750 lx
750 lx
UGR<19

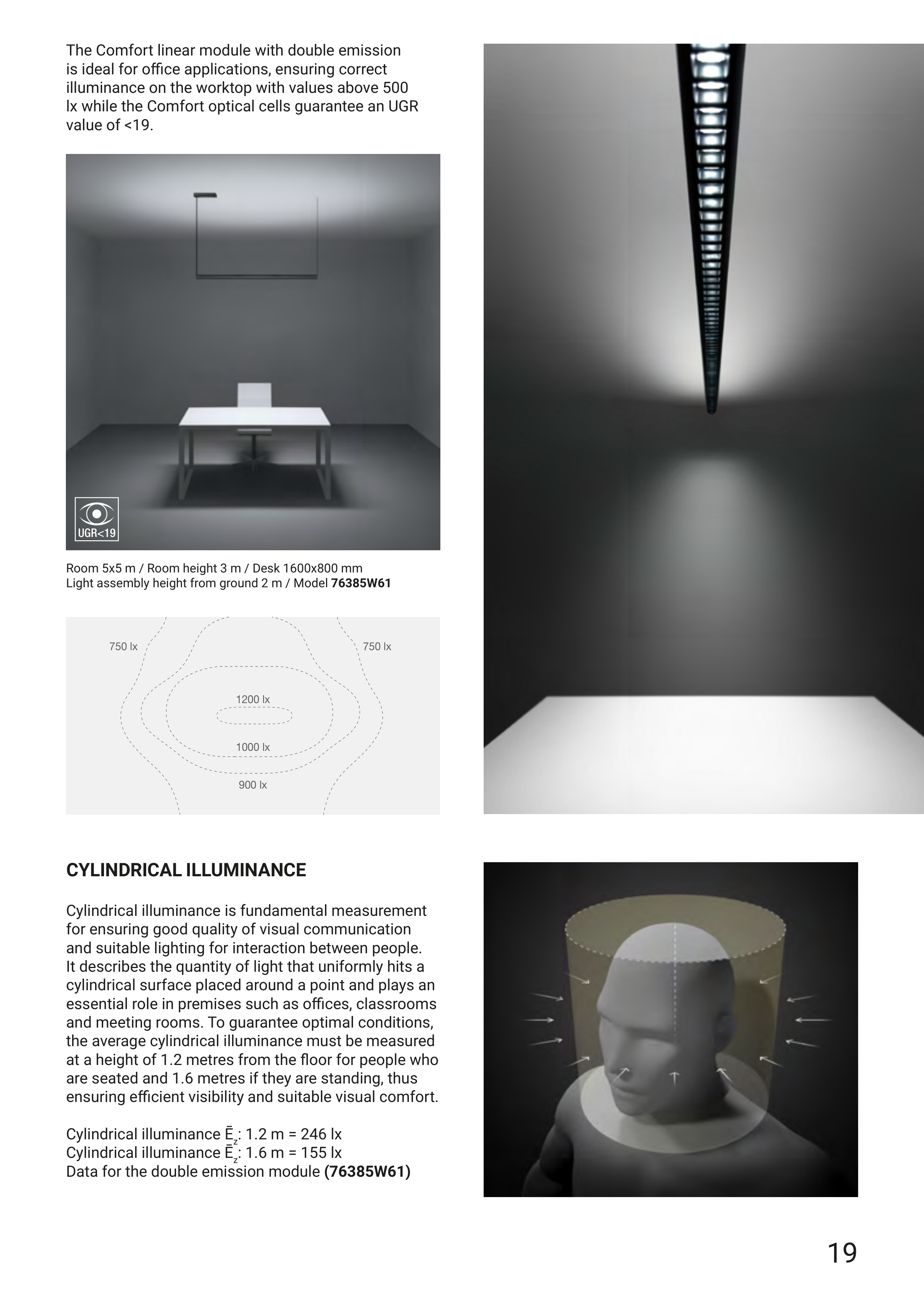

The Comfort linear module with double emission
is ideal for office applications, ensuring correct
illuminance on the worktop with values above 500
lx while the Comfort optical cells guarantee an UGR
value of <19.
Room 5x5 m / Room height 3 m / Desk 1600x800 mm
Light assembly height from ground 2 m / Model 76385W61
CYLINDRICAL ILLUMINANCE
Cylindrical illuminance is fundamental measurement
for ensuring good quality of visual communication
and suitable lighting for interaction between people.
It describes the quantity of light that uniformly hits a
cylindrical surface placed around a point and plays an
essential role in premises such as offices, classrooms
and meeting rooms. To guarantee optimal conditions,
the average cylindrical illuminance must be measured
at a height of 1.2 metres from the floor for people who
are seated and 1.6 metres if they are standing, thus
ensuring efficient visibility and suitable visual comfort.
Cylindrical illuminance Ēz: 1.2 m = 246 lx
Cylindrical illuminance Ēz: 1.6 m = 155 lx
Data for the double emission module (76385W61)
