550 lx
525 lx
500 lx
475 lx
460 lx
850 lx
800 lx
750 lx
700 lx
650 lx
UGR<19
COMFORT
LIGHT
MODULE
A
B
Diffused indirect source of the Comfort module with double emission
Optical group of the direct part of the Comfort module, single and double emission
Room 4x4 m / Room height 2.8 m / Adjustable desk 1000x600
mm / Light assembly height from ground 2.8 m / Single emission
module L.1188 mm - 24W DC - 3000K - CRI90 (76381W50)
A Reference height 740 mm / Average lighting on worktop Ēm= 500 lx
B Reference height 1190 mm / Average lighting on worktop Ēm= 730 lx

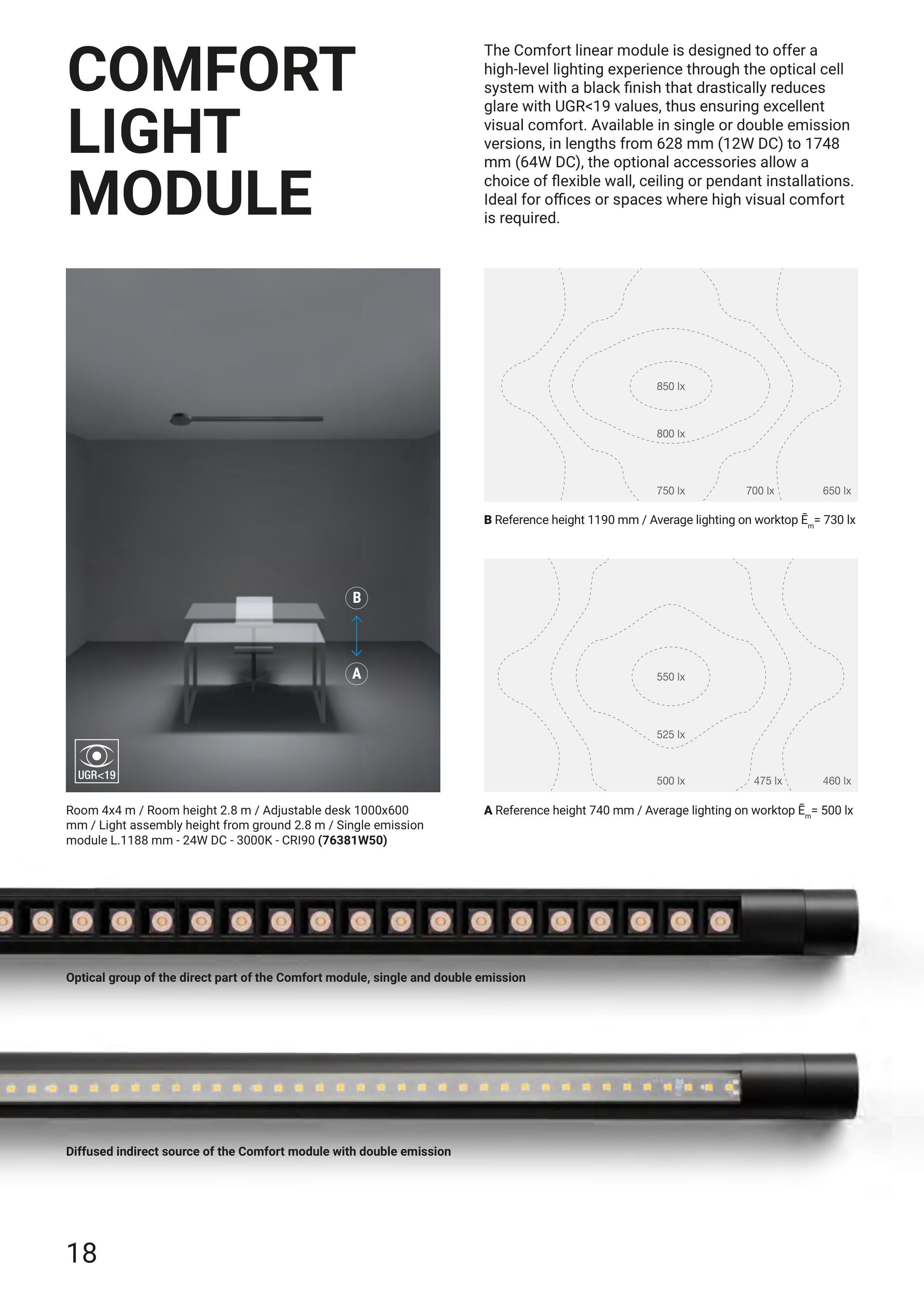

The Comfort linear module is designed to offer a
high-level lighting experience through the optical cell
system with a black finish that drastically reduces
glare with UGR<19 values, thus ensuring excellent
visual comfort. Available in single or double emission
versions, in lengths from 628 mm (12W DC) to 1748
mm (64W DC), the optional accessories allow a
choice of flexible wall, ceiling or pendant installations.
Ideal for offices or spaces where high visual comfort
is required.
18
