Connect the power cables (including
signal cables for DALI management).
Line the multiple rose element up with the
fastening support.
Complete the operation by tightening the
rose element in a clockwise direction.
Thread the wires through and fasten the
multiple rose support.
Secure the multiple rose connector. The
accessory can connect up to 8 connectors
(min. 45°).
Insert and secure the linear module.

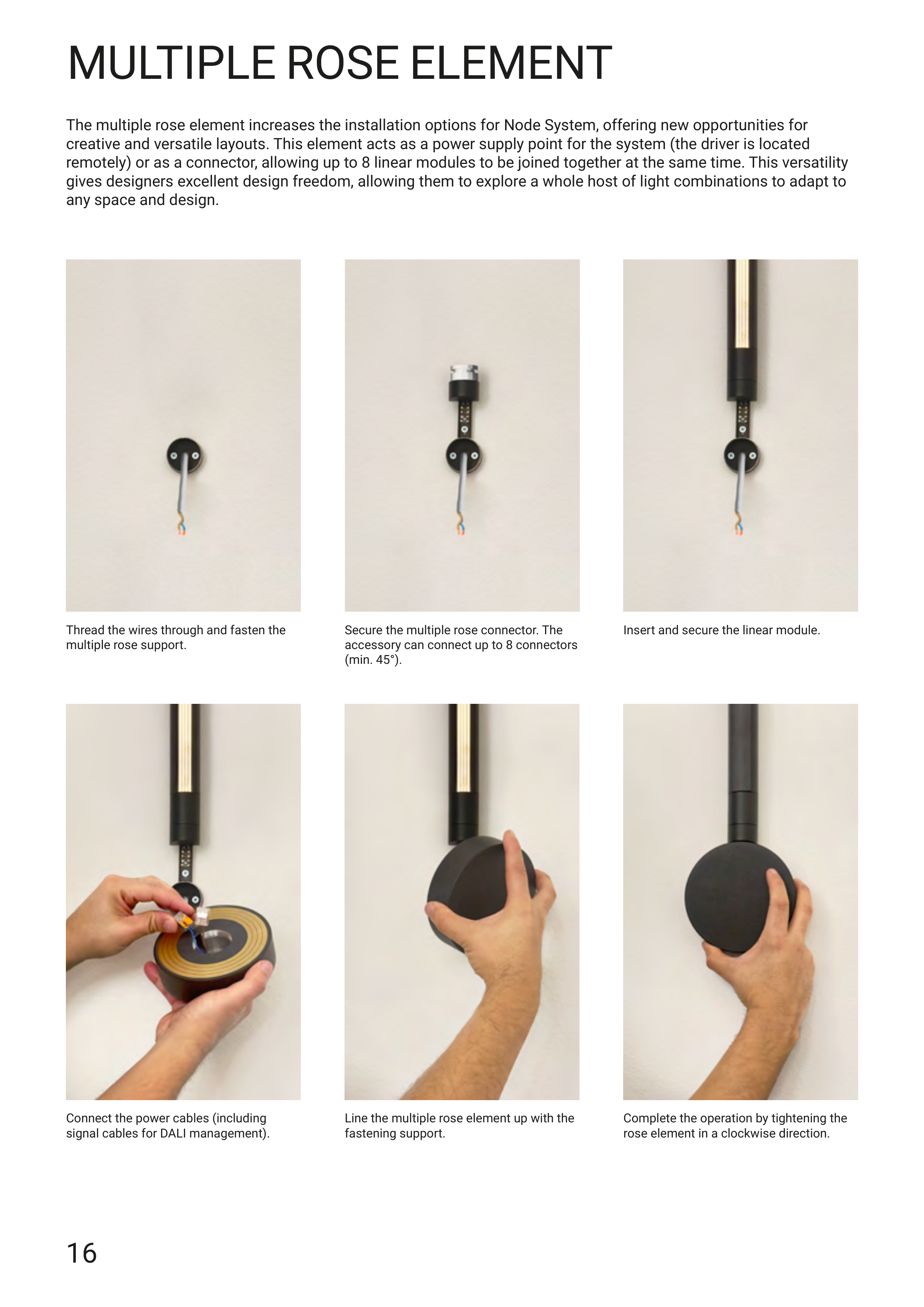

MULTIPLE ROSE ELEMENT
The multiple rose element increases the installation options for Node System, offering new opportunities for
creative and versatile layouts. This element acts as a power supply point for the system (the driver is located
remotely) or as a connector, allowing up to 8 linear modules to be joined together at the same time. This versatility
gives designers excellent design freedom, allowing them to explore a whole host of light combinations to adapt to
any space and design.
