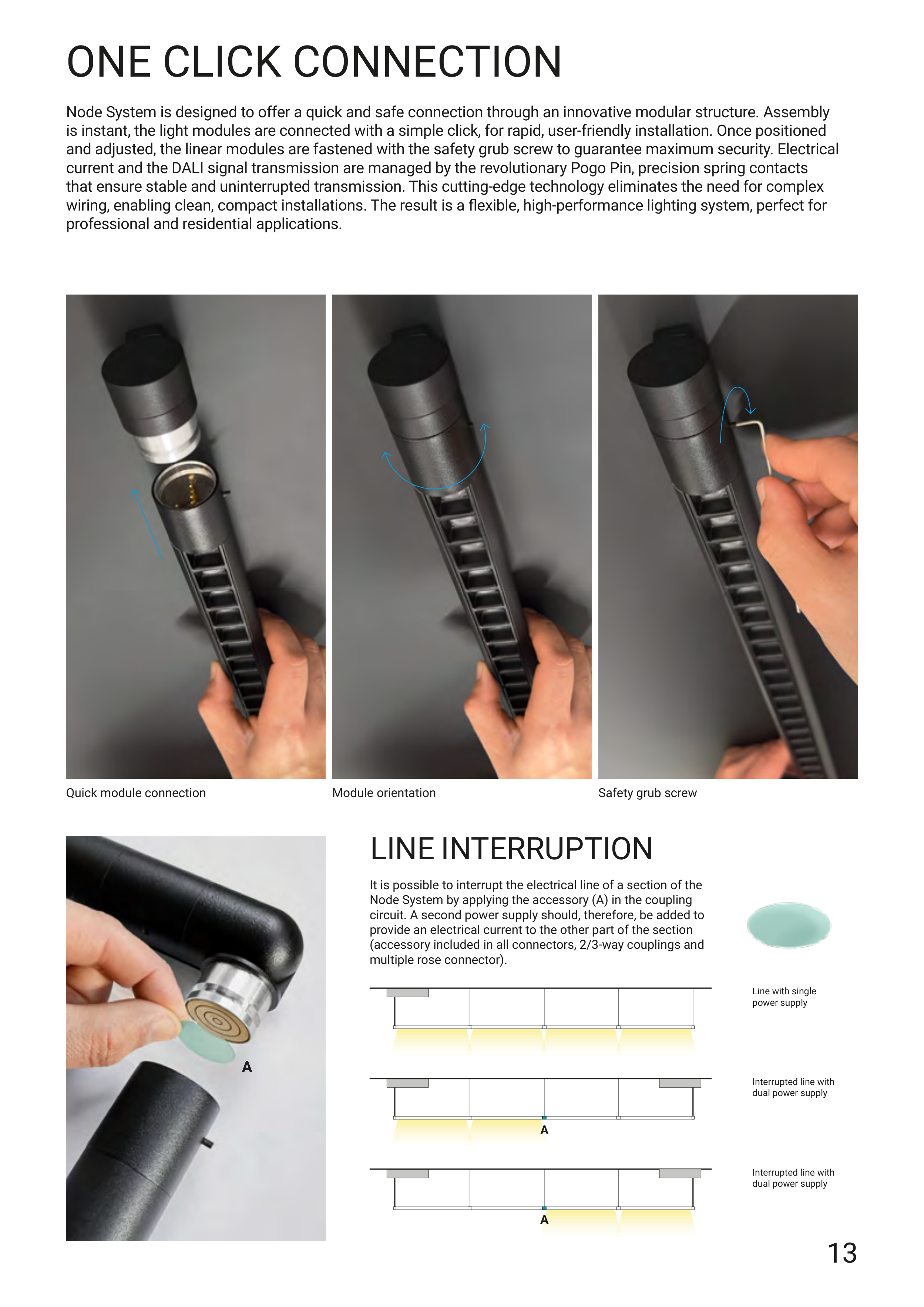

ONE CLICK CONNECTION
Node System is designed to offer a quick and safe connection through an innovative modular structure. Assembly
is instant, the light modules are connected with a simple click, for rapid, user-friendly installation. Once positioned
and adjusted, the linear modules are fastened with the safety grub screw to guarantee maximum security. Electrical
current and the DALI signal transmission are managed by the revolutionary Pogo Pin, precision spring contacts
that ensure stable and uninterrupted transmission. This cutting-edge technology eliminates the need for complex
wiring, enabling clean, compact installations. The result is a flexible, high-performance lighting system, perfect for
professional and residential applications.
Quick module connection
Module orientation
Safety grub screw
LINE INTERRUPTION
It is possible to interrupt the electrical line of a section of the
Node System by applying the accessory (A) in the coupling
circuit. A second power supply should, therefore, be added to
provide an electrical current to the other part of the section
(accessory included in all connectors, 2/3-way couplings and
multiple rose connector).
Line with single
power supply
Interrupted line with
dual power supply
Interrupted line with
dual power supply
13
