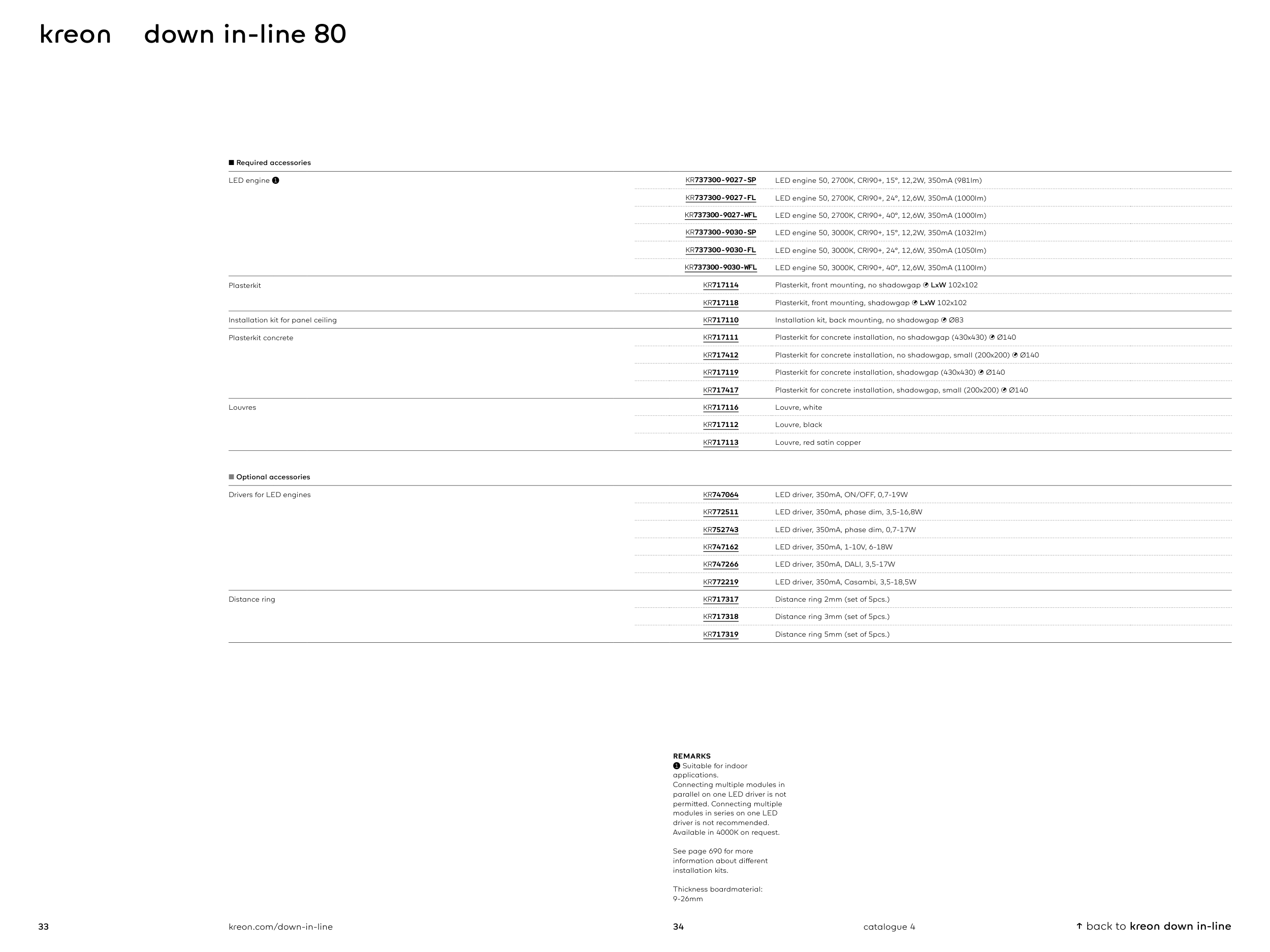

kreon down in-line 80
↑ back to kreon down in-line
catalogue 4
kreon.com/down-in-line
REMARKS
➊ Suitable for indoor
applications.
Connecting multiple modules in
parallel on one LED driver is not
permitted. Connecting multiple
modules in series on one LED
driver is not recommended.
Available in 4000K on request.
See page 690 for more
information about different
installation kits.
Thickness boardmaterial:
9-26mm
■ Required accessories
LED engine ➊
KR737300-9027-SP
LED engine 50, 2700K, CRI90+, 15°, 12,2W, 350mA (981lm)
KR737300-9027-FL
LED engine 50, 2700K, CRI90+, 24°, 12,6W, 350mA (1000lm)
KR737300-9027-WFL
LED engine 50, 2700K, CRI90+, 40°, 12,6W, 350mA (1000lm)
KR737300-9030-SP
LED engine 50, 3000K, CRI90+, 15°, 12,2W, 350mA (1032lm)
KR737300-9030-FL
LED engine 50, 3000K, CRI90+, 24°, 12,6W, 350mA (1050lm)
KR737300-9030-WFL
LED engine 50, 3000K, CRI90+, 40°, 12,6W, 350mA (1100lm)
Plasterkit
KR717114
Plasterkit, front mounting, no shadowgap 1 LxW 102x102
KR717118
Plasterkit, front mounting, shadowgap 1 LxW 102x102
Installation kit for panel ceiling
KR717110
Installation kit, back mounting, no shadowgap 1 Ø83
Plasterkit concrete
KR717111
Plasterkit for concrete installation, no shadowgap (430x430) 1 Ø140
KR717412
Plasterkit for concrete installation, no shadowgap, small (200x200) 1 Ø140
KR717119
Plasterkit for concrete installation, shadowgap (430x430) 1 Ø140
KR717417
Plasterkit for concrete installation, shadowgap, small (200x200) 1 Ø140
Louvres
KR717116
Louvre, white
KR717112
Louvre, black
KR717113
Louvre, red satin copper
■ Optional accessories
Drivers for LED engines
KR747064
LED driver, 350mA, ON/OFF, 0,7-19W
KR772511
LED driver, 350mA, phase dim, 3,5-16,8W
KR752743
LED driver, 350mA, phase dim, 0,7-17W
KR747162
LED driver, 350mA, 1-10V, 6-18W
KR747266
LED driver, 350mA, DALI, 3,5-17W
KR772219
LED driver, 350mA, Casambi, 3,5-18,5W
Distance ring
KR717317
Distance ring 2mm (set of 5pcs.)
KR717318
Distance ring 3mm (set of 5pcs.)
KR717319
Distance ring 5mm (set of 5pcs.)
