30
29

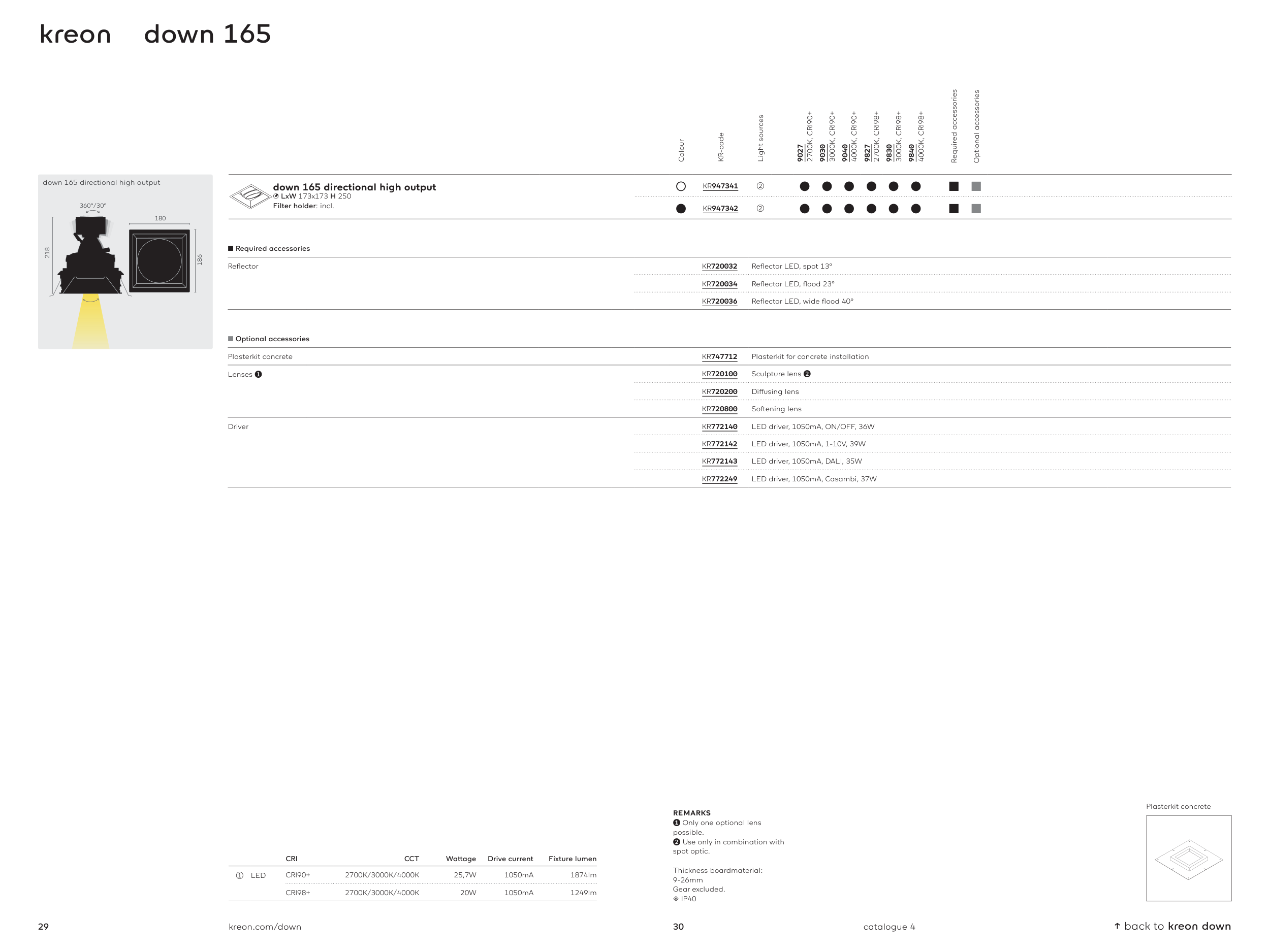

kreon down 165
360°/30°
218
186
180
down 165 directional high output
↑ back to kreon down
catalogue 4
kreon.com/down
CRI
CCT
Wattage
Drive current
Fixture lumen
1
LED
CRI90+
2700K/3000K/4000K
25,7W
1050mA
1874lm
CRI98+
2700K/3000K/4000K
20W
1050mA
1249lm
REMARKS
➊ Only one optional lens
possible.
➋ Use only in combination with
spot optic.
Thickness boardmaterial:
9-26mm
Gear excluded.
4 IP40
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
9040
4000K, CRI90+
9827
2700K, CRI98+
9830
3000K, CRI98+
9840
4000K, CRI98+
Required accessories
Optional accessories
down 165 directional high output
1 LxW 173x173 H 250
Filter holder: incl.
○
KR947341
➁
●
●
●
●
●
●
■
■
●
KR947342
➁
●
●
●
●
●
●
■
■
■ Required accessories
Reflector
KR720032
Reflector LED, spot 13°
KR720034
Reflector LED, flood 23°
KR720036
Reflector LED, wide flood 40°
■ Optional accessories
Plasterkit concrete
KR747712
Plasterkit for concrete installation
Lenses ➊
KR720100
Sculpture lens ➋
KR720200
Diffusing lens
KR720800
Softening lens
Driver
KR772140
LED driver, 1050mA, ON/OFF, 36W
KR772142
LED driver, 1050mA, 1-10V, 39W
KR772143
LED driver, 1050mA, DALI, 35W
KR772249
LED driver, 1050mA, Casambi, 37W
Plasterkit concrete
