0m
1m
2m
3m
4m
5m

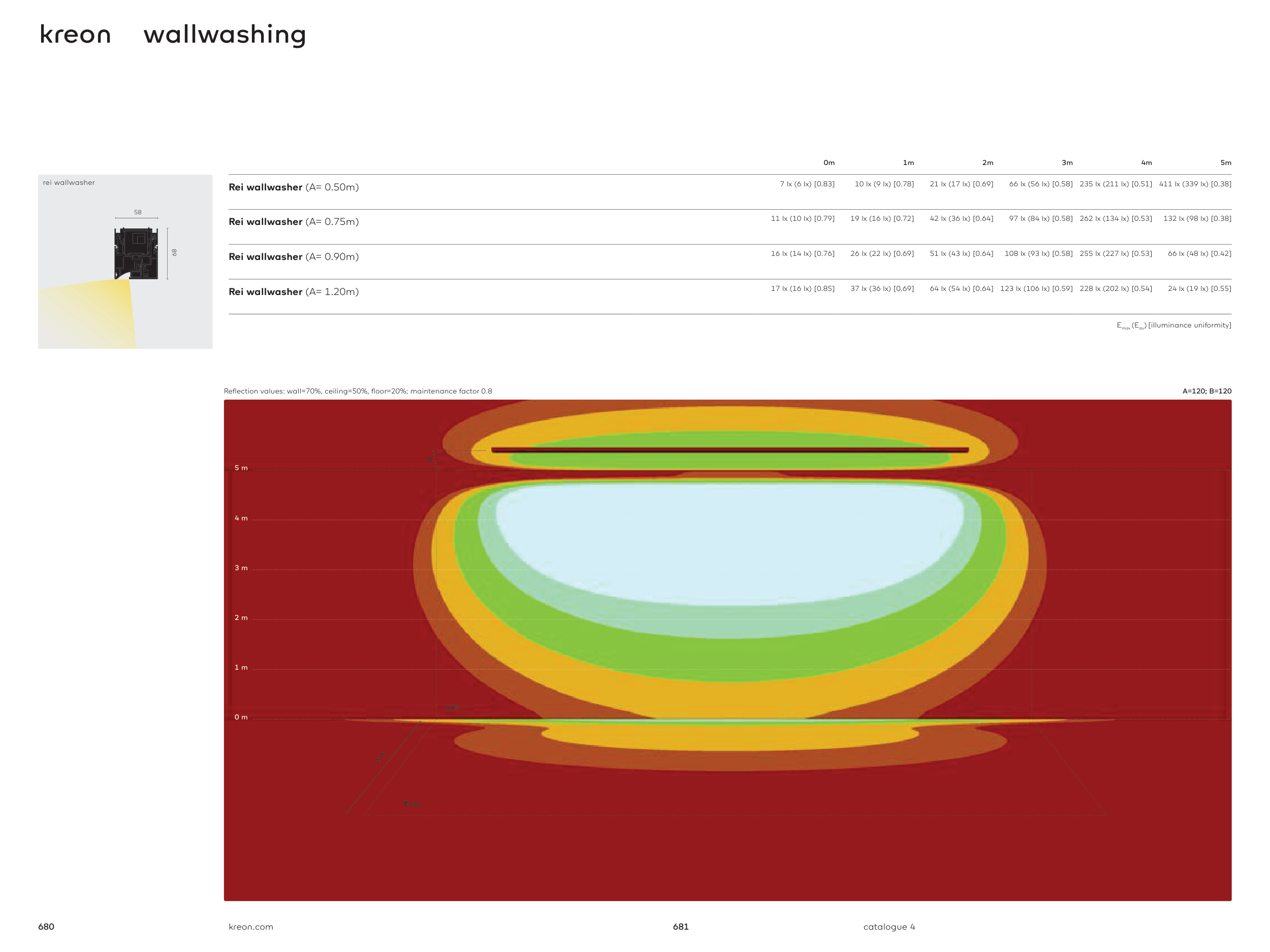

Rei wallwasher (A= 0.50m)
7 lx (6 lx) [0.83]
10 lx (9 lx) [0.78]
21 lx (17 lx) [0.69]
66 lx (56 lx) [0.58]
235 lx (211 lx) [0.51]
411 lx (339 lx) [0.38]
Rei wallwasher (A= 0.75m)
11 lx (10 lx) [0.79]
19 lx (16 lx) [0.72]
42 lx (36 lx) [0.64]
97 lx (84 lx) [0.58]
262 lx (134 lx) [0.53]
132 lx (98 lx) [0.38]
Rei wallwasher (A= 0.90m)
16 lx (14 lx) [0.76]
26 lx (22 lx) [0.69]
51 lx (43 lx) [0.64]
108 lx (93 lx) [0.58]
255 lx (227 lx) [0.53]
66 lx (48 lx) [0.42]
Rei wallwasher (A= 1.20m)
17 lx (16 lx) [0.85]
37 lx (36 lx) [0.69]
64 lx (54 lx) [0.64]
123 lx (106 lx) [0.59]
228 lx (202 lx) [0.54]
24 lx (19 lx) [0.55]
Emax (Eav) [illuminance uniformity]
68
58
rei wallwasher
5 m
A
wall
floor
2 m
4 m
3 m
2 m
1 m
0 m
Reflection values: wall=70%, ceiling=50%, floor=20%; maintenance factor 0.8
A=120; B=120
