675
674
kreon.com
177
16
60
Ø44
holon 40 single wallwasher on-track
177
16
60
44
prologe 40 single wallwasher on-track
Reflection values: wall=70%, ceiling=50%, floor=20%; maintenance factor 0.8
5 m
A
wall
floor
2 m
4 m
3 m
2 m
1 m
0 m
B
catalogue 4
0m
1m
2m
3m
4m
5m
Module 40 wallwasher on 48V track, recessed mounted (A= 0.50m, B= 0.50m)
7 lx (6 lx) [0.85]
10 lx (9 lx) [0.81]
21 lx (20 lx) [0.78]
83 lx (79 lx) [0.87]
344 lx (325 lx) [0.93]
131 lx (92 lx) [0.61]
Module 40 wallwasher on 48V track, recessed mounted (A= 0.75m, B= 0.75m)
15 lx (14 lx) [0.85]
15 lx (14 lx) [0.81]
38 lx (36 lx) [0.86]
100 lx (97 lx) [0.94]
34 lx (22 lx) [0.62]
8 lx (8 lx) [0.81]
Module 40 wallwasher on 48V track, recessed mounted (A= 0.90m, B= 0.90m)
11 lx (10 lx) [0.82]
19 lx (18 lx) [0.84]
44 lx (42 lx) [0.89]
94 lx (90 lx) [0.95]
132 lx (129 lx) [0.97]
16 lx (11 lx) [0.79]
Module 40 wallwasher on 48V track, recessed mounted (A= 1.20m, B= 0.90m)
11 lx (10 lx) [0.82]
34 lx (32 lx) [0.82]
59 lx (57 lx) [0.89]
91 lx (89 lx) [0.96]
97 lx (95 lx) [0.98]
8 lx (7 lx) [0.88]
Emax (Eav) [illuminance uniformity]

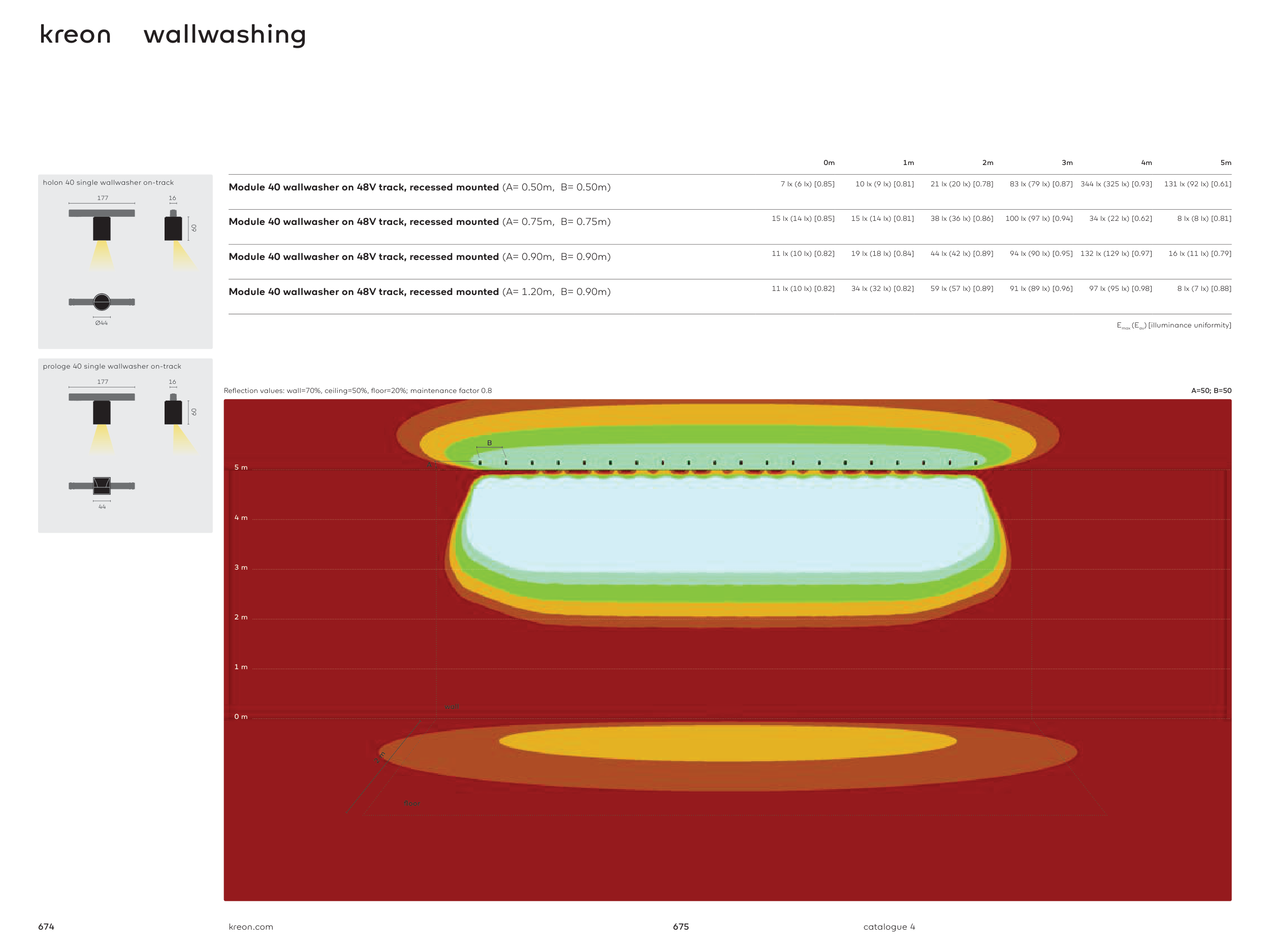

kreon wallwashing
A=50; B=50
