kreon.com/48V-track

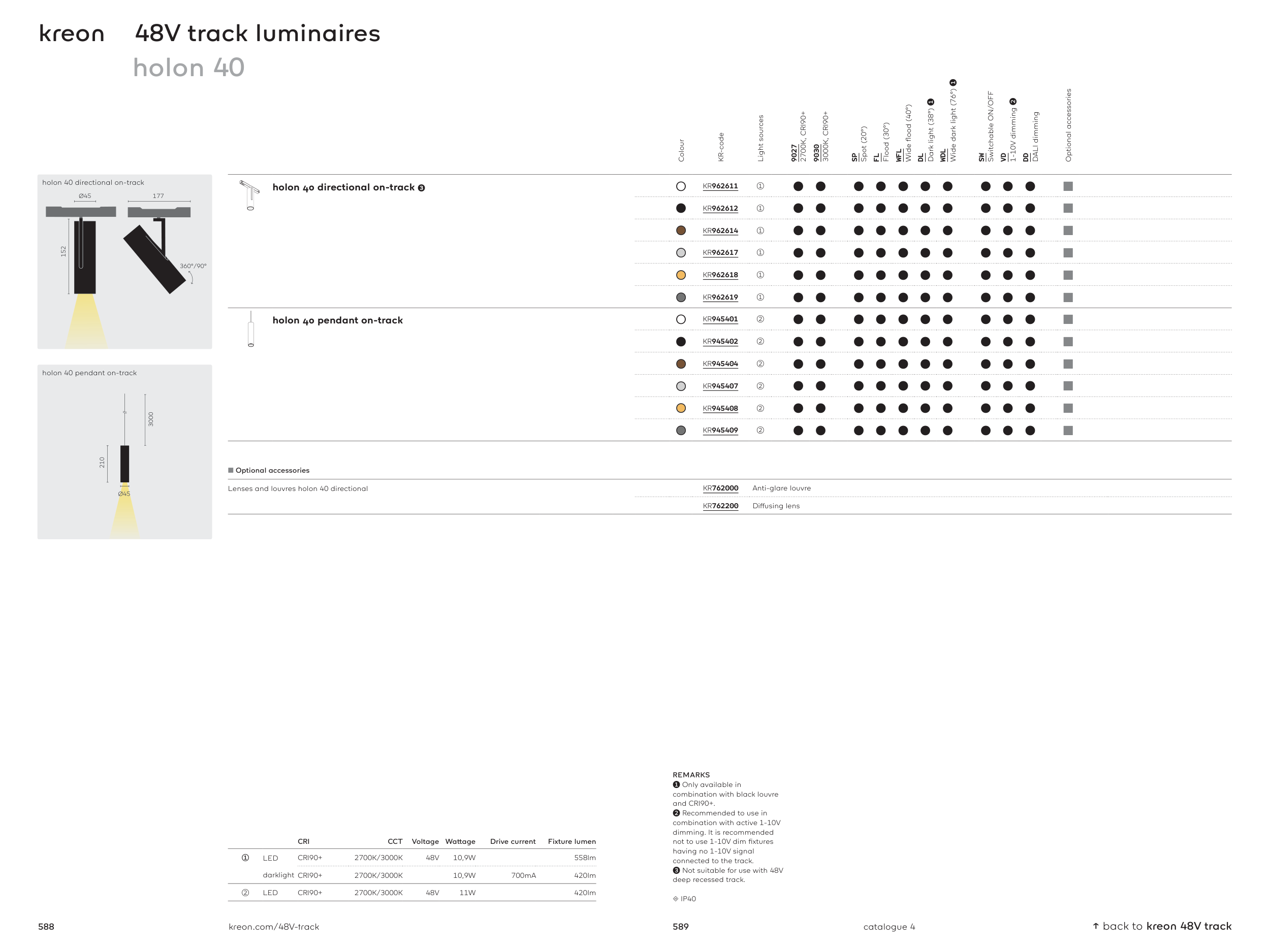

kreon 48V track luminaires
holon 40
Ø45
177
152
360°/90°
holon 40 directional on-track
210
3000
Ø45
holon 40 pendant on-track
↑ back to kreon 48V track
catalogue 4
CRI
CCT
Voltage
Wattage
Drive current
Fixture lumen
➀
LED
CRI90+
2700K/3000K
48V
10,9W
558lm
darklight CRI90+
2700K/3000K
10,9W
700mA
420lm
➁
LED
CRI90+
2700K/3000K
48V
11W
420lm
REMARKS
➊ Only available in
combination with black louvre
and CRI90+.
➋ Recommended to use in
combination with active 1-10V
dimming. It is recommended
not to use 1-10V dim fixtures
having no 1-10V signal
connected to the track.
➌ Not suitable for use with 48V
deep recessed track.
4 IP40
■ Optional accessories
Lenses and louvres holon 40 directional
KR762000
Anti-glare louvre
KR762200
Diffusing lens
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
SP
Spot (20°)
FL
Flood (30°)
WFL
Wide flood (40°)
DL
Dark light (38°) ➊
WDL
Wide dark light (76°) ➊
SW
Switchable ON/OFF
VD
1-10V dimming ➋
DD
DALI dimming
Optional accessories
holon 40 directional on-track ➌
○
KR962611
➀
●
●
●
●
●
●
●
●
●
●
■
●
KR962612
➀
●
●
●
●
●
●
●
●
●
●
■
●
KR962614
➀
●
●
●
●
●
●
●
●
●
●
■
●
KR962617
➀
●
●
●
●
●
●
●
●
●
●
■
●
KR962618
➀
●
●
●
●
●
●
●
●
●
●
■
●
KR962619
➀
●
●
●
●
●
●
●
●
●
●
■
holon 40 pendant on-track
○
KR945401
➁
●
●
●
●
●
●
●
●
●
●
■
●
KR945402
➁
●
●
●
●
●
●
●
●
●
●
■
●
KR945404
➁
●
●
●
●
●
●
●
●
●
●
■
●
KR945407
➁
●
●
●
●
●
●
●
●
●
●
■
●
KR945408
➁
●
●
●
●
●
●
●
●
●
●
■
●
KR945409
➁
●
●
●
●
●
●
●
●
●
●
■
