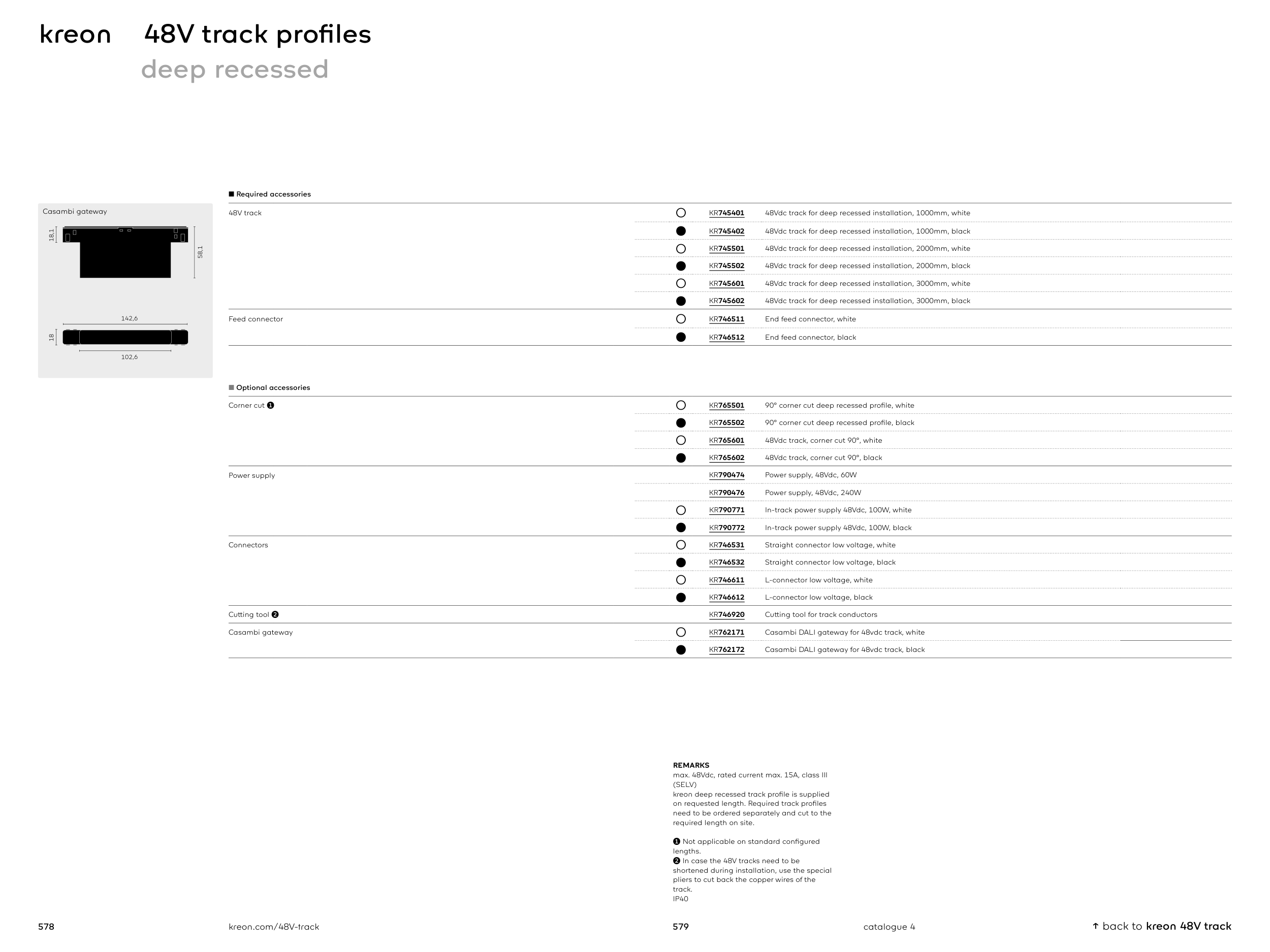

kreon 48V track profiles
deep recessed
18
18,1
58,1
142,6
102,6
Casambi gateway
↑ back to kreon 48V track
catalogue 4
■ Required accessories
48V track
○
KR745401
48Vdc track for deep recessed installation, 1000mm, white
●
KR745402
48Vdc track for deep recessed installation, 1000mm, black
○
KR745501
48Vdc track for deep recessed installation, 2000mm, white
●
KR745502
48Vdc track for deep recessed installation, 2000mm, black
○
KR745601
48Vdc track for deep recessed installation, 3000mm, white
●
KR745602
48Vdc track for deep recessed installation, 3000mm, black
Feed connector
○
KR746511
End feed connector, white
●
KR746512
End feed connector, black
■ Optional accessories
Corner cut ➊
○
KR765501
90° corner cut deep recessed profile, white
●
KR765502
90° corner cut deep recessed profile, black
○
KR765601
48Vdc track, corner cut 90°, white
●
KR765602
48Vdc track, corner cut 90°, black
Power supply
KR790474
Power supply, 48Vdc, 60W
KR790476
Power supply, 48Vdc, 240W
○
KR790771
In-track power supply 48Vdc, 100W, white
●
KR790772
In-track power supply 48Vdc, 100W, black
Connectors
○
KR746531
Straight connector low voltage, white
●
KR746532
Straight connector low voltage, black
○
KR746611
L-connector low voltage, white
●
KR746612
L-connector low voltage, black
Cutting tool ➋
KR746920
Cutting tool for track conductors
Casambi gateway
○
KR762171
Casambi DALI gateway for 48vdc track, white
●
KR762172
Casambi DALI gateway for 48vdc track, black
REMARKS
max. 48Vdc, rated current max. 15A, class III
(SELV)
kreon deep recessed track profile is supplied
on requested length. Required track profiles
need to be ordered separately and cut to the
required length on site.
➊ Not applicable on standard configured
lengths.
➋ In case the 48V tracks need to be
shortened during installation, use the special
pliers to cut back the copper wires of the
track.
IP40
