560
561
diapason on-track
580
holon & prologe
on-track
586
oran pendant
on-track
596
holon & prologe
downlight on-track
602
lini 10 on-track
606
48V track profile
570
40
holon 40
holon 20
prologe 40
holon 60
craft, small bulb
stone, long cylinder
stone, large cube
glass, H2
holon 40 single
prologe 40 single
80
120
recessed mounted
surface mounted
pendant mounted
deep recessed
craft, long ampoule
glass, H1
stone, large cylinder
glass, E1
stone, small cylinder
glass, F1
holon 40 double
prologe 40 double
holon 60 single

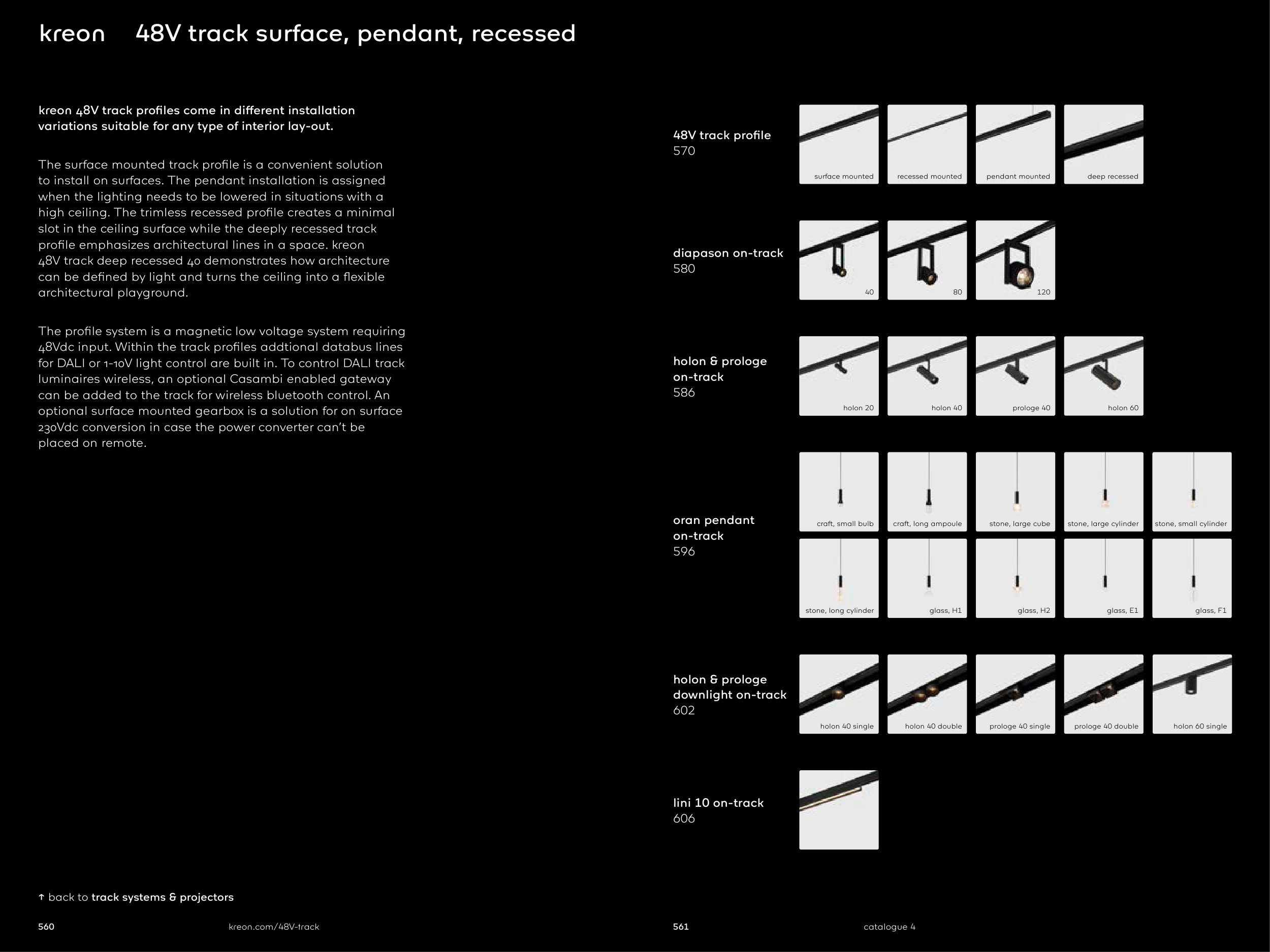

kreon 48V track surface, pendant, recessed
kreon.com/48V-track
↑ back to track systems & projectors
catalogue 4
kreon 48V track profiles come in different installation
variations suitable for any type of interior lay-out.
The surface mounted track profile is a convenient solution
to install on surfaces. The pendant installation is assigned
when the lighting needs to be lowered in situations with a
high ceiling. The trimless recessed profile creates a minimal
slot in the ceiling surface while the deeply recessed track
profile emphasizes architectural lines in a space. kreon
48V track deep recessed 40 demonstrates how architecture
can be defined by light and turns the ceiling into a flexible
architectural playground.
The profile system is a magnetic low voltage system requiring
48Vdc input. Within the track profiles addtional databus lines
for DALI or 1-10V light control are built in. To control DALI track
luminaires wireless, an optional Casambi enabled gateway
can be added to the track for wireless bluetooth control. An
optional surface mounted gearbox is a solution for on surface
230Vdc conversion in case the power converter can’t be
placed on remote.
