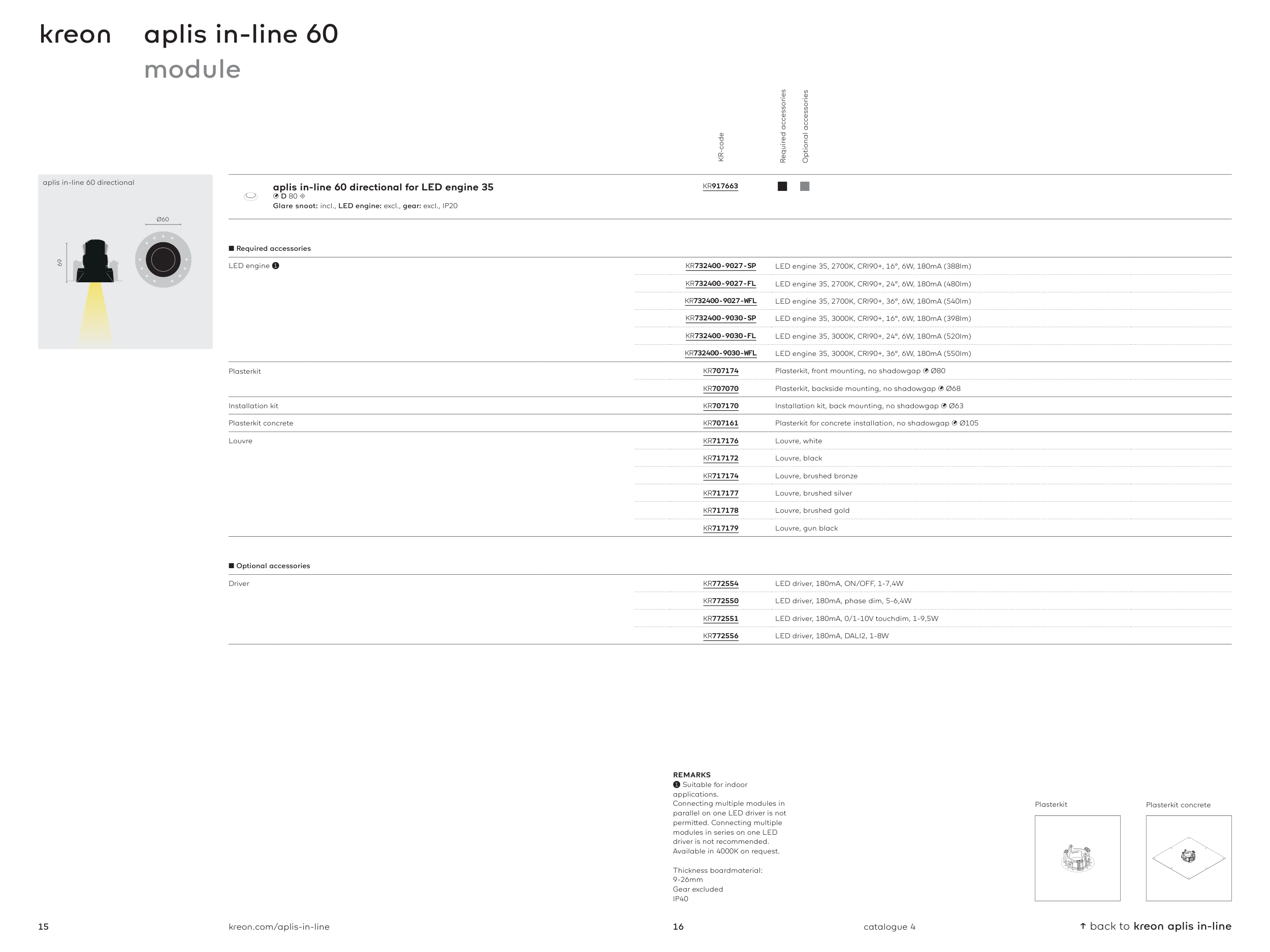

kreon aplis in-line 60
module
69
Ø60
aplis in-line 60 directional
↑ back to kreon aplis in-line
catalogue 4
kreon.com/aplis-in-line
KR-code
Required accessories
Optional accessories
aplis in-line 60 directional for LED engine 35
1 D 80 4
Glare snoot: incl., LED engine: excl., gear: excl., IP20
KR917663
■
■
■ Required accessories
LED engine ➊
KR732400-9027-SP
LED engine 35, 2700K, CRI90+, 16°, 6W, 180mA (388lm)
KR732400-9027-FL
LED engine 35, 2700K, CRI90+, 24°, 6W, 180mA (480lm)
KR732400-9027-WFL
LED engine 35, 2700K, CRI90+, 36°, 6W, 180mA (540lm)
KR732400-9030-SP
LED engine 35, 3000K, CRI90+, 16°, 6W, 180mA (398lm)
KR732400-9030-FL
LED engine 35, 3000K, CRI90+, 24°, 6W, 180mA (520lm)
KR732400-9030-WFL
LED engine 35, 3000K, CRI90+, 36°, 6W, 180mA (550lm)
Plasterkit
KR707174
Plasterkit, front mounting, no shadowgap 1 Ø80
KR707070
Plasterkit, backside mounting, no shadowgap 1 Ø68
Installation kit
KR707170
Installation kit, back mounting, no shadowgap 1 Ø63
Plasterkit concrete
KR707161
Plasterkit for concrete installation, no shadowgap 1 Ø105
Louvre
KR717176
Louvre, white
KR717172
Louvre, black
KR717174
Louvre, brushed bronze
KR717177
Louvre, brushed silver
KR717178
Louvre, brushed gold
KR717179
Louvre, gun black
■ Optional accessories
Driver
KR772554
LED driver, 180mA, ON/OFF, 1-7,4W
KR772550
LED driver, 180mA, phase dim, 5-6,4W
KR772551
LED driver, 180mA, 0/1-10V touchdim, 1-9,5W
KR772556
LED driver, 180mA, DALI2, 1-8W
Plasterkit concrete
Plasterkit
REMARKS
➊ Suitable for indoor
applications.
Connecting multiple modules in
parallel on one LED driver is not
permitted. Connecting multiple
modules in series on one LED
driver is not recommended.
Available in 4000K on request.
Thickness boardmaterial:
9-26mm
Gear excluded
IP40
