496
497
60
max. 2.5m
85
60
75
42.5
94
60
42.5

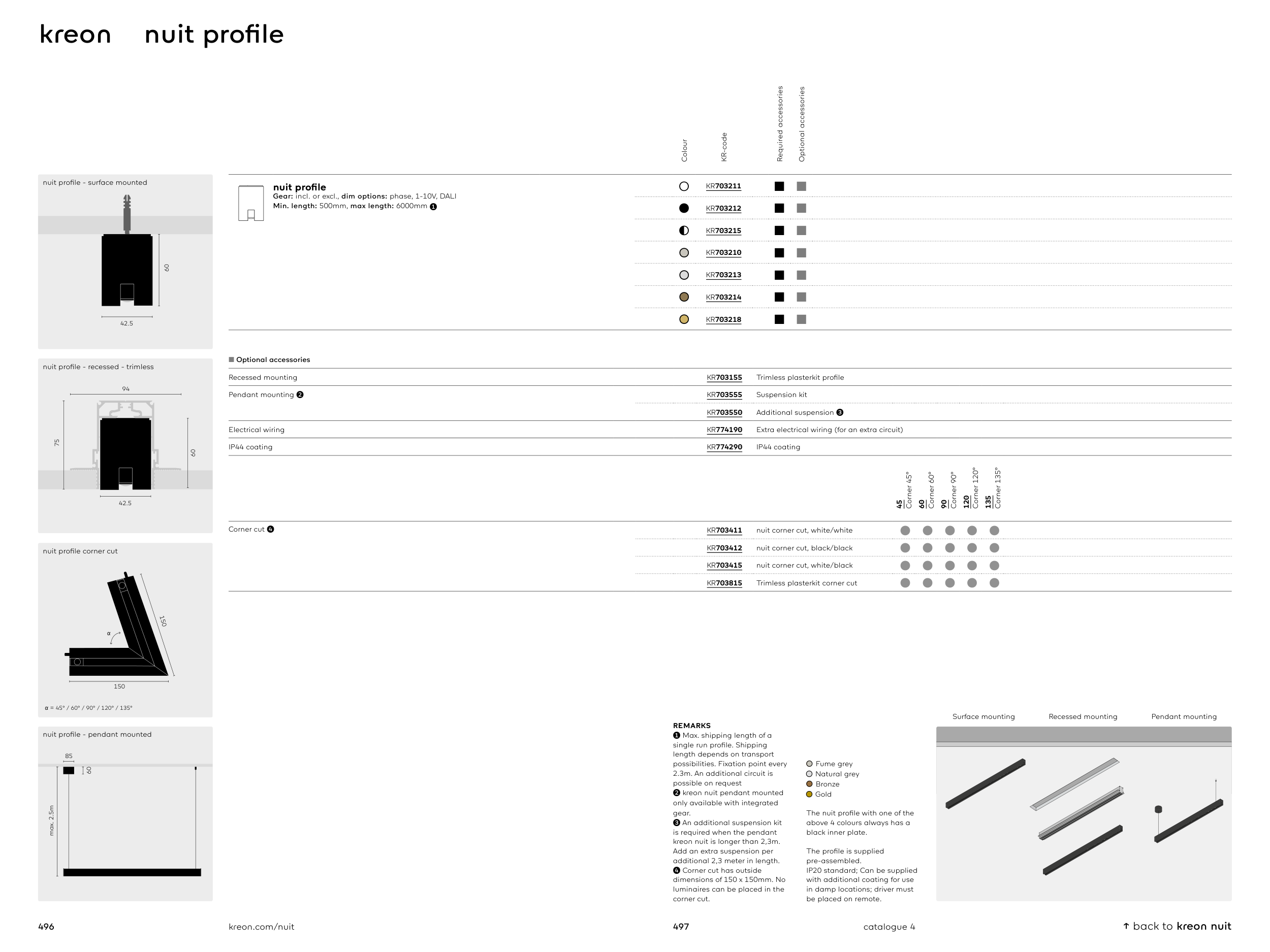

kreon nuit profile
150
150
α
α = 45° / 60° / 90° / 120° / 135°
↑ back to kreon nuit
catalogue 4
kreon.com/nuit
nuit profile - pendant mounted
nuit profile corner cut
nuit profile - recessed - trimless
nuit profile - surface mounted
REMARKS
➊ Max. shipping length of a
single run profile. Shipping
length depends on transport
possibilities. Fixation point every
2.3m. An additional circuit is
possible on request
➋ kreon nuit pendant mounted
only available with integrated
gear.
➌ An additional suspension kit
is required when the pendant
kreon nuit is longer than 2,3m.
Add an extra suspension per
additional 2,3 meter in length.
➍ Corner cut has outside
dimensions of 150 x 150mm. No
luminaires can be placed in the
corner cut.
Fume grey
● Natural grey
Bronze
● Gold
The nuit profile with one of the
above 4 colours always has a
black inner plate.
The profile is supplied
pre-assembled.
IP20 standard; Can be supplied
with additional coating for use
in damp locations; driver must
be placed on remote.
■ Optional accessories
Recessed mounting
KR703155
Trimless plasterkit profile
Pendant mounting ➋
KR703555
Suspension kit
KR703550
Additional suspension ➌
Electrical wiring
KR774190
Extra electrical wiring (for an extra circuit)
IP44 coating
KR774290
IP44 coating
45
Corner 45°
60
Corner 60°
90
Corner 90°
120
Corner 120°
135
Corner 135°
Corner cut ➍
KR703411
nuit corner cut, white/white
●
●
●
●
●
KR703412
nuit corner cut, black/black
●
●
●
●
●
KR703415
nuit corner cut, white/black
●
●
●
●
●
KR703815
Trimless plasterkit corner cut
●
●
●
●
●
Colour
KR-code
Required accessories
Optional accessories
nuit profile
Gear: incl. or excl., dim options: phase, 1-10V, DALI
Min. length: 500mm, max length: 6000mm ➊
○
KR703211
■
■
●
KR703212
■
■
◐
KR703215
■
■
●
KR703210
■
■
●
KR703213
■
■
●
KR703214
■
■
●
KR703218
■
■
Surface mounting
Recessed mounting
Pendant mounting
