465
464
kreon.com/kagi
10
32
kagi blind surface mounted, level 2
10
24
26
10
24
16
kagi 26, surface mounted, level 2
kagi 16, surface mounted, level 2
↑ back to kreon kagi
catalogue 4
CRI
CCT
Voltage
Wattage
Fixture lumen
1
LED
CRI90+
2700K/3000K
24Vdc
12,3W/m
808lm/m
➁
LED
CRI90+
2700K/3000K
24Vdc
12,3W/m
873lm/m

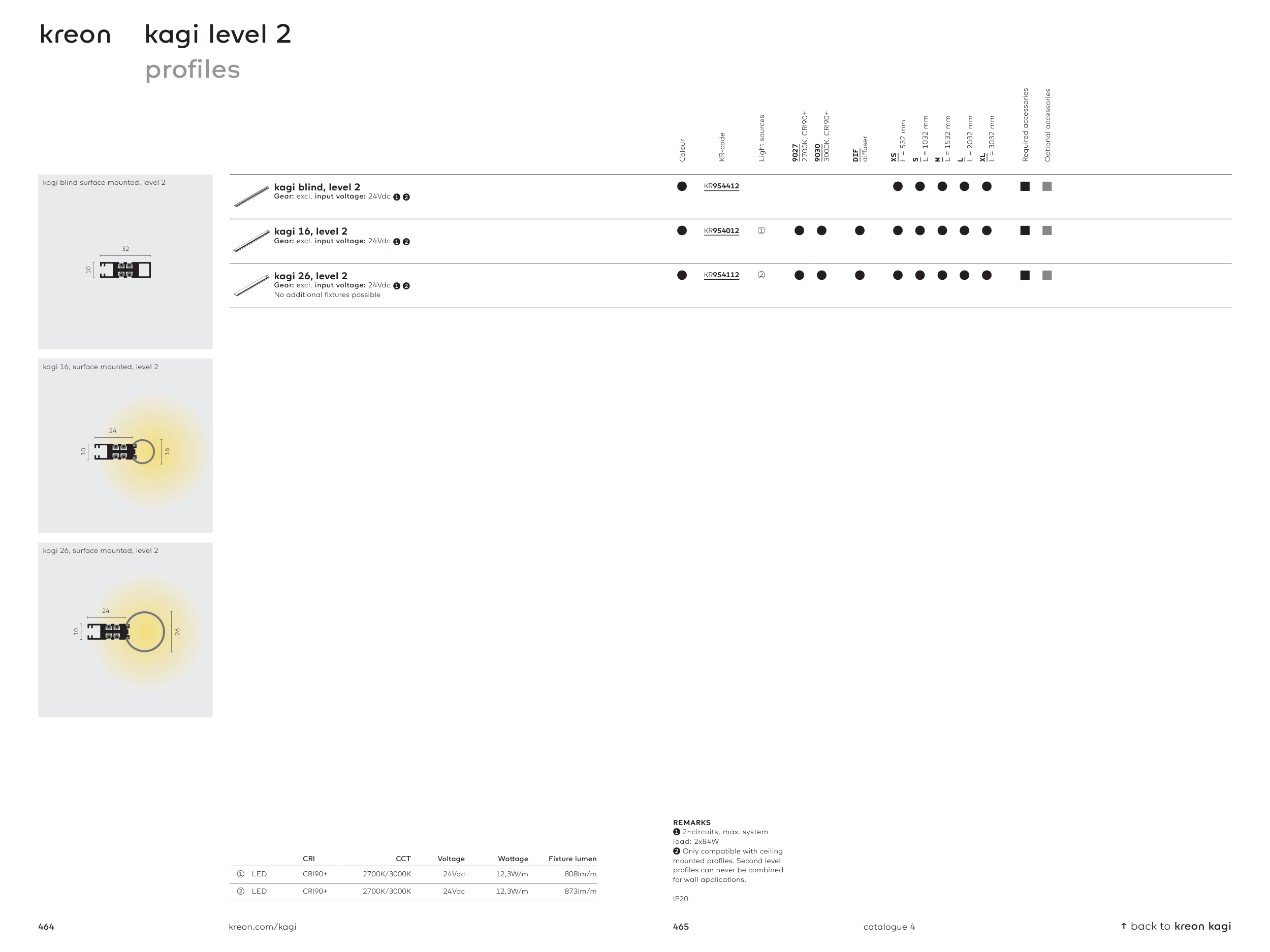

kreon kagi level 2
profiles
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
DIF
diffuser
XS
L = 532 mm
S
L = 1032 mm
M
L = 1532 mm
L
L = 2032 mm
XL
L = 3032 mm
Required accessories
Optional accessories
kagi blind, level 2
Gear: excl. input voltage: 24Vdc ➊ ➋
●
KR954412
●
●
●
●
●
■
■
kagi 16, level 2
Gear: excl. input voltage: 24Vdc ➊ ➋
●
KR954012
➀
●
●
●
●
●
●
●
●
■
■
kagi 26, level 2
Gear: excl. input voltage: 24Vdc ➊ ➋
No additional fixtures possible
●
KR954112
➁
●
●
●
●
●
●
●
●
■
■
REMARKS
➊ 2~circuits, max. system
load: 2x84W
➋ Only compatible with ceiling
mounted profiles. Second level
profiles can never be combined
for wall applications.
IP20
