6
5
Ø40
355°/30°
57
aplis in-line 40 directional
67
Ø40
52
Ø40
aplis in-line 40 downlight
aplis in-line 40 HE wallwasher

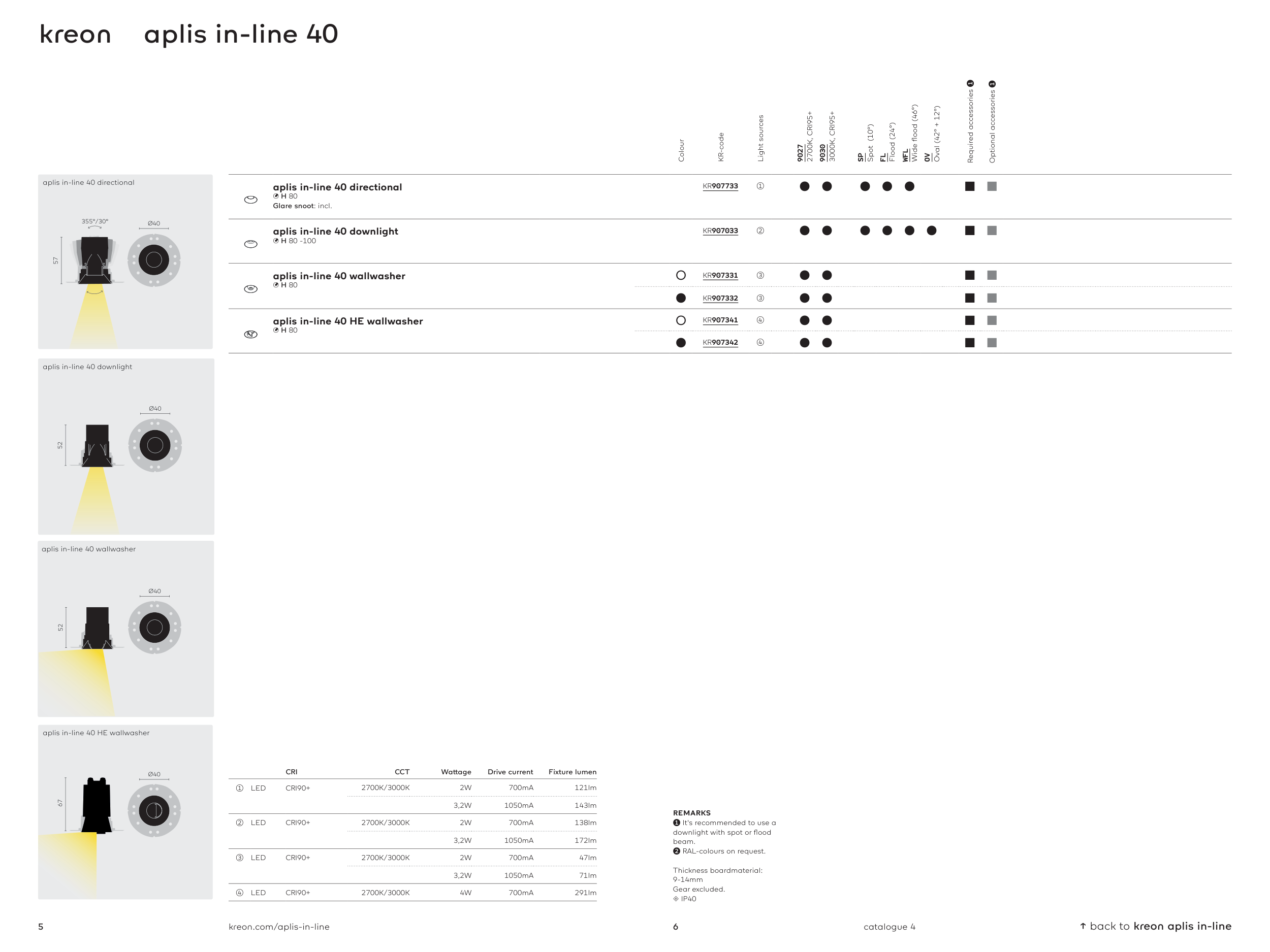

kreon aplis in-line 40
52
Ø40
aplis in-line 40 wallwasher
↑ back to kreon aplis in-line
catalogue 4
kreon.com/aplis-in-line
CRI
CCT
Wattage
Drive current
Fixture lumen
1
LED
CRI90+
2700K/3000K
2W
700mA
121lm
3,2W
1050mA
143lm
➁
LED
CRI90+
2700K/3000K
2W
700mA
138lm
3,2W
1050mA
172lm
➂
LED
CRI90+
2700K/3000K
2W
700mA
47lm
3,2W
1050mA
71lm
➃
LED
CRI90+
2700K/3000K
4W
700mA
291lm
Colour
KR-code
Light sources
9027
2700K, CRI95+
9030
3000K, CRI95+
SP
Spot (10°)
FL
Flood (24°)
WFL
Wide flood (46°)
OV
Oval (42° + 12°)
Required accessories ➊
Optional accessories ➊
aplis in-line 40 directional
1 H 80
Glare snoot: incl.
KR907733
➀
●
●
●
●
●
■
■
aplis in-line 40 downlight
1 H 80 -100
KR907033
➁
●
●
●
●
●
●
■
■
aplis in-line 40 wallwasher
1 H 80
○
KR907331
➂
●
●
■
■
●
KR907332
➂
●
●
■
■
aplis in-line 40 HE wallwasher
1 H 80
○
KR907341
➃
●
●
■
■
●
KR907342
➃
●
●
■
■
REMARKS
➊ It's recommended to use a
downlight with spot or flood
beam.
➋ RAL-colours on request.
Thickness boardmaterial:
9-14mm
Gear excluded.
4 IP40
