203
202
130
Ø33
33
60
45
85
90°
355°
130
50
Ø33
60
45
90°
355°
130
Ø33
45
60
90°
355°

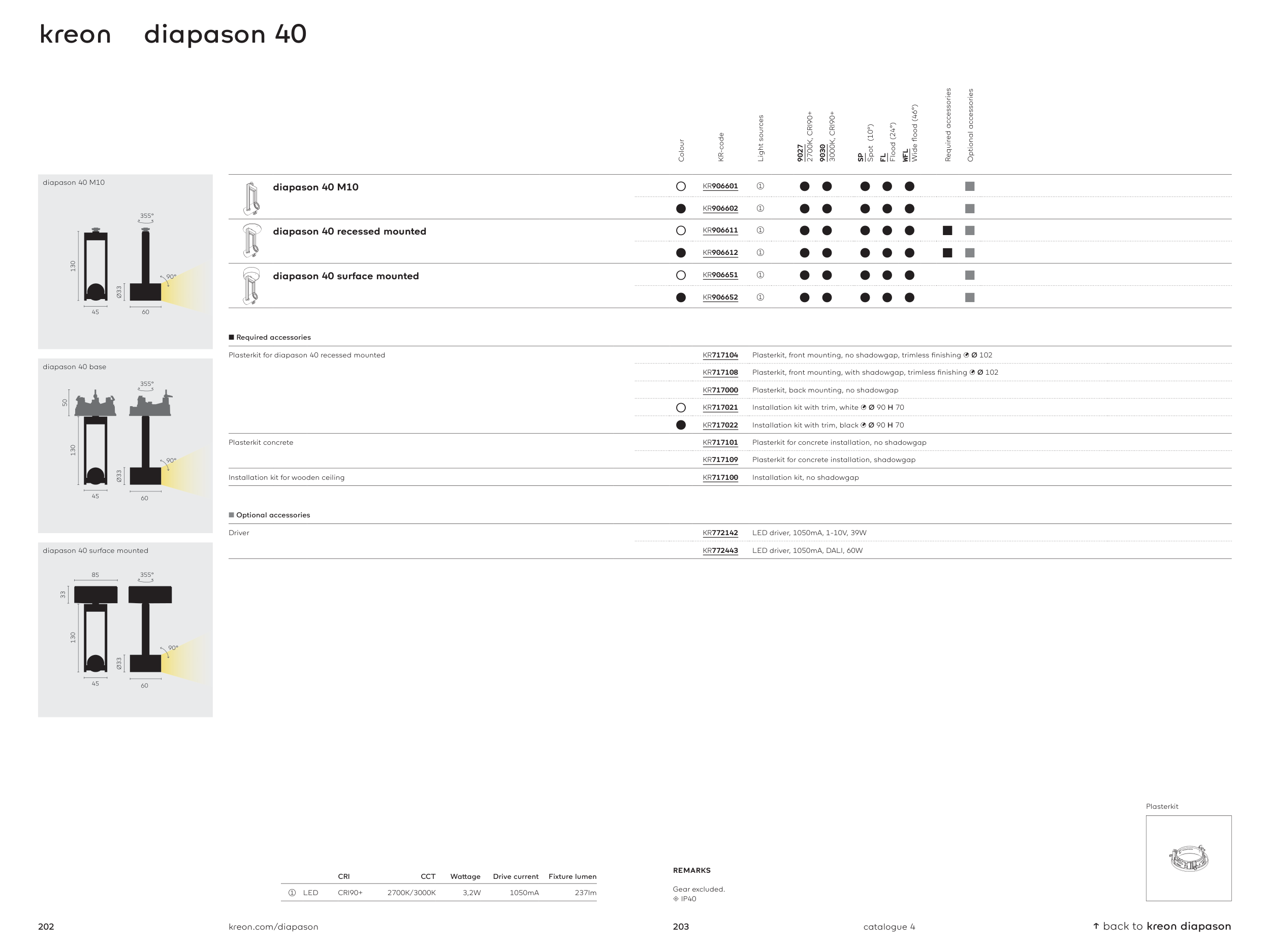

kreon diapason 40
diapason 40 M10
diapason 40 surface mounted
diapason 40 base
↑ back to kreon diapason
catalogue 4
kreon.com/diapason
CRI
CCT
Wattage
Drive current
Fixture lumen
1
LED
CRI90+
2700K/3000K
3,2W
1050mA
237lm
REMARKS
Gear excluded.
4 IP40
■ Required accessories
Plasterkit for diapason 40 recessed mounted
KR717104
Plasterkit, front mounting, no shadowgap, trimless finishing 1 Ø 102
KR717108
Plasterkit, front mounting, with shadowgap, trimless finishing 1 Ø 102
KR717000
Plasterkit, back mounting, no shadowgap
○
KR717021
Installation kit with trim, white 1 Ø 90 H 70
●
KR717022
Installation kit with trim, black 1 Ø 90 H 70
Plasterkit concrete
KR717101
Plasterkit for concrete installation, no shadowgap
KR717109
Plasterkit for concrete installation, shadowgap
Installation kit for wooden ceiling
KR717100
Installation kit, no shadowgap
■ Optional accessories
Driver
KR772142
LED driver, 1050mA, 1-10V, 39W
KR772443
LED driver, 1050mA, DALI, 60W
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
SP
Spot (10°)
FL
Flood (24°)
WFL
Wide flood (46°)
Required accessories
Optional accessories
diapason 40 M10
○
KR906601
➀
●
●
●
●
●
■
●
KR906602
➀
●
●
●
●
●
■
diapason 40 recessed mounted
○
KR906611
➀
●
●
●
●
●
■
■
●
KR906612
➀
●
●
●
●
●
■
■
diapason 40 surface mounted
○
KR906651
➀
●
●
●
●
●
■
●
KR906652
➀
●
●
●
●
●
■
Plasterkit
