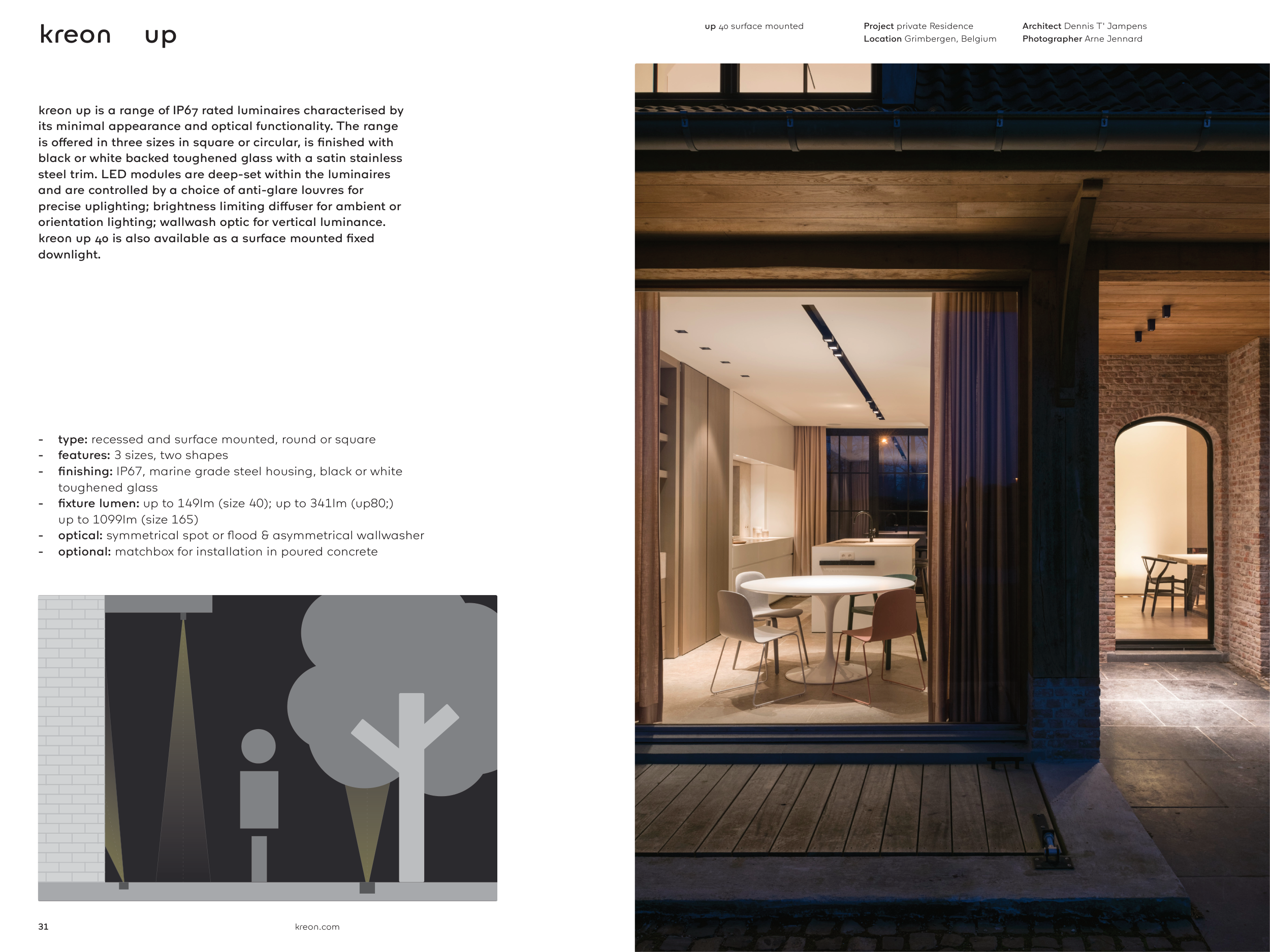

31
kreon up
kreon.com
kreon up is a range of IP67 rated luminaires characterised by
its minimal appearance and optical functionality. The range
is offered in three sizes in square or circular, is finished with
black or white backed toughened glass with a satin stainless
steel trim. LED modules are deep-set within the luminaires
and are controlled by a choice of anti-glare louvres for
precise uplighting; brightness limiting diffuser for ambient or
orientation lighting; wallwash optic for vertical luminance.
kreon up 40 is also available as a surface mounted fixed
downlight.
-
type: recessed and surface mounted, round or square
-
features: 3 sizes, two shapes
-
finishing: IP67, marine grade steel housing, black or white
toughened glass
-
fixture lumen: up to 149lm (size 40); up to 341lm (up80;)
up to 1099lm (size 165)
-
optical: symmetrical spot or flood & asymmetrical wallwasher
-
optional: matchbox for installation in poured concrete
up 40 surface mounted
Project private Residence
Location Grimbergen, Belgium
Architect Dennis T' Jampens
Photographer Arne Jennard
