kreon oran
52
Ø45
30
Ø120
52
Ø65
27
Ø45
surface mounted connection box
recessed suspension kit
surface mounted connection box
surface mounted connection box

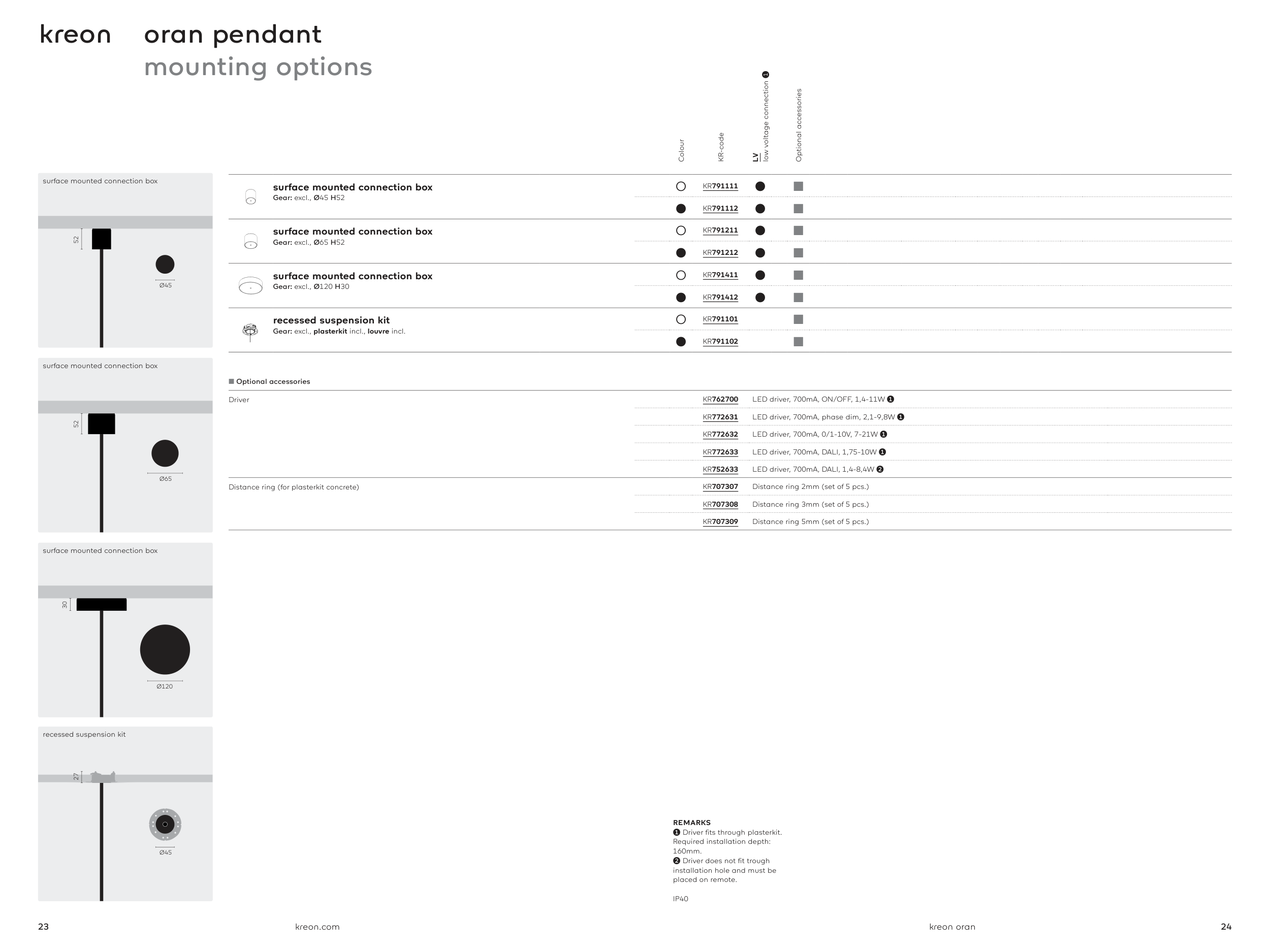

kreon oran pendant
mounting options
REMARKS
➊ Driver fits through plasterkit.
Required installation depth:
160mm.
➋ Driver does not fit trough
installation hole and must be
placed on remote.
IP40
Colour
KR-code
LV
low voltage connection ➊
Optional accessories
surface mounted connection box
Gear: excl., Ø45 H52
○
KR791111
●
■
●
KR791112
●
■
surface mounted connection box
Gear: excl., Ø65 H52
○
KR791211
●
■
●
KR791212
●
■
surface mounted connection box
Gear: excl., Ø120 H30
○
KR791411
●
■
●
KR791412
●
■
recessed suspension kit
Gear: excl., plasterkit incl., louvre incl.
○
KR791101
■
●
KR791102
■
■ Optional accessories
Driver
KR762700
LED driver, 700mA, ON/OFF, 1,4-11W ➊
KR772631
LED driver, 700mA, phase dim, 2,1-9,8W ➊
KR772632
LED driver, 700mA, 0/1-10V, 7-21W ➊
KR772633
LED driver, 700mA, DALI, 1,75-10W ➊
KR752633
LED driver, 700mA, DALI, 1,4-8,4W ➋
Distance ring (for plasterkit concrete)
KR707307
Distance ring 2mm (set of 5 pcs.)
KR707308
Distance ring 3mm (set of 5 pcs.)
KR707309
Distance ring 5mm (set of 5 pcs.)
