kreon oran craft
installation
recessed
mounted
surface
mounted
gear excl.
surface
mounted
gear incl.
Plasterkit concrete
Plasterkit

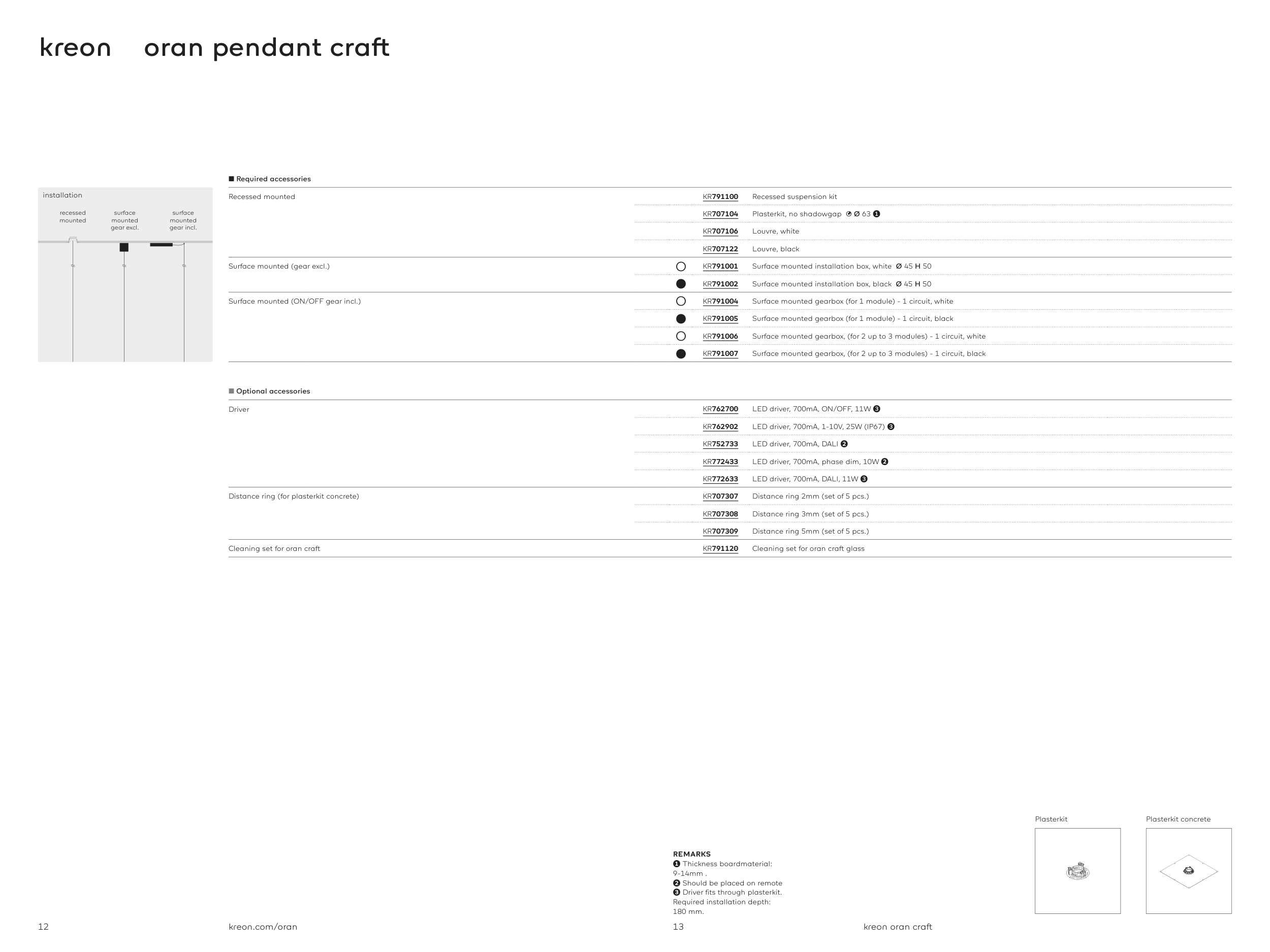

kreon oran pendant craft
REMARKS
1 Thickness boardmaterial:
9-14mm .
➋ Should be placed on remote
➌ Driver fits through plasterkit.
Required installation depth:
180 mm.
■ Required accessories
Recessed mounted
KR791100
Recessed suspension kit
KR707104
Plasterkit, no shadowgap 1 Ø 63 ➊
KR707106
Louvre, white
KR707122
Louvre, black
Surface mounted (gear excl.)
○
KR791001
Surface mounted installation box, white Ø 45 H 50
●
KR791002
Surface mounted installation box, black Ø 45 H 50
Surface mounted (ON/OFF gear incl.)
○
KR791004
Surface mounted gearbox (for 1 module) - 1 circuit, white
●
KR791005
Surface mounted gearbox (for 1 module) - 1 circuit, black
○
KR791006
Surface mounted gearbox, (for 2 up to 3 modules) - 1 circuit, white
●
KR791007
Surface mounted gearbox, (for 2 up to 3 modules) - 1 circuit, black
■ Optional accessories
Driver
KR762700
LED driver, 700mA, ON/OFF, 11W ➌
KR762902
LED driver, 700mA, 1-10V, 25W (IP67) ➌
KR752733
LED driver, 700mA, DALI ➋
KR772433
LED driver, 700mA, phase dim, 10W ➋
KR772633
LED driver, 700mA, DALI, 11W ➌
Distance ring (for plasterkit concrete)
KR707307
Distance ring 2mm (set of 5 pcs.)
KR707308
Distance ring 3mm (set of 5 pcs.)
KR707309
Distance ring 5mm (set of 5 pcs.)
Cleaning set for oran craft
KR791120
Cleaning set for oran craft glass
