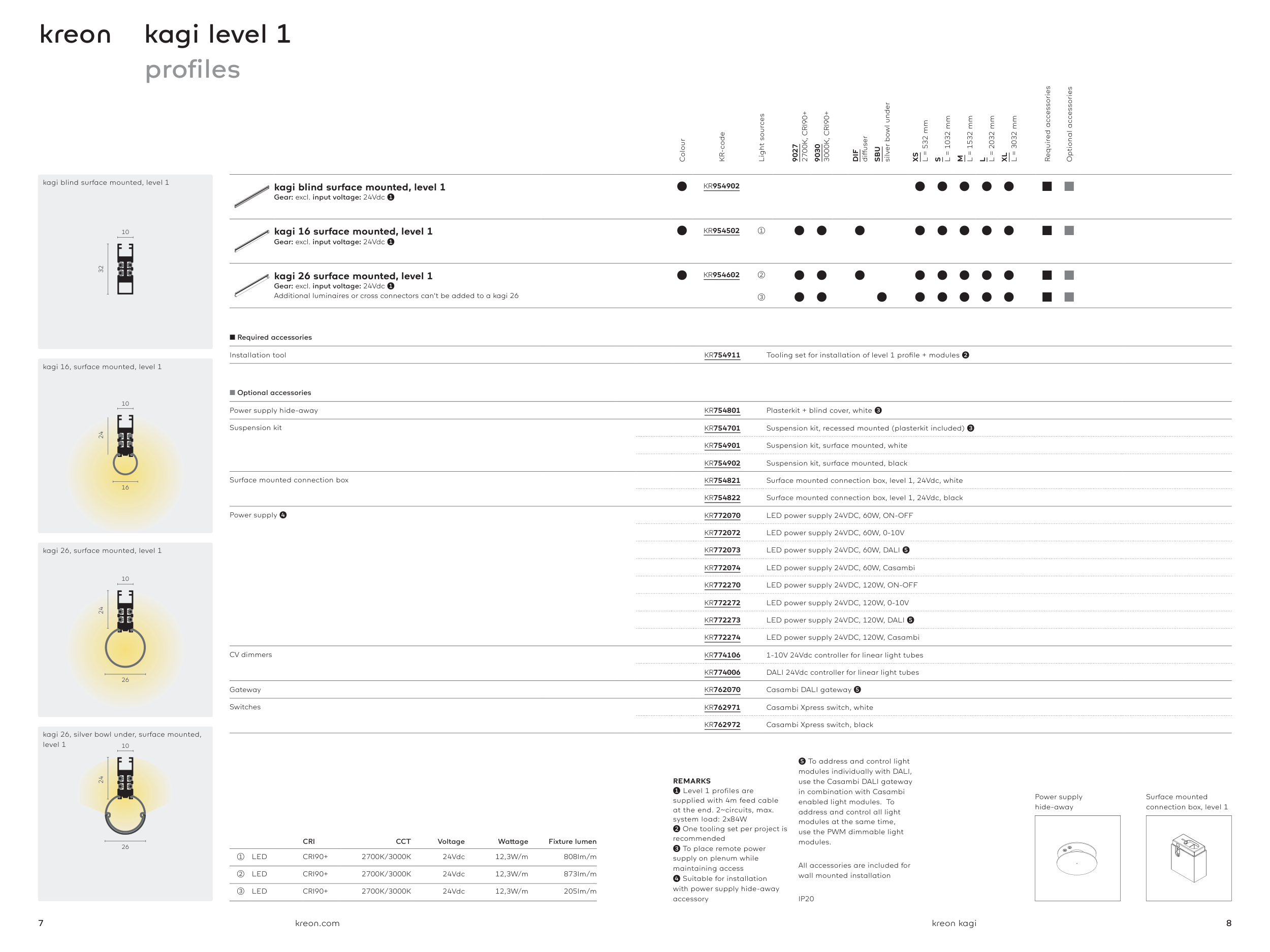

kreon kagi level 1
profiles
10
32
kagi blind surface mounted, level 1
10
24
26
26
10
24
10
24
16
kagi 26, surface mounted, level 1
kagi 26, silver bowl under, surface mounted,
level 1
kagi 16, surface mounted, level 1
kreon.com
8
7
CRI
CCT
Voltage
Wattage
Fixture lumen
1
LED
CRI90+
2700K/3000K
24Vdc
12,3W/m
808lm/m
➁
LED
CRI90+
2700K/3000K
24Vdc
12,3W/m
873lm/m
➂
LED
CRI90+
2700K/3000K
24Vdc
12,3W/m
205lm/m
■ Required accessories
Installation tool
KR754911
Tooling set for installation of level 1 profile + modules ➋
■ Optional accessories
Power supply hide-away
KR754801
Plasterkit + blind cover, white ➌
Suspension kit
KR754701
Suspension kit, recessed mounted (plasterkit included) ➌
KR754901
Suspension kit, surface mounted, white
KR754902
Suspension kit, surface mounted, black
Surface mounted connection box
KR754821
Surface mounted connection box, level 1, 24Vdc, white
KR754822
Surface mounted connection box, level 1, 24Vdc, black
Power supply 4
KR772070
LED power supply 24VDC, 60W, ON-OFF
KR772072
LED power supply 24VDC, 60W, 0-10V
KR772073
LED power supply 24VDC, 60W, DALI 5
KR772074
LED power supply 24VDC, 60W, Casambi
KR772270
LED power supply 24VDC, 120W, ON-OFF
KR772272
LED power supply 24VDC, 120W, 0-10V
KR772273
LED power supply 24VDC, 120W, DALI 5
KR772274
LED power supply 24VDC, 120W, Casambi
CV dimmers
KR774106
1-10V 24Vdc controller for linear light tubes
KR774006
DALI 24Vdc controller for linear light tubes
Gateway
KR762070
Casambi DALI gateway 5
Switches
KR762971
Casambi Xpress switch, white
KR762972
Casambi Xpress switch, black
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
DIF
diffuser
SBU
silver bowl under
XS
L = 532 mm
S
L = 1032 mm
M
L = 1532 mm
L
L = 2032 mm
XL
L = 3032 mm
Required accessories
Optional accessories
kagi blind surface mounted, level 1
Gear: excl. input voltage: 24Vdc ➊
●
KR954902
●
●
●
●
●
■
■
kagi 16 surface mounted, level 1
Gear: excl. input voltage: 24Vdc ➊
●
KR954502
1
●
●
●
●
●
●
●
●
■
■
kagi 26 surface mounted, level 1
Gear: excl. input voltage: 24Vdc ➊
Additional luminaires or cross connectors can't be added to a kagi 26
●
KR954602
➁
●
●
●
●
●
●
●
●
■
■
➂
●
●
●
●
●
●
●
●
■
■
REMARKS
➊ Level 1 profiles are
supplied with 4m feed cable
at the end. 2~circuits, max.
system load: 2x84W
➋ One tooling set per project is
recommended
➌ To place remote power
supply on plenum while
maintaining access
4 Suitable for installation
with power supply hide-away
accessory
Surface mounted
connection box, level 1
Power supply
hide-away
5 To address and control light
modules individually with DALI,
use the Casambi DALI gateway
in combination with Casambi
enabled light modules. To
address and control all light
modules at the same time,
use the PWM dimmable light
modules.
All accessories are included for
wall mounted installation
IP20
kreon kagi
