36
35
52
Ø45
30
Ø120
52
Ø65
27
Ø45
surface mounted connection box
recessed suspension kit
surface mounted connection box
surface mounted connection box
kreon holon
kreon.com

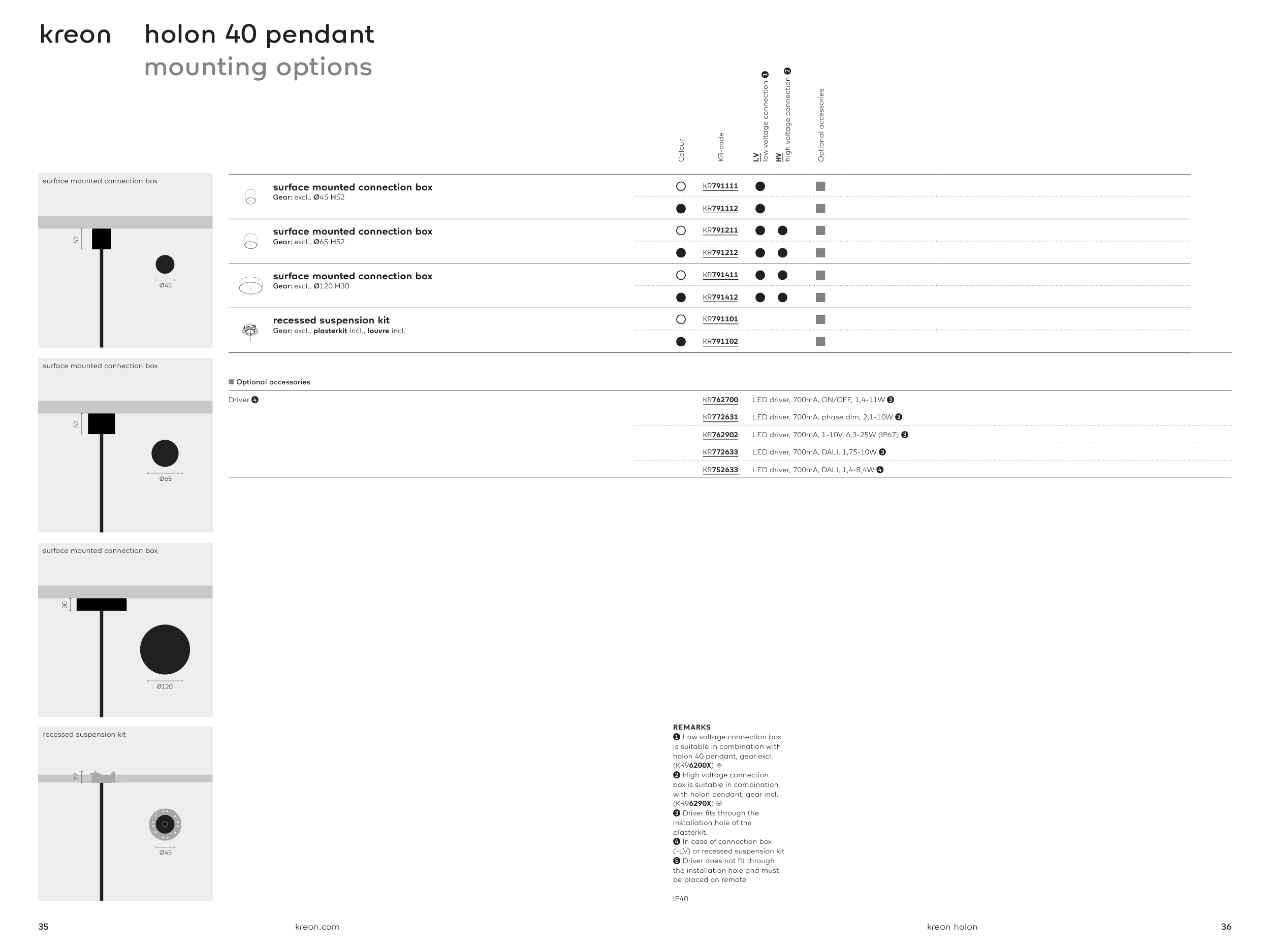

kreon holon 40 pendant
mounting options
REMARKS
➊ Low voltage connection box
is suitable in combination with
holon 40 pendant, gear excl.
(KR96200x) 4
➋ High voltage connection
box is suitable in combination
with holon pendant, gear incl.
(KR96290x) ⏚
➌ Driver fits through the
installation hole of the
plasterkit.
➍ In case of connection box
(-LV) or recessed suspension kit
➎ Driver does not fit through
the installation hole and must
be placed on remote
IP40
Colour
KR-code
Lv
low voltage connection ➊
Hv
high voltage connection ➋
Optional accessories
surface mounted connection box
Gear: excl., Ø45 H52
○
KR791111
●
■
●
KR791112
●
■
surface mounted connection box
Gear: excl., Ø65 H52
○
KR791211
●
●
■
●
KR791212
●
●
■
surface mounted connection box
Gear: excl., Ø120 H30
○
KR791411
●
●
■
●
KR791412
●
●
■
recessed suspension kit
Gear: excl., plasterkit incl., louvre incl.
○
KR791101
■
●
KR791102
■
■ Optional accessories
Driver ➍
KR762700
LED driver, 700mA, ON/OFF, 1,4-11W ➌
KR772631
LED driver, 700mA, phase dim, 2,1-10W ➌
KR762902
LED driver, 700mA, 1-10V, 6,3-25W (IP67) ➌
KR772633
LED driver, 700mA, DALI, 1,75-10W ➌
KR752633
LED driver, 700mA, DALI, 1,4-8,4W ➍
