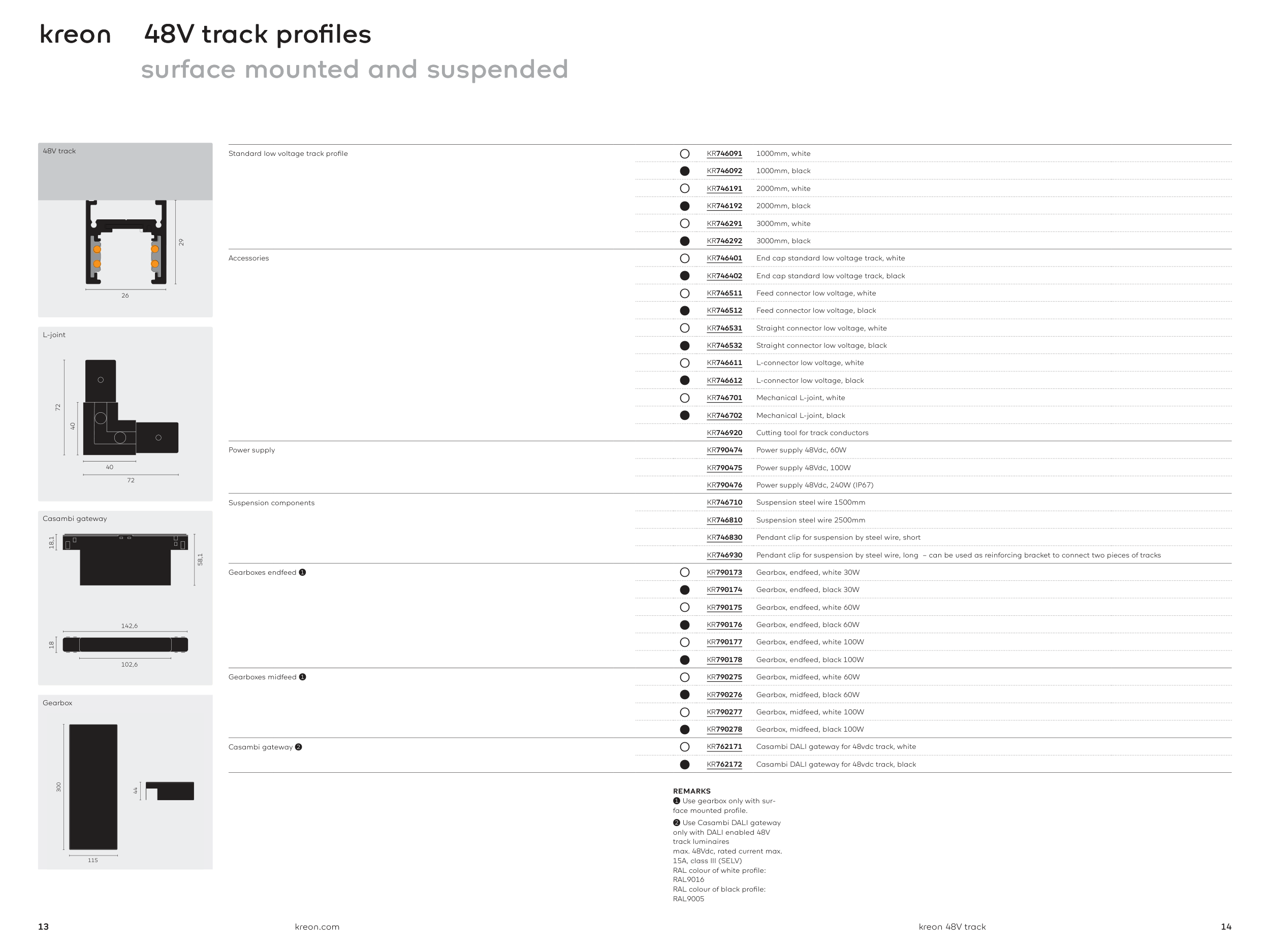

kreon 48V track profiles
surface mounted and suspended
115
44
300
26
29
72
40
72
40
18
18,1
58,1
142,6
102,6
48V track
L-joint
Casambi gateway
Gearbox
13
kreon 48V track
kreon 48V track profiles
surface mounted and suspended
Standard low voltage track profile
○
KR746091
1000mm, white
●
KR746092
1000mm, black
○
KR746191
2000mm, white
●
KR746192
2000mm, black
○
KR746291
3000mm, white
●
KR746292
3000mm, black
Accessories
○
KR746401
End cap standard low voltage track, white
●
KR746402
End cap standard low voltage track, black
○
KR746511
Feed connector low voltage, white
●
KR746512
Feed connector low voltage, black
○
KR746531
Straight connector low voltage, white
●
KR746532
Straight connector low voltage, black
○
KR746611
L-connector low voltage, white
●
KR746612
L-connector low voltage, black
○
KR746701
Mechanical L-joint, white
●
KR746702
Mechanical L-joint, black
KR746920
Cutting tool for track conductors
Power supply
KR790474
Power supply 48Vdc, 60W
KR790475
Power supply 48Vdc, 100W
KR790476
Power supply 48Vdc, 240W (IP67)
Suspension components
KR746710
Suspension steel wire 1500mm
KR746810
Suspension steel wire 2500mm
KR746830
Pendant clip for suspension by steel wire, short
KR746930
Pendant clip for suspension by steel wire, long – can be used as reinforcing bracket to connect two pieces of tracks
Gearboxes endfeed ➊
○
KR790173
Gearbox, endfeed, white 30W
●
KR790174
Gearbox, endfeed, black 30W
○
KR790175
Gearbox, endfeed, white 60W
●
KR790176
Gearbox, endfeed, black 60W
○
KR790177
Gearbox, endfeed, white 100W
●
KR790178
Gearbox, endfeed, black 100W
Gearboxes midfeed ➊
○
KR790275
Gearbox, midfeed, white 60W
●
KR790276
Gearbox, midfeed, black 60W
○
KR790277
Gearbox, midfeed, white 100W
●
KR790278
Gearbox, midfeed, black 100W
Casambi gateway ➋
○
KR762171
Casambi DALI gateway for 48vdc track, white
●
KR762172
Casambi DALI gateway for 48vdc track, black
REMARKS
➊ Use gearbox only with sur-
face mounted profile.
➋ Use Casambi DALI gateway
only with DALI enabled 48V
track luminaires
max. 48Vdc, rated current max.
15A, class III (SELV)
RAL colour of white profile:
RAL9016
RAL colour of black profile:
RAL9005
