Workplace
Acoustic side panels
44 db
Key functions
• Fire retardant M1
• Memory acoustic foam
• Easy clean material
• Odor free and antimicrobial
All our panels are tested to ensure they meet the
required acoustic levels. We have tested some of the
wall combinations to provide guidelines with regard to
acoustic levels. Acoustic performance varies depending
on the material selection for each wall.
The M glass version offers excellent acoustic
performance, creating a comfortable and efficient
working environment. It is based on 6+6 laminates with
a soundproofing membrane to provide an impressive
acoustic performance of up to 44dB. We also offer a
range of solid wall options in fabric and wood. Many of
these alternative wall options offer excellent acoustic
performance properties. Our laminated panels not
only provide additional acoustic performance, but
also come in a range of colors. As a result, you can
customize your Pavilion M to reflect your brand image
or simply to create a bright office space. In addition, the
eco-friendly panels reduce and control reverberated
noise within the Pavilion, further enhancing the overall
soundproofing performance.
Description
Interior
Exterior
Super Panel 10mm
704 Kg/m3
Super Panel 10mm
704 Kg/m3
Soundproofing Membrane,
5’3mm, 10kg/m2
Soundproofing Membrane,
5’3mm, 10kg/m2
Soundproofing Membrane,
3’5mm, 7kg/m2
Soundproofing Membrane,
3’5mm, 7kg/m2
Geo Panel 10mm, 50 Kg/m3
Geo Panel 10mm, 50 Kg/m3
Acoustic Panel (44 db)
Fabric
Compact Wood
Fabric
Compact Wood
plus
comfort

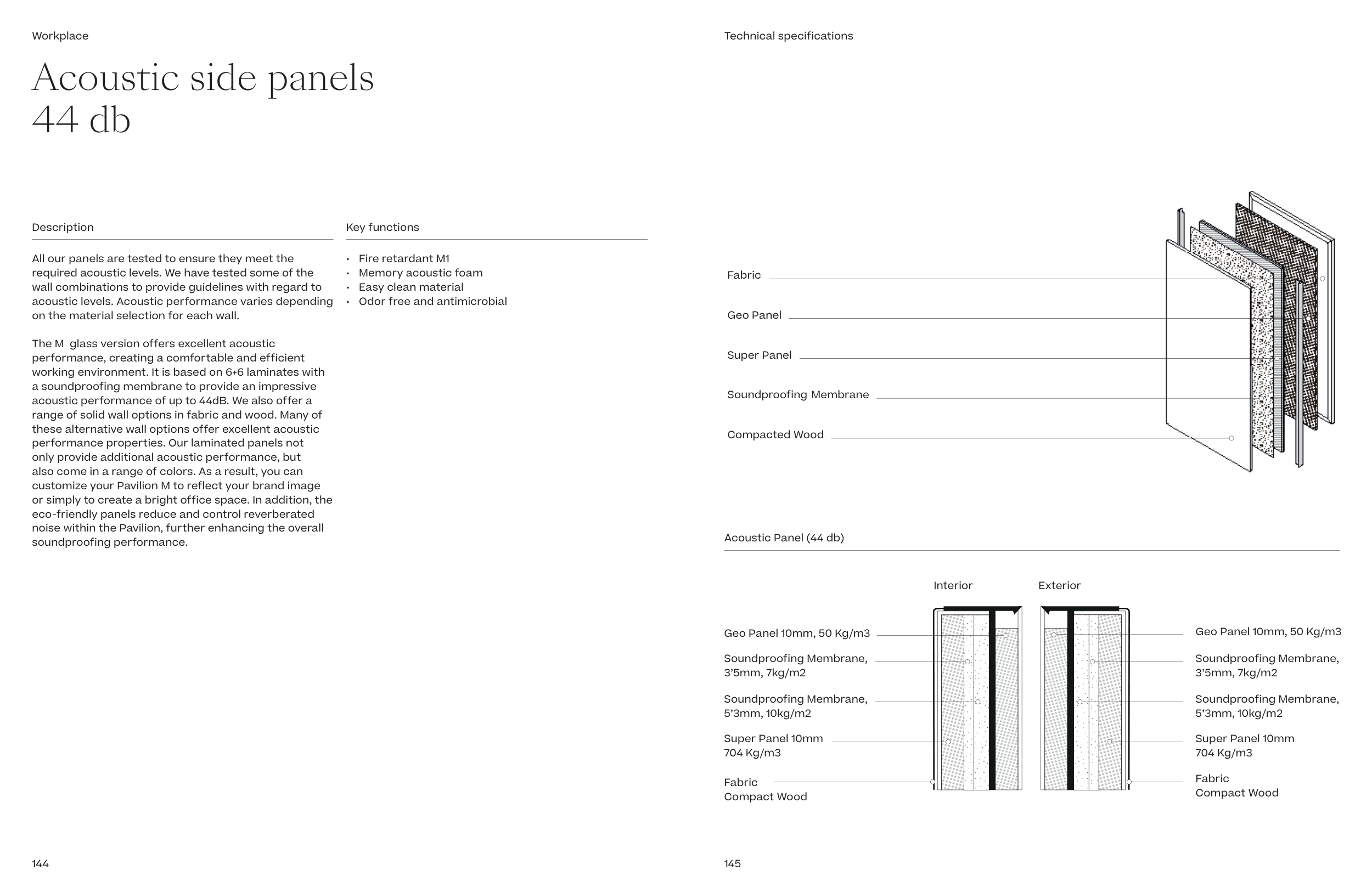

Technical specifications
Compacted Wood
Fabric
Soundproofing Membrane
Geo Panel
Super Panel
