Connect straight pieces in various lengths with
a range of curves in different diameters and angles.

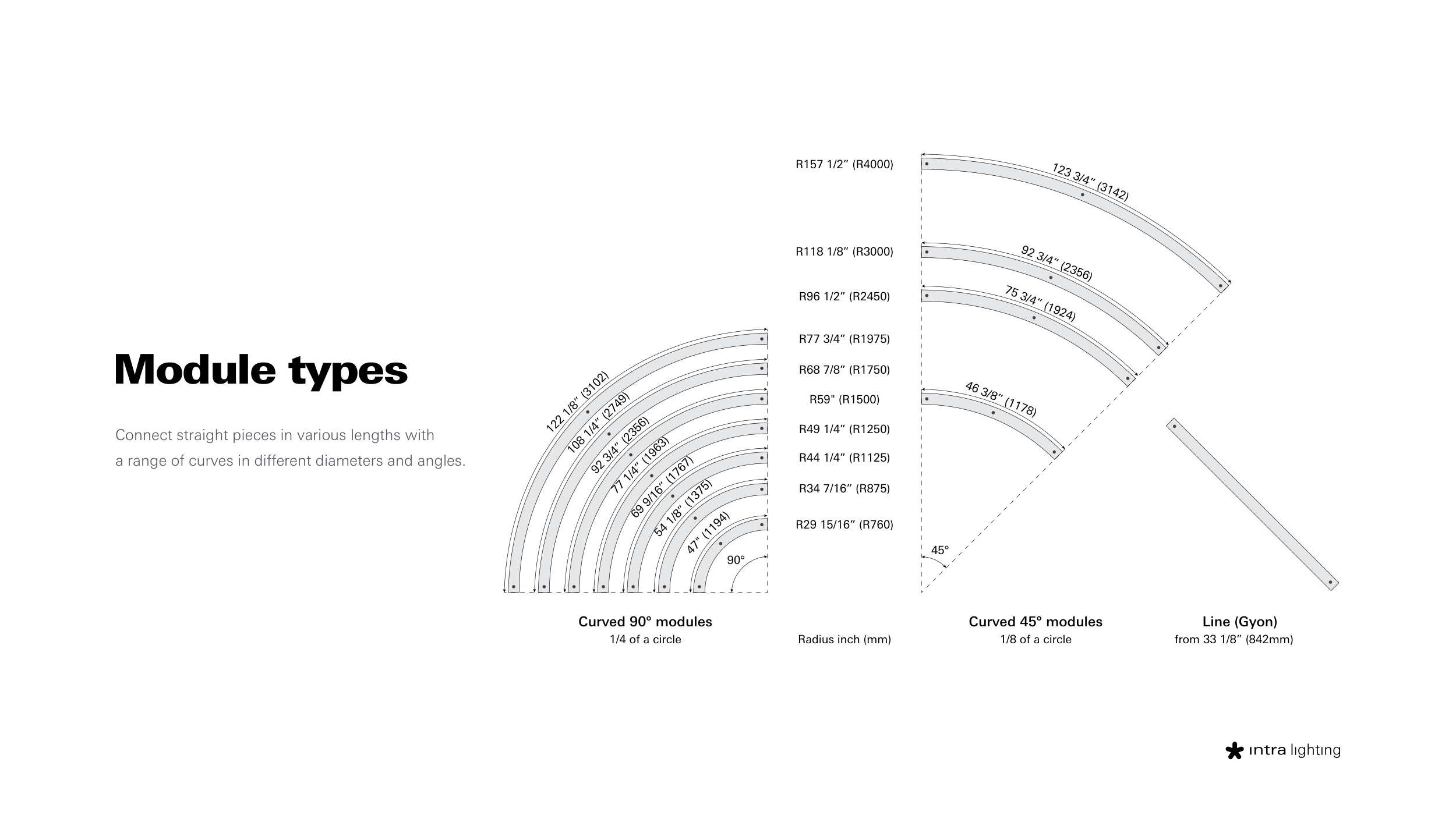

Module types
90°
54 1/8” (1375)
47" (1194)
69 9/16” (1767)
77 1/4” (1963)
92 3/4” (2356)
108 1/4” (2749)
122 1/8” (3102)
Curved 90° modules
R29 15/16” (R760)
R34 7/16” (R875)
Radius inch (mm)
1/4 of a circle
Curved 45° modules
1/8 of a circle
Line (Gyon)
from 33 1/8” (842mm)
up to 121 5/16” (3082mm)
R44 1/4” (R1125)
R49 1/4” (R1250)
R59" (R1500)
R68 7/8” (R1750)
R77 3/4” (R1975)
R96 1/2” (R2450)
R118 1/8” (R3000)
R157 1/2” (R4000)
45°
46 3/8” (1178)
75 3/4” (1924)
92 3/4” (2356)
123 3/4” (3142)
