For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
In the case of a remote power-in position, this
can be just a functional feature. But it is suitable
also when you want a more dynamic compo-
sition and the cables to become part of the
design. 3-7 spots can be connected to a cluster.
Choose a cluster ceiling cup when you want to
create a group of products closely together. The
driver is integrated in the ceiling cup.
Cluster composition
Sometimes one
simply isn't enough
M A I N F E A T U R E S
Cable holder for cables
becoming part of
the design
Cable decentralizer for moving
the position of the single lumi-
naire, the cables stay taut.

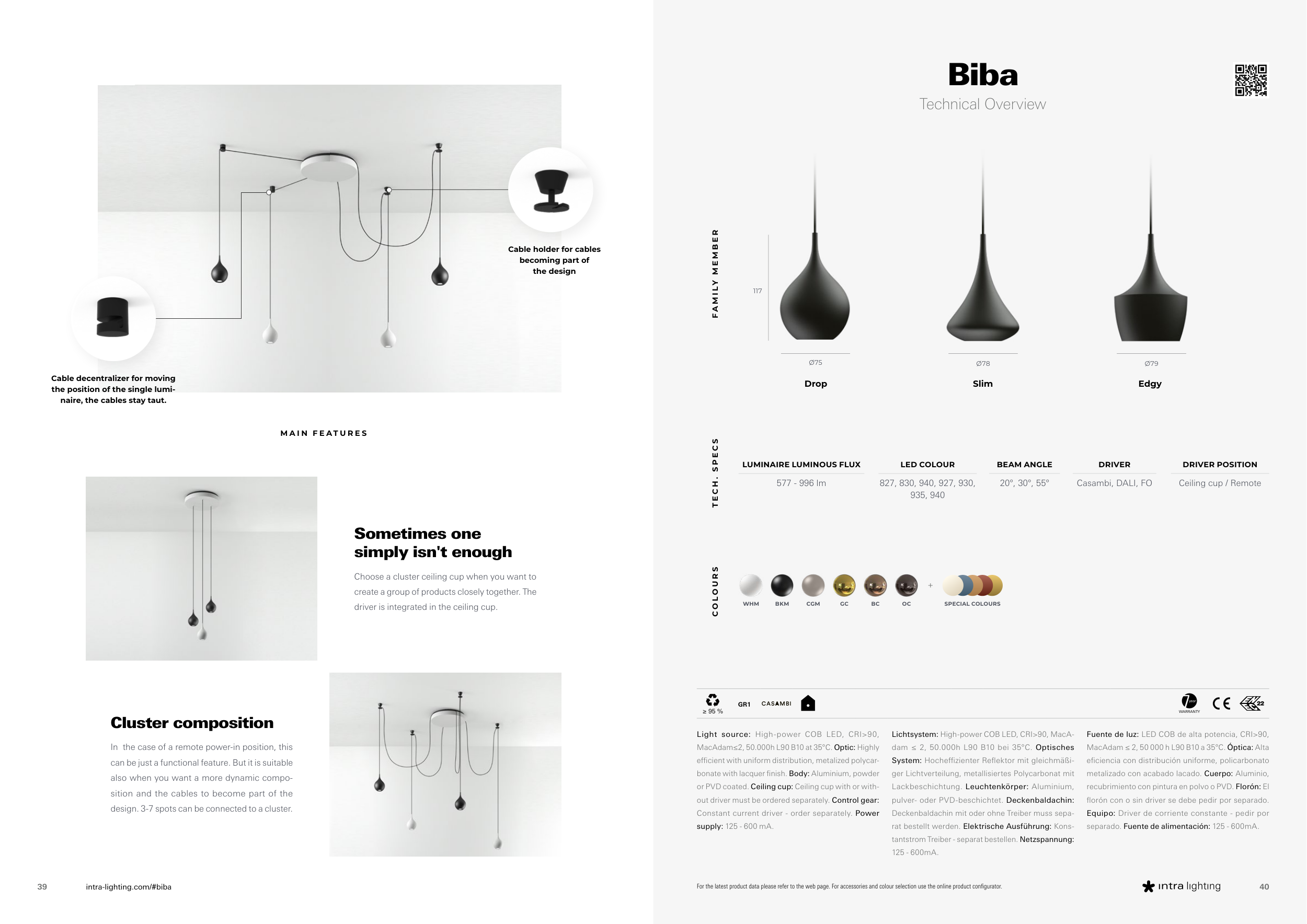

Biba
Technical Overview
F A M I LY M E M B E R
T E C H . S P E C S
577 - 996 lm
LUMINAIRE LUMINOUS FLUX
827, 830, 940, 927, 930,
935, 940
LED COLOUR
Casambi, DALI, FO
Ceiling cup / Remote
DRIVER
DRIVER POSITION
20°, 30°, 55°
BEAM ANGLE
Drop
Slim
Edgy
117
Ø75
Ø78
Ø79
C O L O U R S
≥ 95 %
GR1
year
WARRANTY
WHM
BKM
CGM
GC
BC
OC
Light source: High-power COB LED, CRI>90,
MacAdam≤2, 50.000h L90 B10 at 35°C. Optic: Highly
efficient with uniform distribution, metalized polycar-
bonate with lacquer finish. Body: Aluminium, powder
or PVD coated. Ceiling cup: Ceiling cup with or with-
out driver must be ordered separately. Control gear:
Constant current driver - order separately. Power
supply: 125 - 600 mA.
SPECIAL COLOURS
intra-lighting.com/#biba
Lichtsystem: High-power COB LED, CRI>90, MacA-
dam ≤ 2, 50.000h L90 B10 bei 35°C. Optisches
System: Hocheffizienter Reflektor mit gleichmäßi-
ger Lichtverteilung, metallisiertes Polycarbonat mit
Lackbeschichtung. Leuchtenkörper: Aluminium,
pulver- oder PVD-beschichtet. Deckenbaldachin:
Deckenbaldachin mit oder ohne Treiber muss sepa-
rat bestellt werden. Elektrische Ausführung: Kons-
tantstrom Treiber - separat bestellen. Netzspannung:
125 - 600mA.
Fuente de luz: LED COB de alta potencia, CRI>90,
MacAdam ≤ 2, 50 000 h L90 B10 a 35°C. Óptica: Alta
eficiencia con distribución uniforme, policarbonato
metalizado con acabado lacado. Cuerpo: Aluminio,
recubrimiento con pintura en polvo o PVD. Florón: El
florón con o sin driver se debe pedir por separado.
Equipo: Driver de corriente constante - pedir por
separado. Fuente de alimentación: 125 - 600mA.
