For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#hexagon
Module dimensions (mm)
2 modules / joint
120°
1124 (44-1/4”)
844 (33-1/4”)
Joint types
1404 (55-1/4”)
1684 (66-1/4”)
120°
Joint MS 2
3 modules / joint
Joint MS 3
Module dimensions (mm)
2 modules / joint
120°
1124 (44-1/4”)
844 (33-1/4”)
Joint types
1404 (55-1/4”)
1684 (66-1/4”)
120°
Joint MS 2
3 modules / joint
Joint MS 3
Suspension points
with 2 or 3 modules
joints
SOP / DPR optics
P1
P1
Multiple power-in
position
M O D U L E D I M E N S I O N S A N D J O I N T T Y P E S
Get inspired and draw your light. Integrate it in
to the space and give your visitors a reason to
look up. Hexagon offers maximum application
possibilities.
Be creative
in compositions

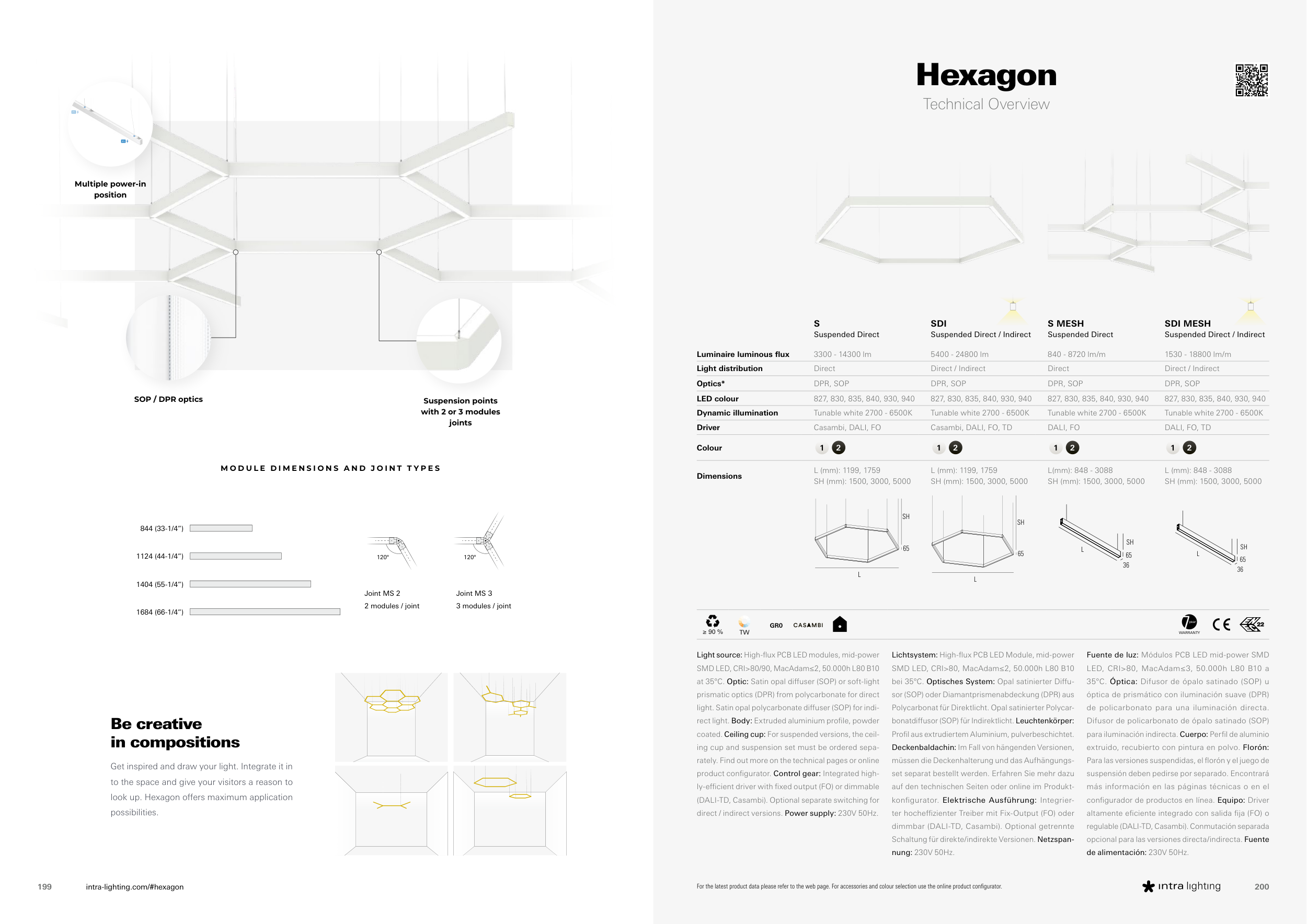

Hexagon
Technical Overview
S
SDI
S MESH
SDI MESH
Suspended Direct
Suspended Direct / Indirect
Suspended Direct
Suspended Direct / Indirect
Luminaire luminous flux
3300 - 14300 lm
5400 - 24800 lm
840 - 8720 lm/m
1530 - 18800 lm/m
Light distribution
Direct
Direct / Indirect
Direct
Direct / Indirect
Optics*
DPR, SOP
DPR, SOP
DPR, SOP
DPR, SOP
LED colour
827, 830, 835, 840, 930, 940
827, 830, 835, 840, 930, 940
827, 830, 835, 840, 930, 940
827, 830, 835, 840, 930, 940
Dynamic illumination
Tunable white 2700 - 6500K
Tunable white 2700 - 6500K
Tunable white 2700 - 6500K
Tunable white 2700 - 6500K
Driver
Casambi, DALI, FO
Casambi, DALI, FO, TD
DALI, FO
DALI, FO, TD
Colour
1
2
1
2
1
2
1
2
Dimensions
L (mm): 1199, 1759
SH (mm): 1500, 3000, 5000
L (mm): 1199, 1759
SH (mm): 1500, 3000, 5000
L(mm): 848 - 3088
SH (mm): 1500, 3000, 5000
L (mm): 848 - 3088
SH (mm): 1500, 3000, 5000
65
SH
L
65
SH
L
L
36
65
SH
L
36
65
SH
Light source: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L80 B10
at 35°C. Optic: Satin opal diffuser (SOP) or soft-light
prismatic optics (DPR) from polycarbonate for direct
light. Satin opal polycarbonate diffuser (SOP) for indi-
rect light. Body: Extruded aluminium profile, powder
coated. Ceiling cup: For suspended versions, the ceil-
ing cup and suspension set must be ordered sepa-
rately. Find out more on the technical pages or online
product configurator. Control gear: Integrated high-
ly-efficient driver with fixed output (FO) or dimmable
(DALI-TD, Casambi). Optional separate switching for
direct / indirect versions. Power supply: 230V 50Hz.
≥ 90 %
TW
GR0
year
WARRANTY
Lichtsystem: High-flux PCB LED Module, mid-power
SMD LED, CRI>80, MacAdam≤2, 50.000h L80 B10
bei 35°C. Optisches System: Opal satinierter Diffu-
sor (SOP) oder Diamantprismenabdeckung (DPR) aus
Polycarbonat für Direktlicht. Opal satinierter Polycar-
bonatdiffusor (SOP) für Indirektlicht. Leuchtenkörper:
Profil aus extrudiertem Aluminium, pulverbeschichtet.
Deckenbaldachin: Im Fall von hängenden Versionen,
müssen die Deckenhalterung und das Aufhängungs-
set separat bestellt werden. Erfahren Sie mehr dazu
auf den technischen Seiten oder online im Produkt-
konfigurator. Elektrische Ausführung: Integrier-
ter hocheffizienter Treiber mit Fix-Output (FO) oder
dimmbar (DALI-TD, Casambi). Optional getrennte
Schaltung für direkte/indirekte Versionen. Netzspan-
nung: 230V 50Hz.
Fuente de luz: Módulos PCB LED mid-power SMD
LED, CRI>80, MacAdam≤3, 50.000h L80 B10 a
35°C. Óptica: Difusor de ópalo satinado (SOP) u
óptica de prismático con iluminación suave (DPR)
de policarbonato para una iluminación directa.
Difusor de policarbonato de ópalo satinado (SOP)
para iluminación indirecta. Cuerpo: Perfil de aluminio
extruido, recubierto con pintura en polvo. Florón:
Para las versiones suspendidas, el florón y el juego de
suspensión deben pedirse por separado. Encontrará
más información en las páginas técnicas o en el
configurador de productos en línea. Equipo: Driver
altamente eficiente integrado con salida fija (FO) o
regulable (DALI-TD, Casambi). Conmutación separada
opcional para las versiones directa/indirecta. Fuente
de alimentación: 230V 50Hz.
